A-3-2 NQ as Modbus Slave and ModScan (Master-Simulation
Software)
To perform a successful communication proceed as follows.
1 Right-click the Nodes folder and click Add....

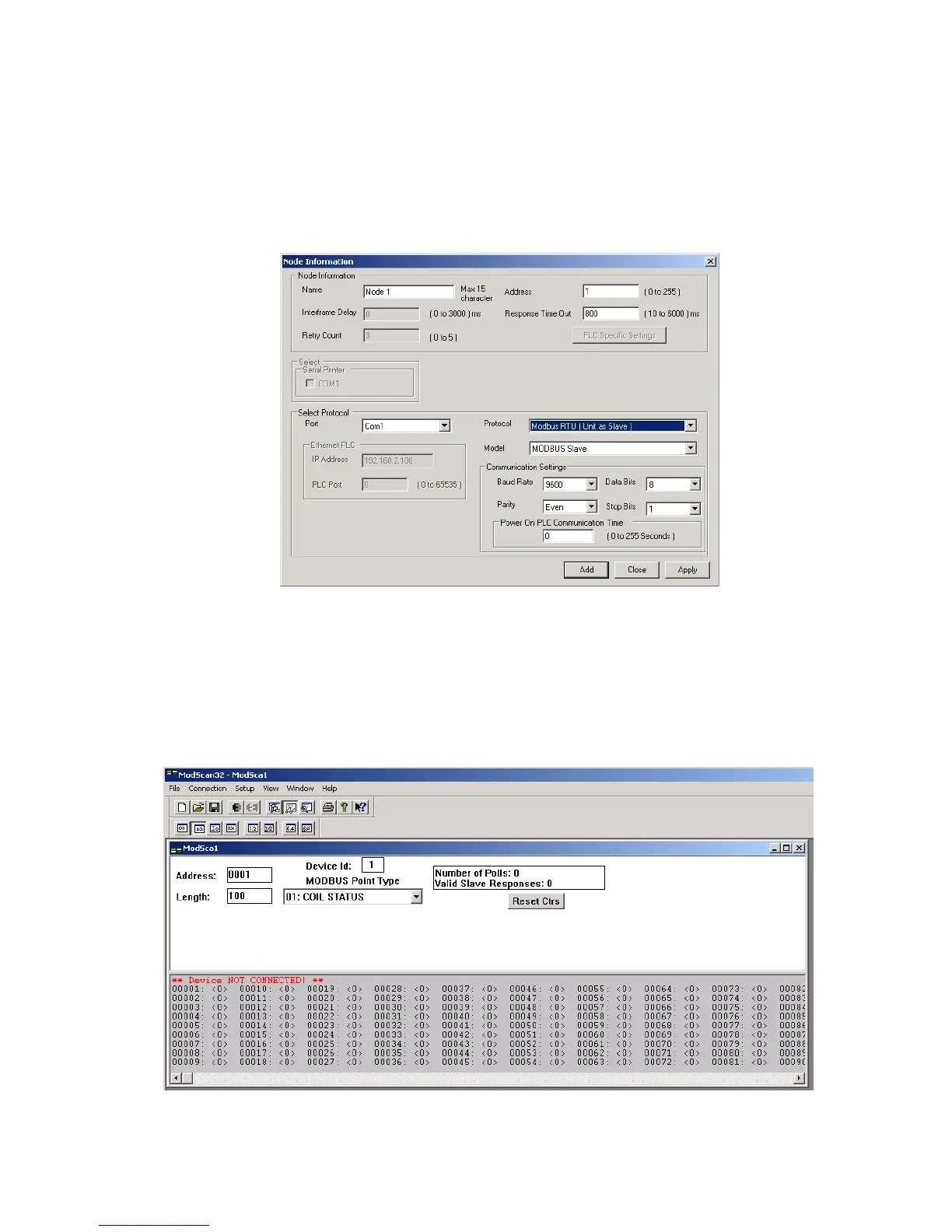

2 Set all data as shown in the screenshot.
(Note that the scan time of the master is set lower then the response Time out (default 800ms))
3 Create PLC tag with HR40001.
4Add a Data Entry object with tag address HR40001 on screen1.
5 Download the application and firmware to the NQ-Series.
6 Open ModScan.
7Click New on File menu.
