Example application Section 4-3
35
5 Click COM1 tab.

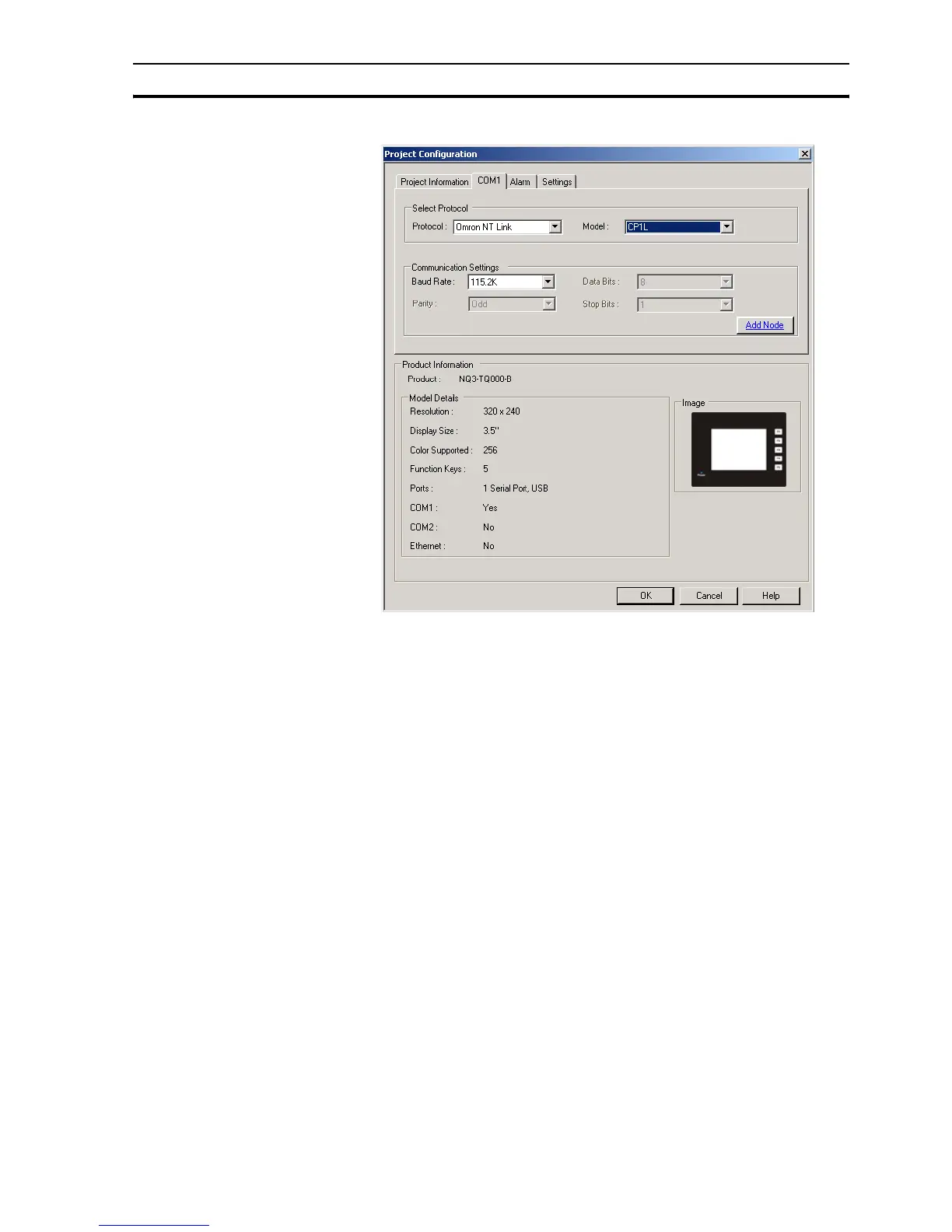

Figure 4.10: COM1
6 Enter the following communication settings:
• Protocol: Omron NT Link
• Model: CP1L
• Baud Rate: 115.2K
•Data Bits: 8
•Parity: Odd
•Stop Bits: 1
7 Click Add Node.
8 Click Alarm tab.
