Uploading Section 5-2
54
5-2-2 Uploading programs
To upload a program from the NQ-Series proceed as follows.
1Click Upload ( ).

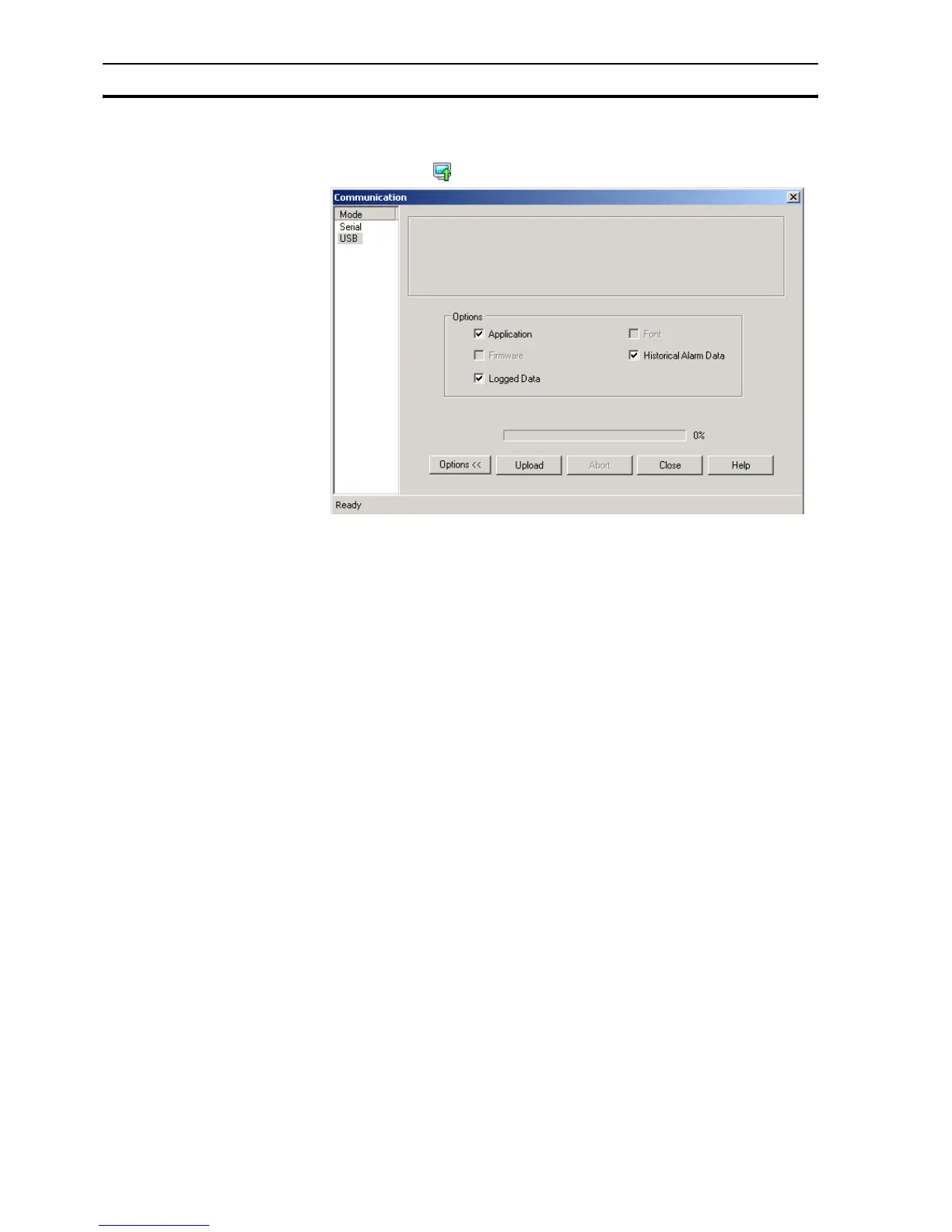

Figure 5.3: Upload communication
2 Select the required options and settings.
3Click Upload.
5-2-3 Uploading errors
The following errors can occur during uploading programs:
• NQ-Series is not responding
• Port is either busy or does not exist
If the NQ-Series is not responding this indicates that no communication has
been established between the PC and the NQ-Series. Please check the
following:
• The NQ-Series is connected to the PC.
• The NQ-Series is connected to the selected port (serial or USB).
• The port is working properly.
• The NQ-Series is not powered down.
