Omron NS10-TV Series

3-8 Installing the Controller Link Interface Unit
3-50

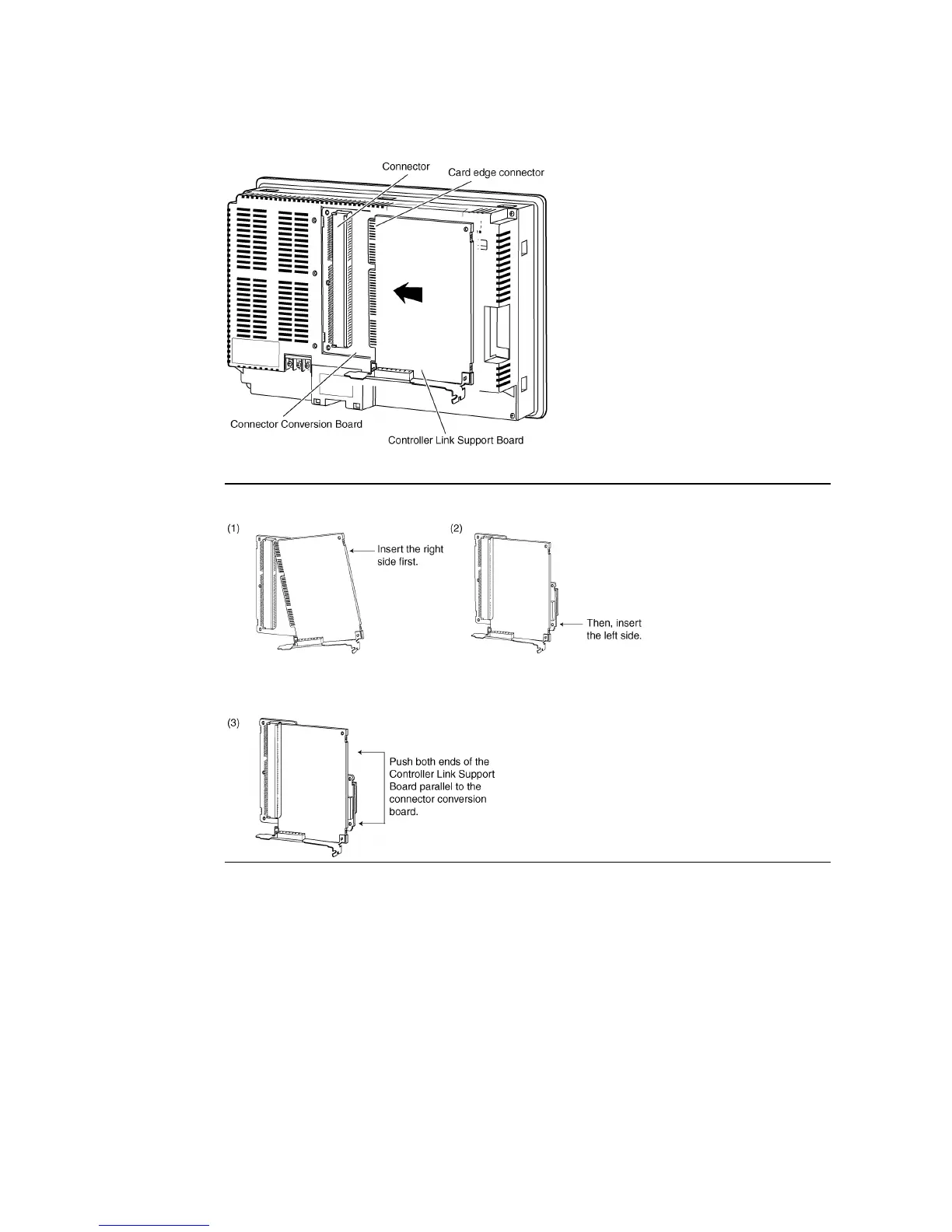

3. Insert the Controller Link Support Board’s card edge connector into the Connector
Conversion Board’s connector.
Reference Follow the steps given below if it is hard to insert the card edge connector to the con-
nector on the connector conversion board.
