Omron NS10-TV Series

Appendix 4 Using NT-AL001 Converters
A-33
A-4-5 Pin Arrangement
The converter unit has a terminal block for an RS-422A/485 interface connection and a
connector for an RS-232C interface connection.

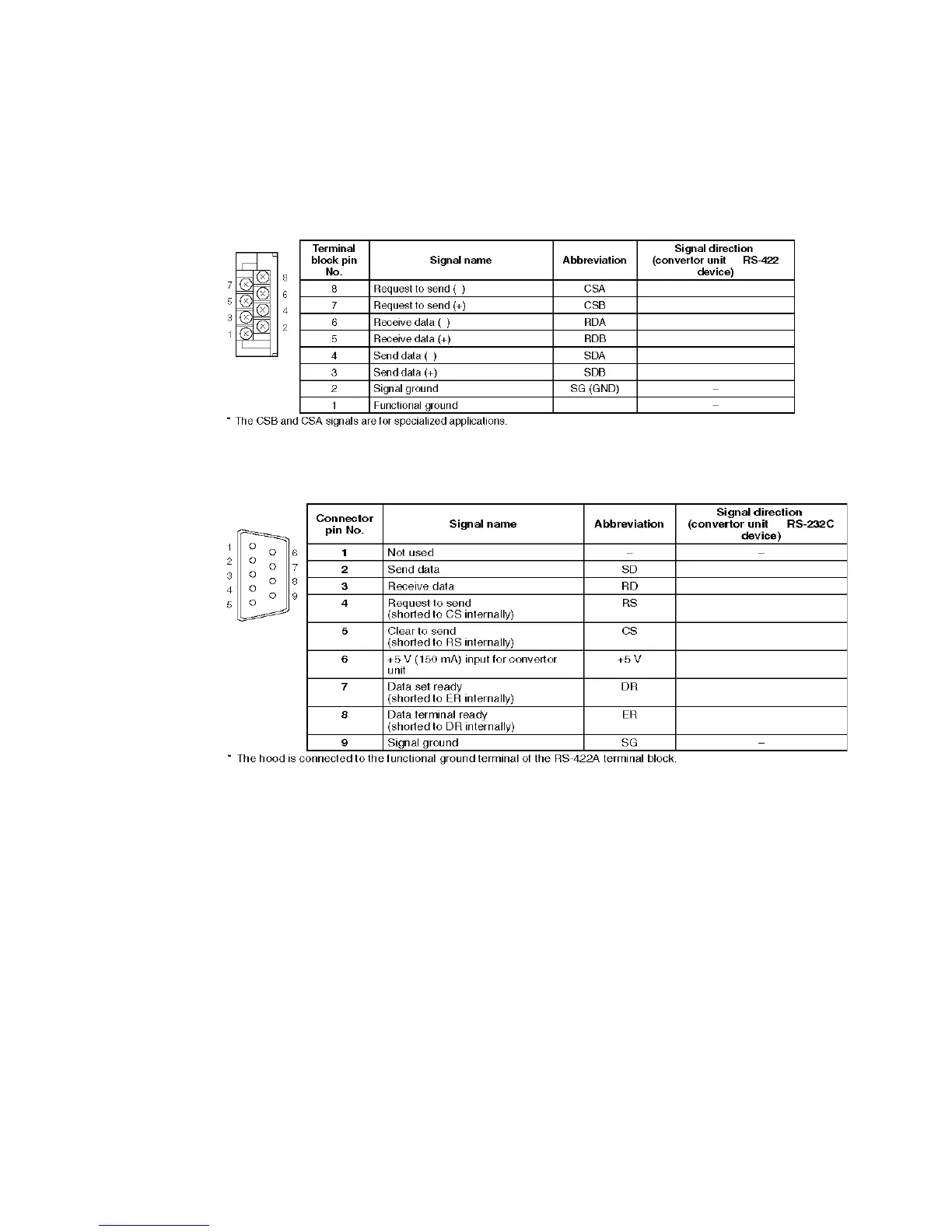

The pin arrangements for the RS-422A/485 terminal block and the RS-232C connector
are as follows.
RS-422A/485 Terminal Block
RS-232C Connector
