6-3 PT Settings
6-31
2. After completing the setting, press the Write Button. The setting will be saved.
6-3-14 Starting the Ladder Monitor from Alarm/Event Summary and His-
tory (NS15/12/10/8 Only)

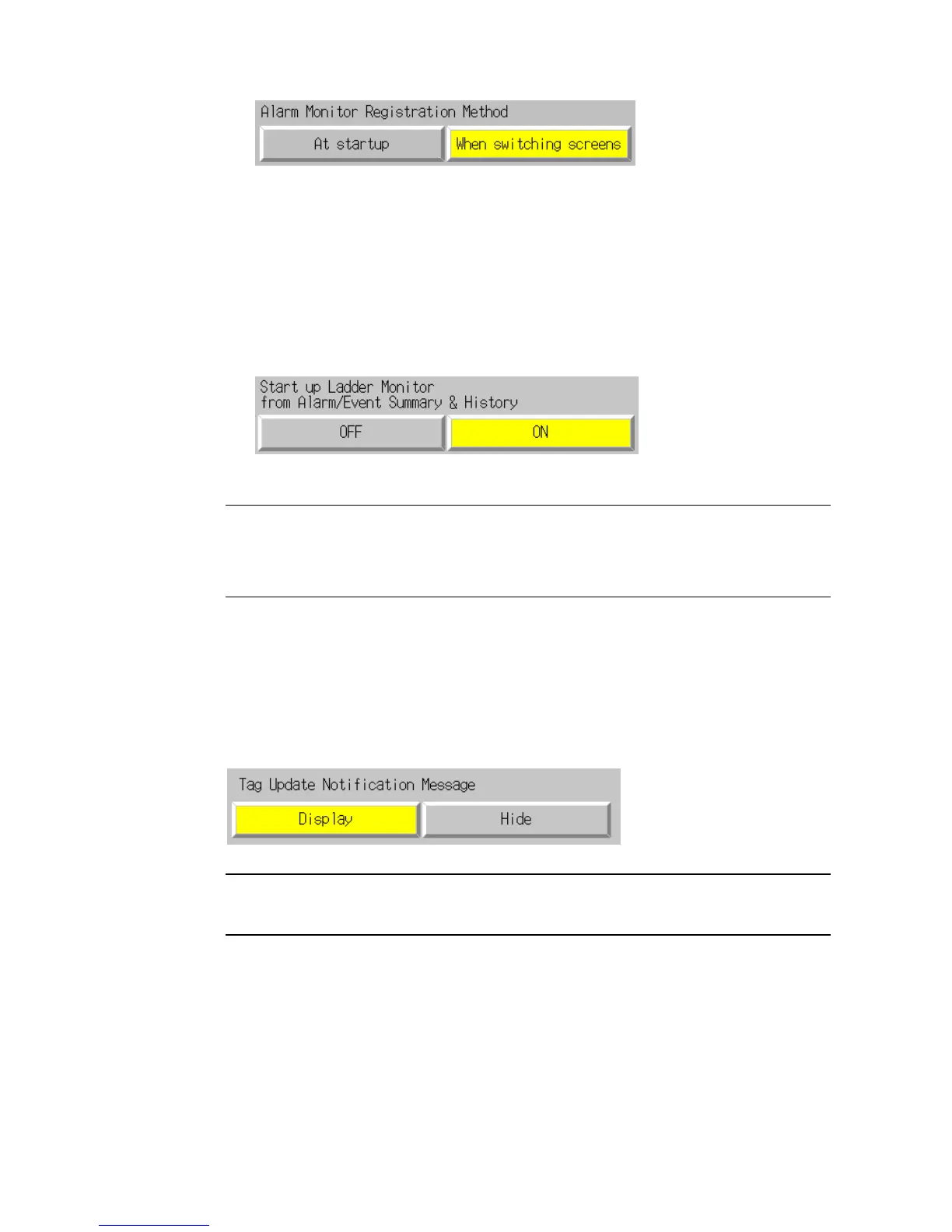

You can start the Ladder Monitor if an alarm or event is selected in the Alarm/Event Sum-
mary and History.
If ON is selected, a message to confirm whether to start the Ladder Monitor will be displayed
when an alarm or event is selected in the Alarm/Event Summary and History.
1. Select either ON or OFF for starting Ladder Monitor from alarm/event summary and his-
tory.
2. After completing the setting, press the Write Button. The setting will be saved.
Reference
• Refer to the NS-series PT Programming Manual for information on the alarm/event
summary and history.
• With Ladder Monitor version 3.0 or higher, the system will automatically search for the
communications address of the selected alarm or event when the Ladder Monitor
starts.
6-3-15 Setting the Tag Update Notification Message
If tags are used by projects in the NS-series PT, tags will be automatically verified when lad-
der data is downloaded to the host. Set whether to display a confirmation message before
the system starts to verify the tags.
Make the setting on the PT Operation Tab Page in the System Menu.
1. Select either Display or Hide for the tag update notification message setting.
Reference
• Refer to 6-11 Verifying Tags for information on verifying tags.
•
Tags can be used when connection is made to a CJ2H-CPU
@@
-EIP PLC using
EtherNet/IP.
6-3-16 Time to Switch to System Menu (NS12, NS10, NS8, or NS5)
With a NS12, NS10, NS8, or NS5 PT, the time required to switch to the System Menu when
two of the four screen corners are pressed can be set. A longer time can be set to help pre-
vent unintentional access to the System Menu.
The time to switch to the System Menu can be set to between 0 and 5 s.
Set the time using the following procedure from the PT Settings Tab Page in the System
To Next Page
