Omron NS10-TV Series

Appendix 4 Using NT-AL001 Converters
A-34

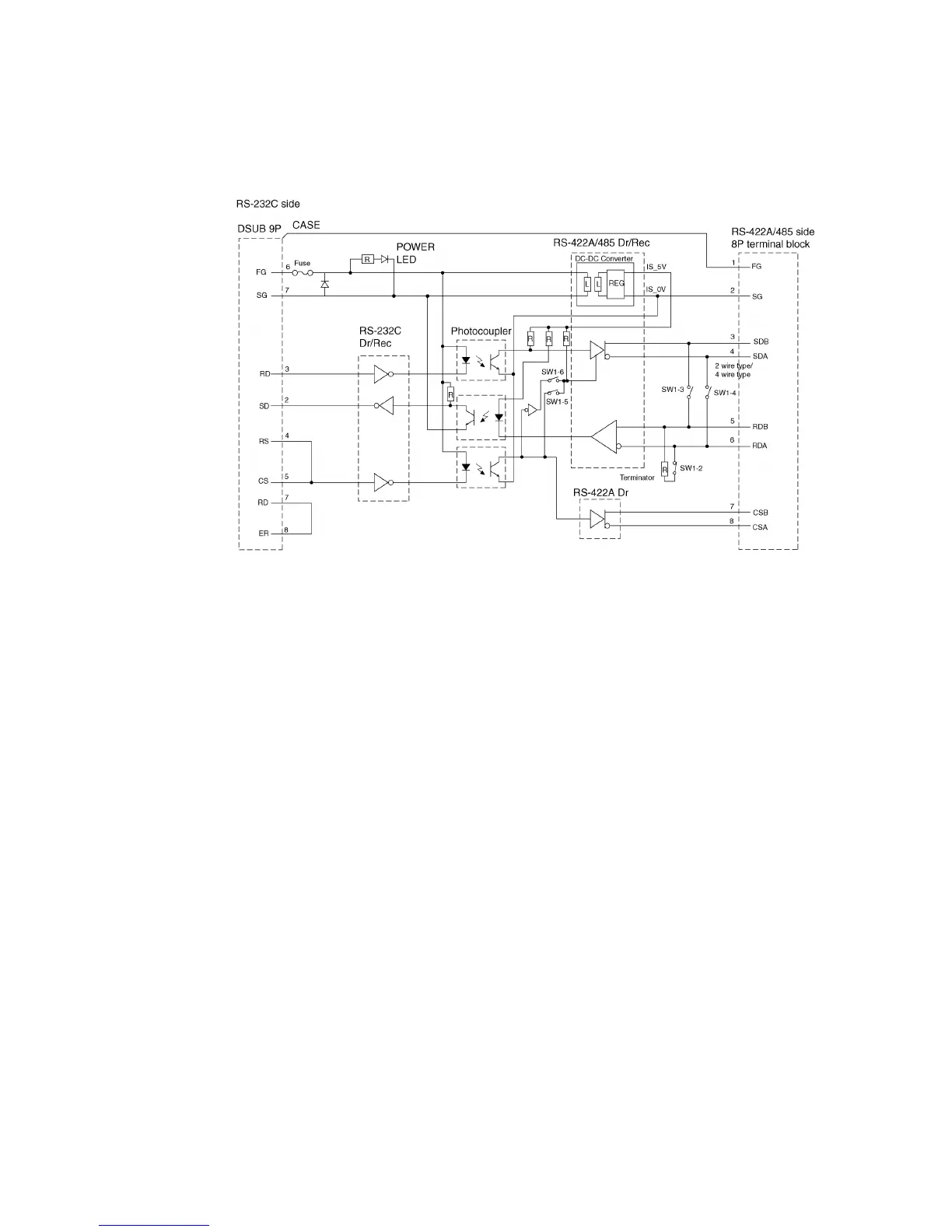

A-4-6 Block Diagram
A diagram showing the internal blocks of the converter unit is shown below. Refer to this
diagram when making cables yourself, or when connecting devices with special interfaces.
