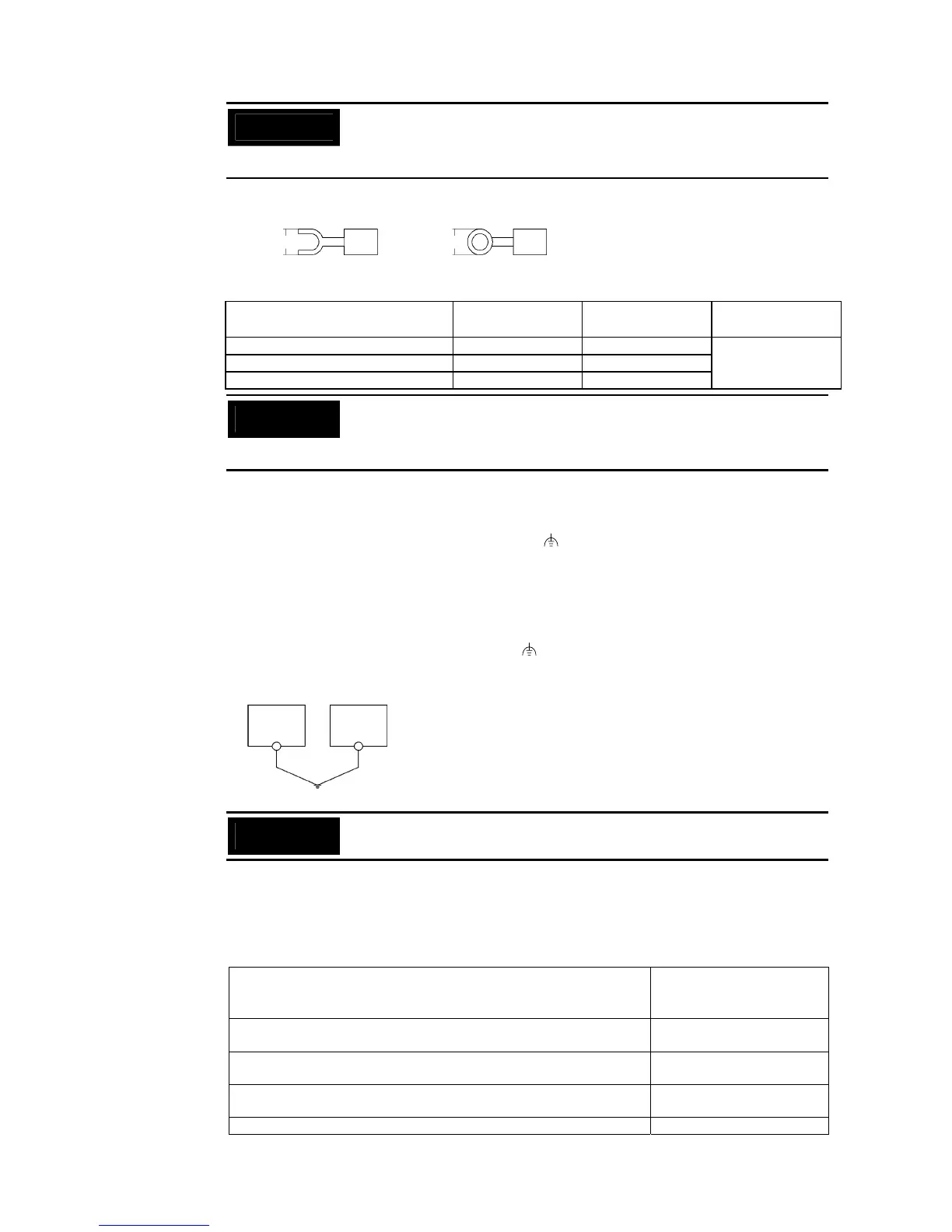

3-1 Installing the PT
3-8
Precautions
for Safe Use
Connect power to the power terminal block using twisted-pair power lines with a
cross-sectional area of at least 2 mm
2
and always using M3.5 crimp terminals.
The correct tightening torque for the terminal block is 0.8 Nâ‹…m. Tighten terminal
block screws properly.
Forked type
Round type
7 mm max.
7 mm max.
• Recommended Products
Manufacturer
Model number of
forked terminals
Model number of
round terminals
Applicable power
lines (twisted-pair)
J.S.T. Mfg. Co., Ltd. 2-YS3A 2-3.5
Fuji Terminal Industry Co., Ltd. 2-YAS3.5 V2-S3.5
Nichifu Terminal Industries Co., Ltd. 2Y-3.5 2-3.5
2.0 to 2.63 mm
2
Precautions
for Safe Use
When surge noise occurs in the DC power supply, connect a Transistor Voltage
Suppressor (TVS) between the 24-V and 0-V DC terminals.
Recommended TVS model: 1.5KE33CA
Manufacturers: Vishay Intertechnology Inc, ST Microelectronics
3-1-5 Wiring the Ground Wire
The PT is provided with a functional ground (FG: ) terminal.
Wire the FG terminal according to the following conditions.
1. Ground according to Figure when there is difference in potential between the PT and
host. Do not ground the functional ground of the PT if it is far from the host and one-point
grounding is difficult.
2. Do not ground the functional ground (FG: ) of the PT if it is mounted to the same panel
as devices that generate noise, such as motors and inverters.
PT Host
One-point
grounding
Precautions
for Correct Use
Ground correctly to prevent malfunctions caused by noise.
3-1-6 Peripheral Device Connection Limitations
Select one of the following combinations when devices requiring power supply are con-
nected to port A, port B, and an Expansion Interface Unit on the PT. Use a 5-V Bar Code
Reader with a current consumption of 250 mA or the equivalent.
Port A and B connection combinations Expansion Interface Unit
(NS-CA001, NS-CA002,
NS-CLK21)
When a Bar Code Reader and the NS-AL002 are connected to ports
A and B at the same time
Cannot be used
When a Bar Code Reader and the CJ1W-CIF11 are connected to
ports A and B at the same time
Cannot be used
When a Bar Code Reader and the NT-AL001 are connected to ports
A and B at the same time
Cannot be used
When the CJ1W-CIF11 and CJ1W-CIF11 are connected to
p
orts A Can be used
