6-8 Special Screens
6-64
Reference Device monitor, Communication Test, Video Configuration, USB Device List,
Display Capture Data, and PLC Data Trace are not external applications. The screen
in the System Menu switches when you press the START button with one of these
selected, but the NS-series PT does not reset.
• For information on the Ladder Monitor, refer to the Ladder Monitor Operation Manual
(Cat. No. V082). The Ladder Monitor Operation Manual is provided as a PDF file with
the CX-Designer.
CX-Designer
CD-ROM: \Utility\English\LadderMonitorFunc\V082.pdf
• For details on programming functions, refer to the NS-Series PT Programming Manual.

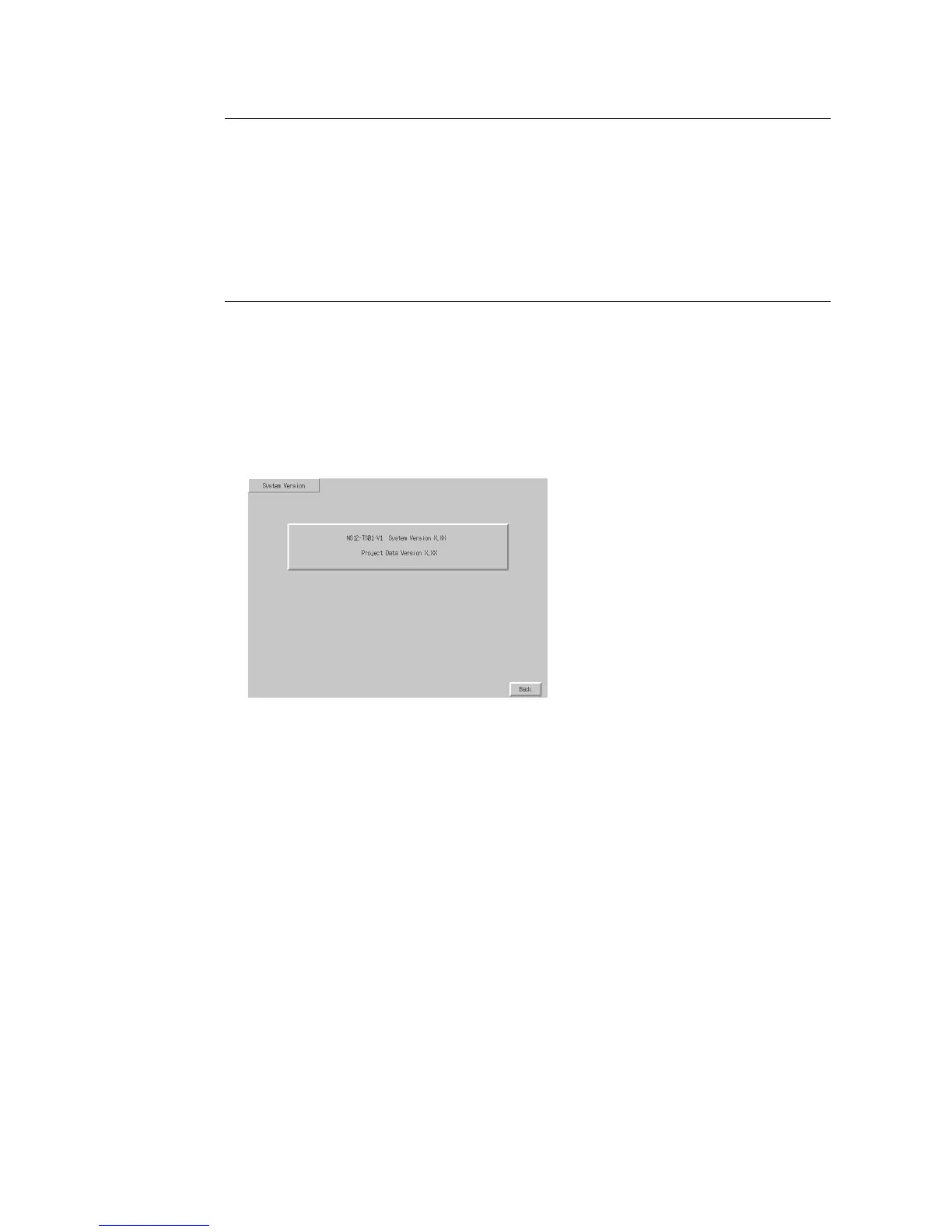

6-8-11 Version Display
This function displays information on the PT version.
Display the Version Display Screen by using operations from the Special Screen Tab Page
in the System Menu, as follows:
1. Press the System Version Button to switch to the Version Display Screen.
2. The product model and version will be displayed.
3. Press the Back Button to return to the Special Screen.
6-8-12 PLC Data Trace (NS15, NS12, NS10, and NS8 Only)
The PLC Data Trace function uses the data trace function within a CS/CJ-series PLC (CPU
Unit) and displays the results of the PLC’s data trace at the PT.
After receiving the data trace execution command from the NS-series PT and establishing
the specified trigger condition, the PLC reads the specified bit’s status or present value of
the specified word according to the sampling conditions, and stores the sampled data in the
CPU Unit’s Trace Memory.
The PT reads the data stored in the PLC and displays that data on the screen as a time
chart.
The PLC Data Trace function can be used in the NS15, NS12, NS10, and NS8 PTs only.
