Omron NS10-TV Series Setup Manual

Appendix 5 Preparing Connecting Cables
A-40

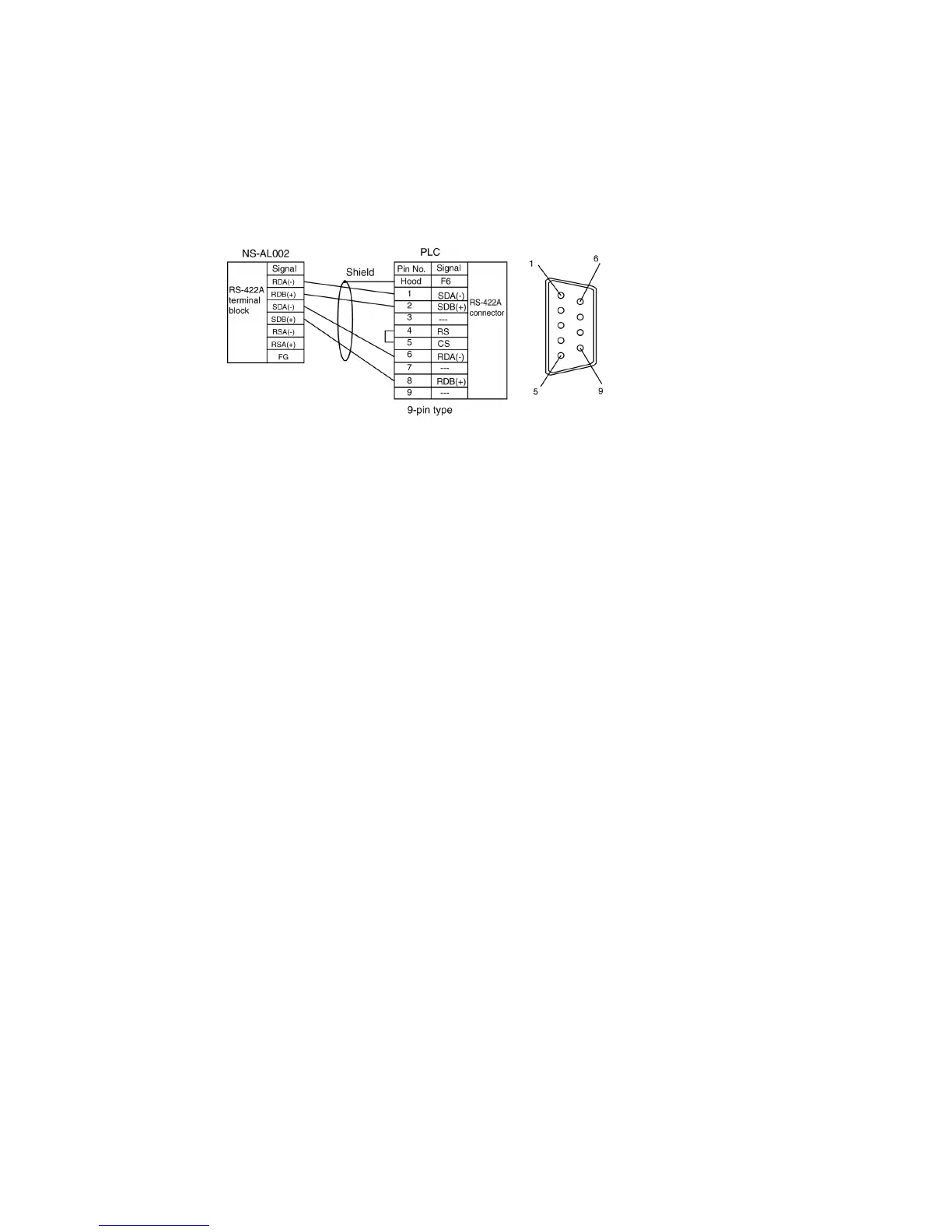

 Wiring Layout to CVM1/CV-series CPU Units
Applicable Units:
CV500-CPU01-V1, CV1000-CPU01-V1, CV2000-CPU01-V1,
CVM1-CPU01-V@, CVM1-CPU11-V@, CVM1-CPU21-V@
CVM1/CV Series CPU Units without the -V@ suffix cannot be connected by any commu-
nications method.
For details on processing shielded cable, refer to A-3-6 Handling the Shield on RS-
422A/485 Cables.
