3-7 Installing the Video Input Unit
3-36

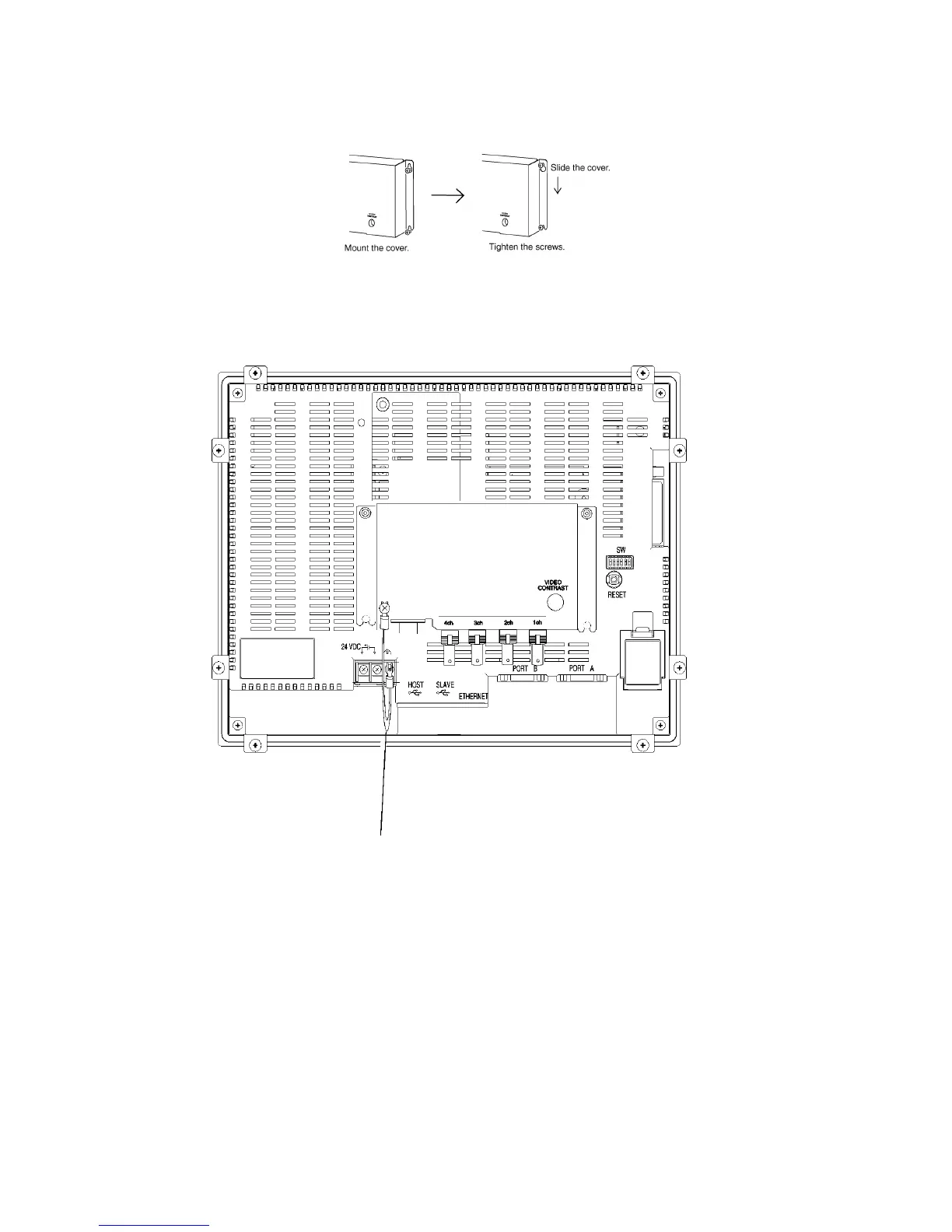

Slide the cover downward and tighten the screws.
Connecting the Cable
Connect the functional ground terminal of the PT and the cover with the cable to prevent
malfunction due to noise.
Connect with the cable provided.
