Omron NS7 Series User Manual

3-2 Starting the PT
3-10

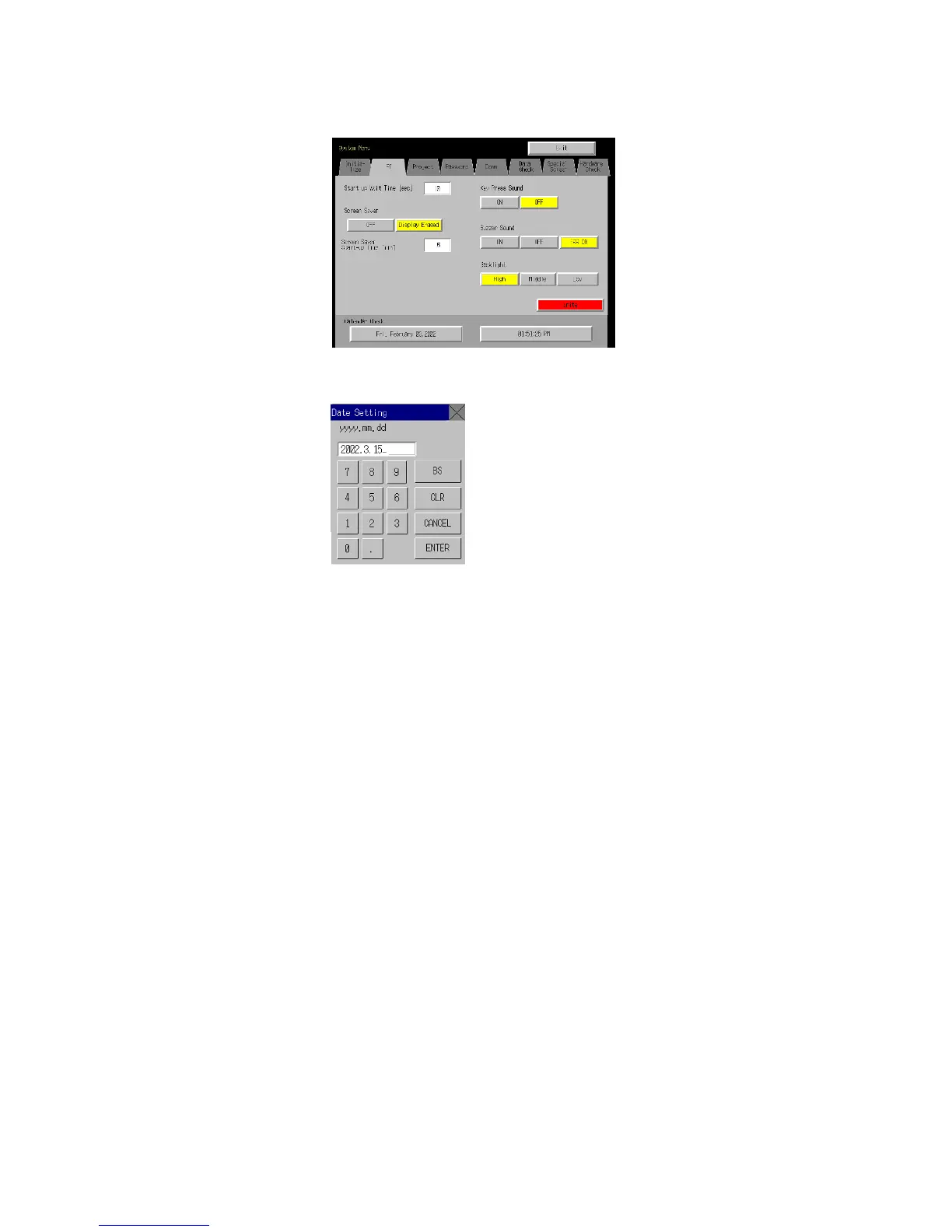

f) Next, select the PT Tab. Set the time and date.
g) Press the date display area under the heading Date and Time. A dialog box will be displayed. Input
the date in yyyy/mm/dd format.
Example: Input March 15, 2002 as 2002.3.15.
h) Press the time display area under the heading Date and Time. A dialog box will be displayed. Input
the time using a 24-hour clock in hours/minutes/seconds format.
Example: Input 06:01:01 p.m. as 18.1.1.
The Write Button will be displayed, but the time and date settings will be enabled immediately after
they have been input in the dialog box.
This completes the procedure required to start the PT for the first time. Now transfer the project
data. Refer to 3-6 Using Memory Cards and Section 10 Transferring Data to and from PTs in the
NS-Designer Operation Manual.
