4-1 1:1 Host Connection
4-7

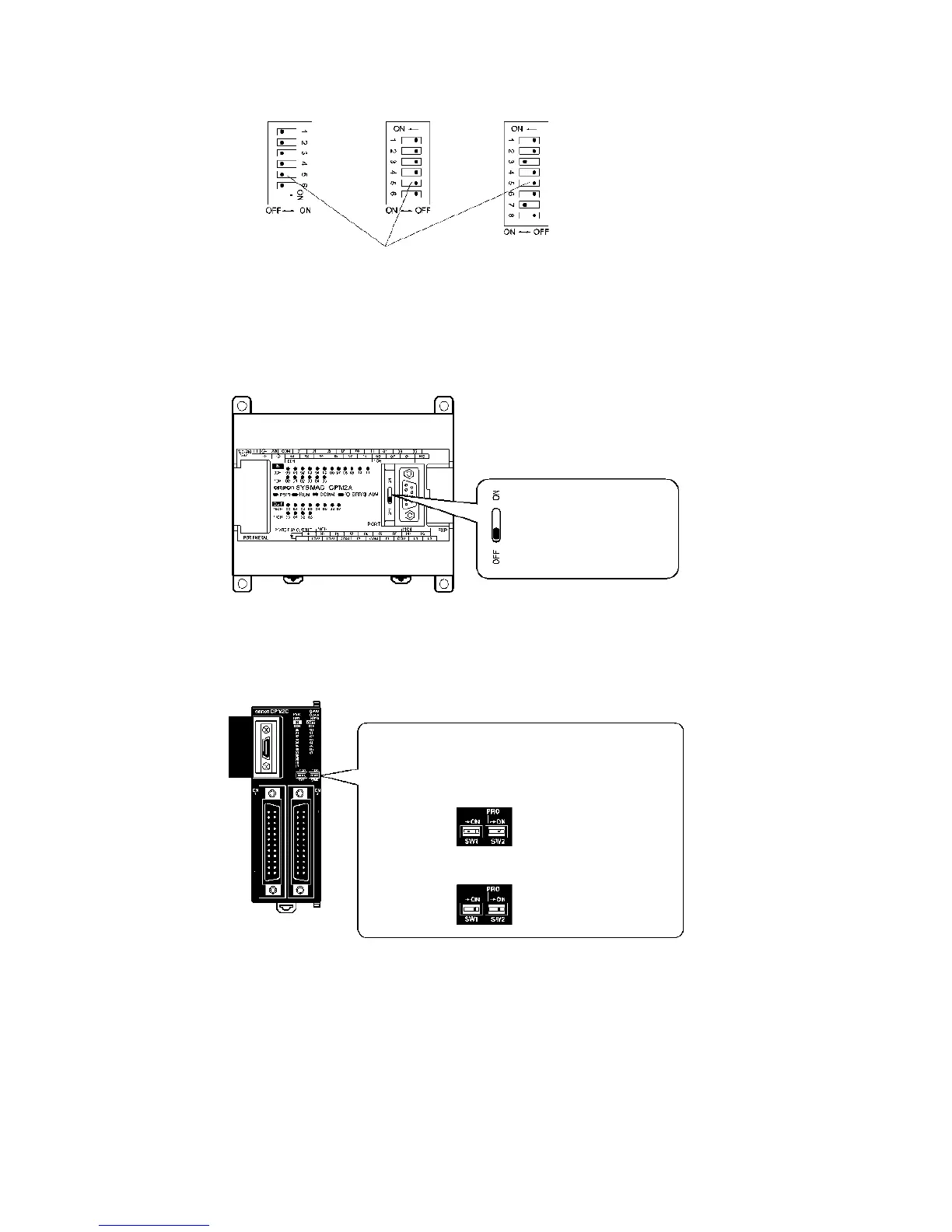

Setting the CPM2A Front Panel DIP Switch
When using a CPM2A, set the DIP switch on the front panel to enable the PLC Setup Area
(Data Memory) settings, as follows:
Setting the CPM2C Front Panel DIP Switches
When using a CPM2C, set the switches on the front panel to enable the PLC Setup Area
(Data Memory) settings, as follows:
C200HX/HG/HE(-Z)
CQM1
RS-232C Communications Conditions Setting
Set pin 5 of the DIP switch to OFF to enable the
PLC Setup Area settings.
CQM1H
Set the communications
conditions setting switch to
OFF (lower position).
Set the switches according to whether the peripheral port or
the built-in RS-232C port is used, as follows:
• Connecting the PT to the peripheral port
• Connecting the PT to the built-in RS-232C port
(The peripheral port is used to connect devices that re-
quire non-standard communications settings.)
SW1: OFF
SW2: ON
SW1: OFF
SW2: OFF
• Connecting the PT to the built-in RS-232C port
(The peripheral port is used to connect the Programming
Console.)
