2-126
H Connector Terminal Block Cables (XW2Z–jJ-B15) and Connector
Terminal Blocks (XW2B-20Gj)
Of the control I/O signals (CN1), only those related to positioning control are connected to a Terminal
Block. Use a Connector Terminal Block to save wiring work when using the W-series Servo Driver with
the FNY-NS115 MECHATROLINK–II Interface Unit attached to it. This also saves more wiring space
than when using an XW2B-50G5 Connector Terminal Block.
Connector Terminal Block Cables (XW2Z-jJ-B15)
D Cables
XW2Z-jJ-B15
Model Length (L) External sheath
diameter
Weight
XW2Z-100J-B15 1 m
8.0 dia.
Approx. 0.1 kg
XW2Z-200J-B15 2 m Approx. 0.2 kg

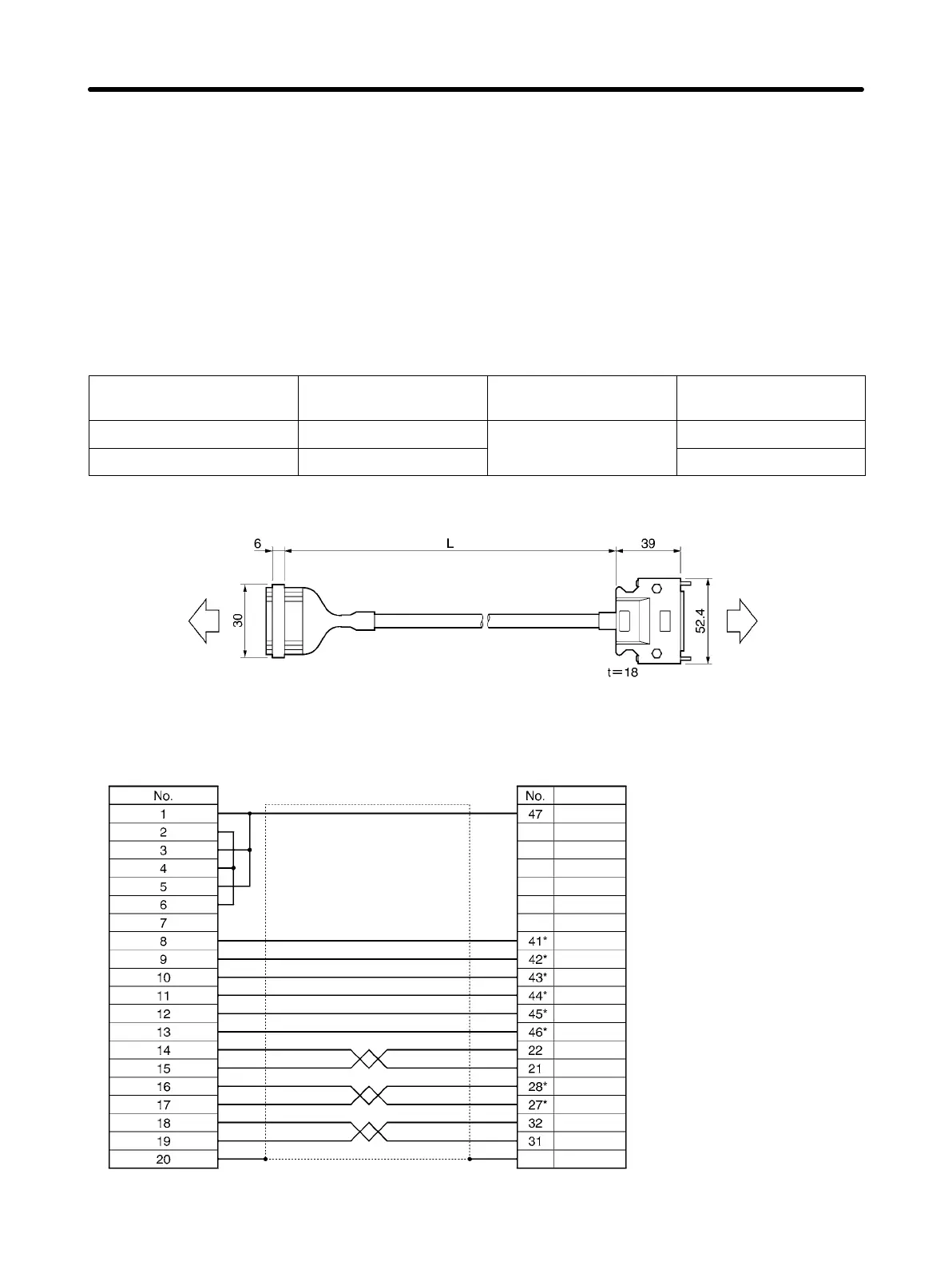

D Connection Configuration and External Dimensions
Connector
Terminal Block
Servo Driver
R88D-WTj
XW2B-20G4
XW2B-20G5
XW2D-20G6
D Wiring
Connector
Terminal Block
Servo Driver
Shell
+24VIN
DEC
POT
EXT1
EXT2
EXT3
BATGND
BAT
BKIRCOM
BKIR
ALMCOM
ALM
FG
NOT
Servo Driver Connector
Connector plug:
10150-3000VE (Sumitomo 3M)
Connector case:
10350-52A0-008 (Sumitomo 3M)
Terminal Block Connector
Connector socket:
XG4M-2030 (OMRON)
Strain relief:
XG4T-2004 (OMRON)
Note Functions can be allocated by
the user to pin numbers with
asterisks. Allocate functions
to suit your application.
Symbol
Cable
AWG28
× 3P+AWG28 × 7C UL2464
Standard Models and Specifications Chapter 2
