H Connector Terminal Blocks (XW2B-20Gj)
Three models of Connector Terminal Block are available. Select an appropriate model depending on
wiring methods and screw sizes.
D Terminal Blocks
XW2B-20G4
The XW2B-20G4 is an M3 screw terminal block.

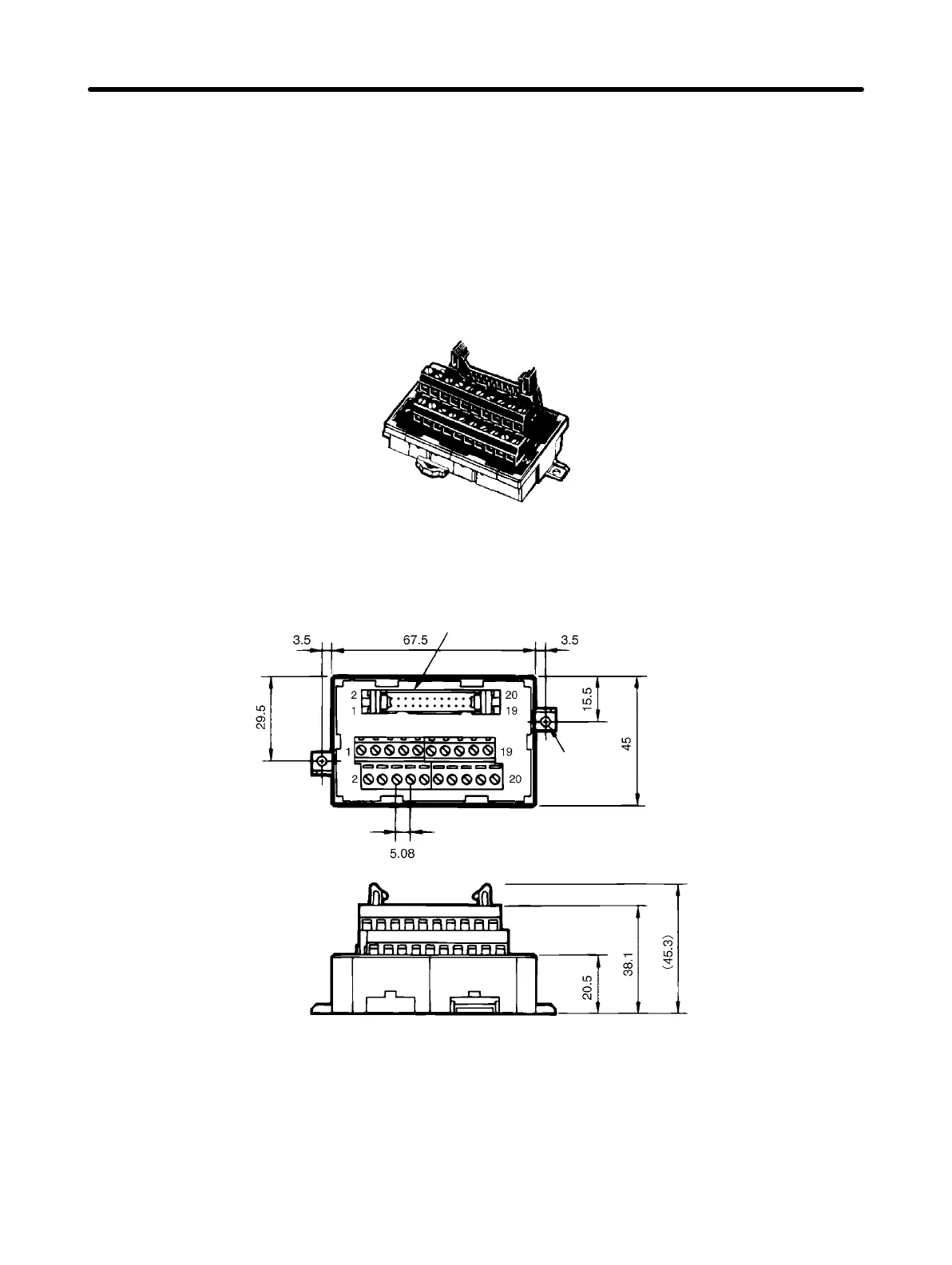

D External Dimensions
Flat cable connector
(MIL connector)
Two, 3.5 dia.
Note The terminal pitch is 5.08 mm.
Precautions
• Use 0.30 to 1.25 mm
2
wire (AWG22 to AWG16).
• The wire inlet for M3 screw terminal blocks is 1.8 × 2.5 mm (vertical × horizontal).
Standard Models and Specifications Chapter 2
