2-136

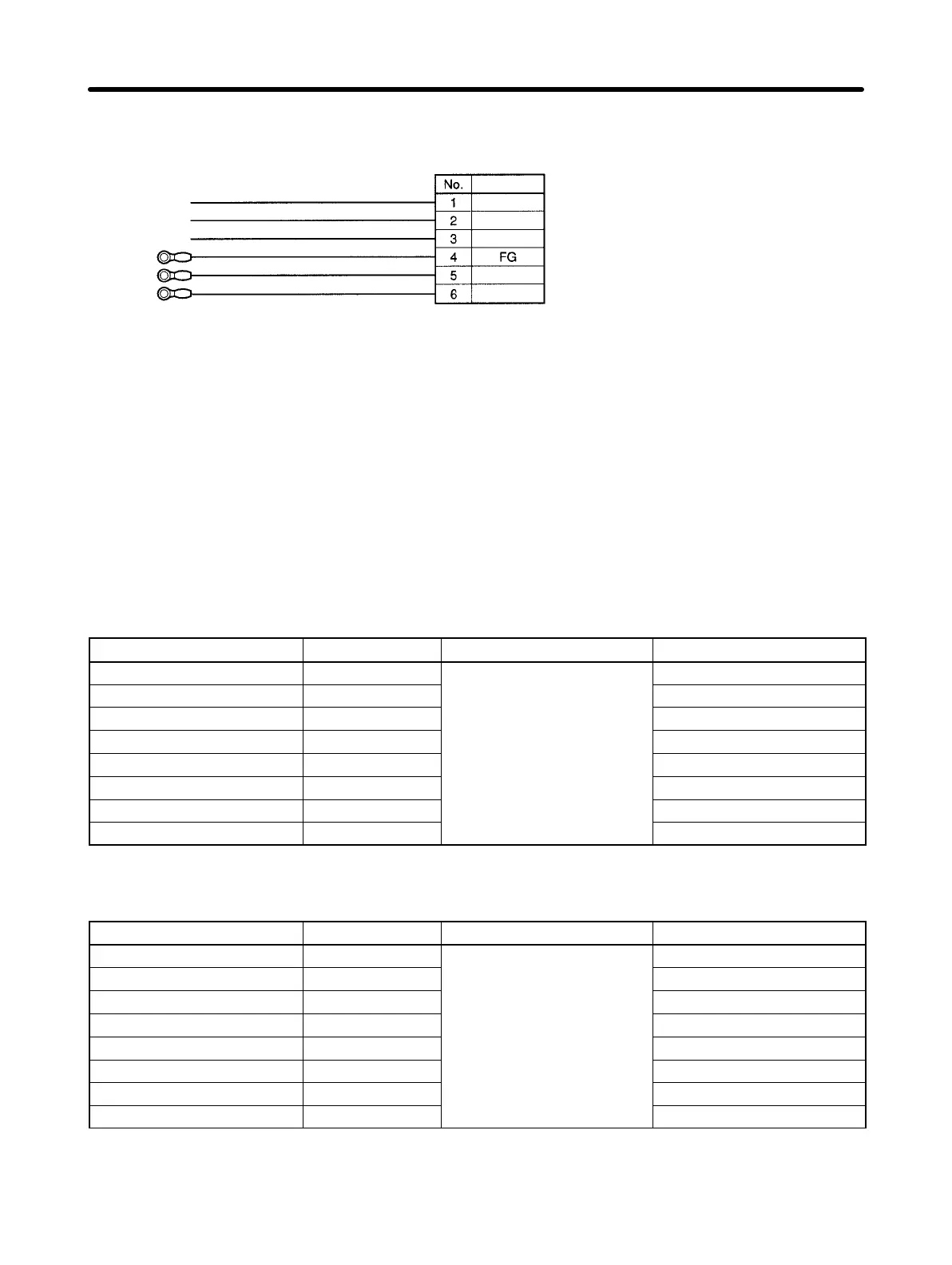

For Servomotors with Brakes
Cable
Connector cap:
350781-1 (Tyco Electronics AMP KK)
Connector socket:
350689-3 (Tyco Electronics AMP KK)
Servomotor
Connector plug:
350715-1 (Tyco Electronics AMP KK)
Connector pins 1 to 3, 5, 6:
350690-3 (Tyco Electronics AMP KK)
Connector pin 4:
770210-1 (Tyco Electronics AMP KK)
Cable: AWG20 × 6C UL2464
Servo Driver
Red
Servomotor
White
Blue
Green/Yellow
Black
Brown
Phase-U
Phase-V
Phase-W
Brake
Brake
Symbol
M4 crimp
terminals
H R88A-CAWBj
The R88A-CAWBj Cables are for 3,000-r/min Flat-style Servomotors (1.5 kW).
D Cable Models
For Servomotors without Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWB003S 3 m
10.4 dia.
Approx. 0.6 kg
R88A-CAWB005S 5 m Approx. 1.0 kg
R88A-CAWB010S 10 m Approx. 1.9 kg
R88A-CAWB015S 15 m Approx. 2.8 kg
R88A-CAWB020S 20 m Approx. 3.7 kg
R88A-CAWB030S 30 m Approx. 5.5 kg
R88A-CAWB040S 40 m Approx. 7.3 kg
R88A-CAWB050S 50 m Approx. 9.2 kg
For Servomotors with Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWB003B 3 m
14.5 dia.
Approx. 1.0 kg
R88A-CAWB005B 5 m Approx. 1.6 kg
R88A-CAWB010B 10 m Approx. 3.2 kg
R88A-CAWB015B 15 m Approx. 4.8 kg
R88A-CAWB020B 20 m Approx. 6.4 kg
R88A-CAWB030B 30 m Approx. 9.5 kg
R88A-CAWB040B 40 m Approx. 12.7 kg
R88A-CAWB050B 50 m Approx. 15.8 kg
Note Use these cables if a 750-W Servomotor is to be wired at a distance of 30 meters or more.
Standard Models and Specifications Chapter 2
