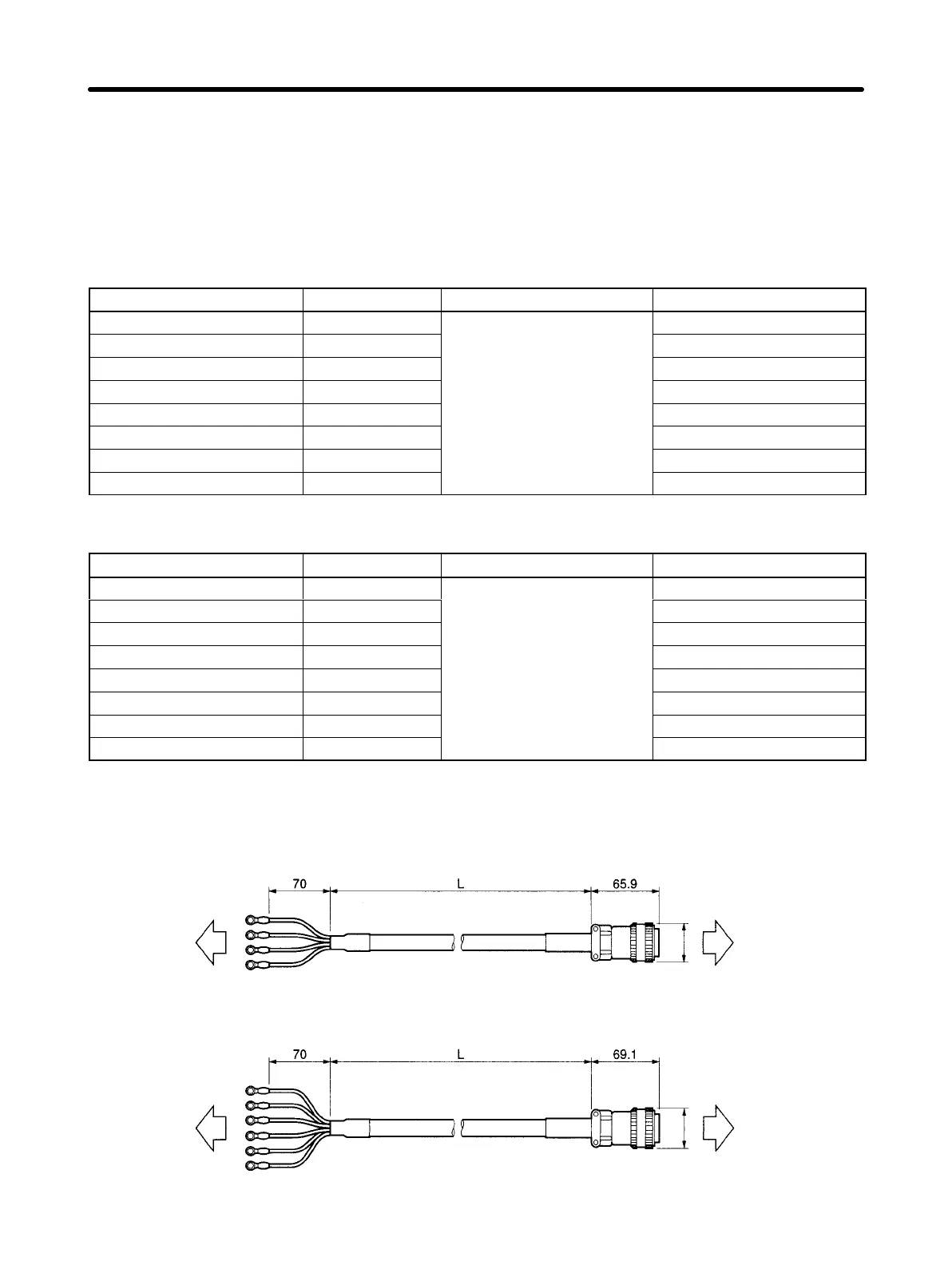

2-138
H R88A-CAWCj
The R88A-CAWCj Cables are for 3,000-r/min Servomotors (1 to 2 kW), 1,000-r/min Servomotors (300
to 900 W), and 1,500-r/min Servomotors (450 W to 1.3 kW).
D Cable Models
For Servomotors without Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWC003S 3 m
10.4 dia.
Approx. 0.6 kg
R88A-CAWC005S 5 m Approx. 1.0 kg
R88A-CAWC010S 10 m Approx. 1.9 kg
R88A-CAWC015S 15 m Approx. 2.8 kg
R88A-CAWC020S 20 m Approx. 3.7 kg
R88A-CAWC030S 30 m Approx. 5.6 kg
R88A-CAWC040S 40 m Approx. 7.4 kg
R88A-CAWC050S 50 m Approx. 9.2 kg
For Servomotors with Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWC003B 3 m
14.5 dia.
Approx. 1.1 kg
R88A-CAWC005B 5 m Approx. 1.7 kg
R88A-CAWC010B 10 m Approx. 3.3 kg
R88A-CAWC015B 15 m Approx. 4.9 kg
R88A-CAWC020B 20 m Approx. 6.4 kg
R88A-CAWC030B 30 m Approx. 9.6 kg
R88A-CAWC040B 40 m Approx. 12.7 kg
R88A-CAWC050B 50 m Approx. 15.9 kg
D Connection Configuration and External Dimensions
For Servomotors without Brakes
Servo Driver Servomotor
R88D-WTj R88M-Wj
34.1 dia.
For Servomotors with Brakes
Servo Driver
Servomotor
R88D-WTj
R88M-Wj
37.3 dia.
Standard Models and Specifications Chapter 2
