18

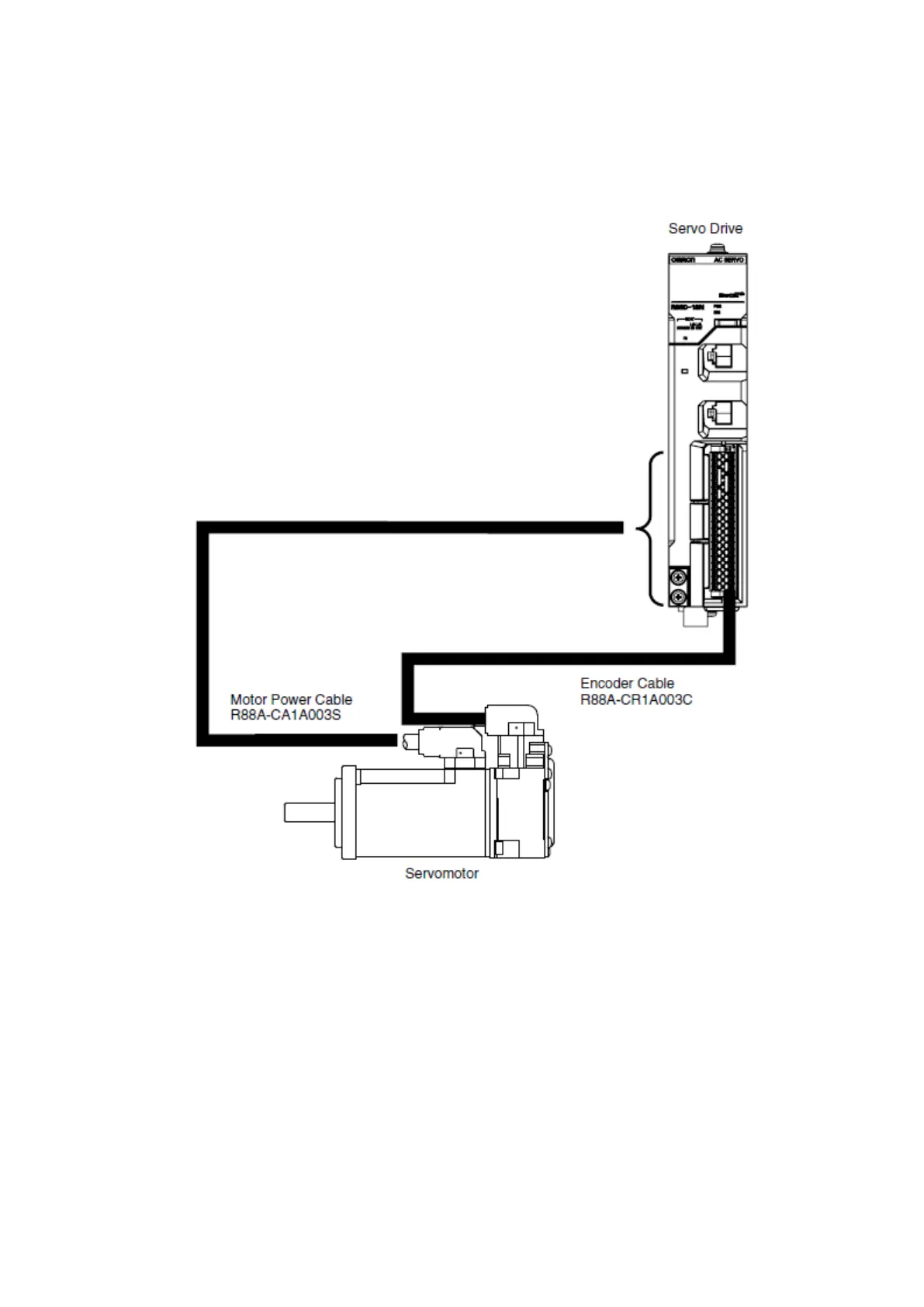

Wiring the Servo Drives and the Servomotors
Wire the Servo Drives and the Servomotors as shown in the following figure.
