4-1 Monitor Mode
4
Functions
Multi-function Input Monitor [d005]
•The LED lighting position indicates the input status of the multi-function input terminals.
•The item that the built-in CPU recognizes to be "significant" is indicated as being ON.
This does not depend on the NO/NC contact setting.

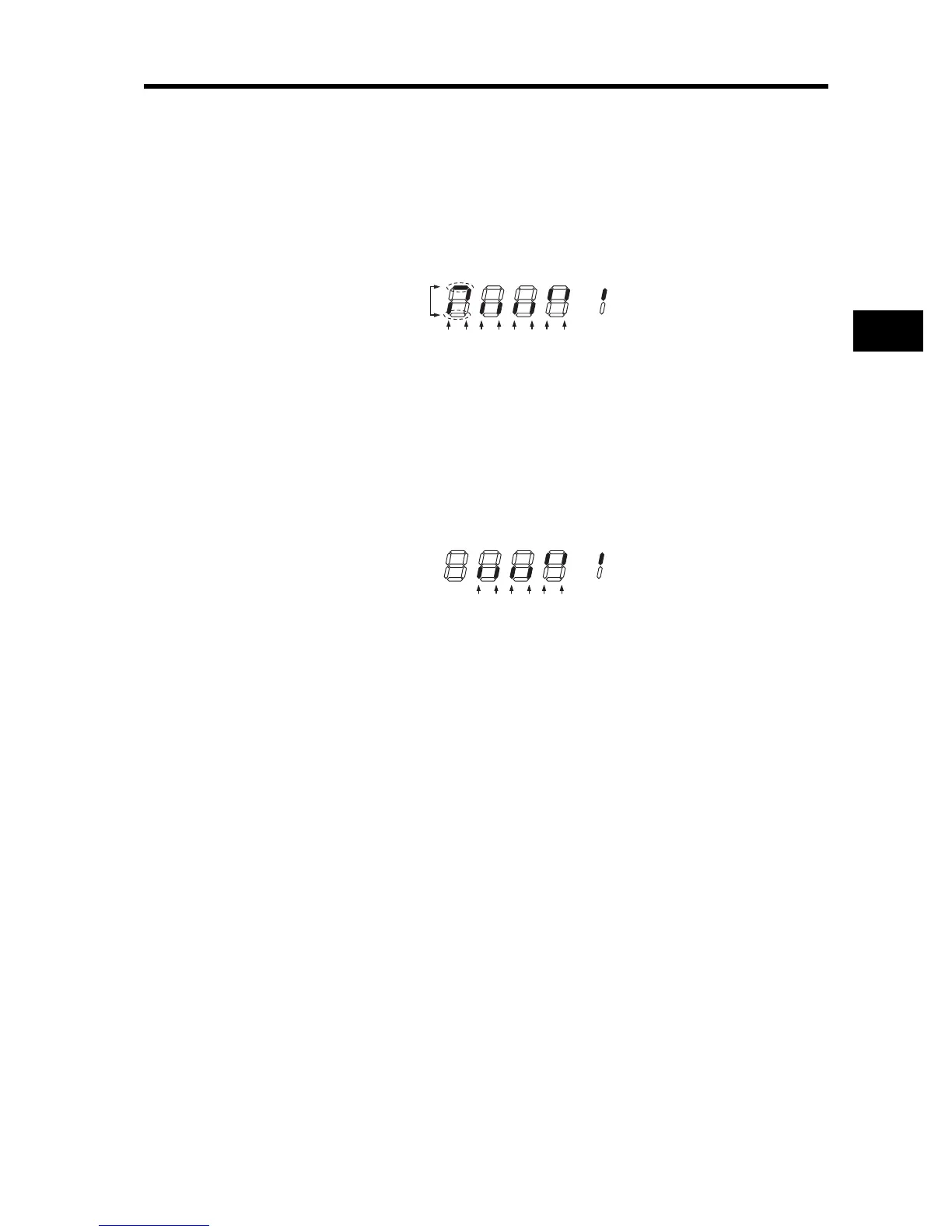

(Example)
FW, Multi-function input terminals 7, 2, 1: ON
Multi-function input terminals 8, 6, 5, 4, 3: OFF
Multi-function Output Monitor [d006]
•The LED lighting position indicates the output status of the multi-function output terminals.
•This monitor displays the output status of the built-in CPU, not the control circuit terminal status.
(Example)
Multi-function output terminals 12, 11: ON
Relay output terminal AL2, Multi-function output terminals 15, 14, 13: OFF
Output Frequency Monitor (After Conversion) [d007]
Displays a gain conversion value based on the coefficient set in frequency conversion coefficient
b086.
This monitor is used to change the unit of displayed data (e.g. motor rpm).
"d007 display" = "Output frequency (d001)" × "Frequency conversion coefficient (b086)"
(b086) 0.1 to 99.9 (Can be set in increments of 0.1.)
(Example)
To display 4-pole motor rpm:
Motor rpm N (min
-1
) = (120 × f (Hz)) / P (pole)
= f (Hz) × 30
As such, when b086 = 30.0, a motor rpm of 1800 (60 × 30.0) is displayed.
(Display)
0.00 to 99.99 : Displays in increments of 0.01.
100.0 to 999.9 : Displays in increments of 0.1.
100. to 9999. : Displays in increments of 1.
1000 to 3996 : Displays in increments of 10.
Note: When the frequency reference is set using the Digital Operator, the output frequency can be
changed with the Increment/Decrement key during operation only.
The frequency setting changed with this monitor will be reflected in frequency reference F001.
Pressing the Enter key overwrites the currently selected frequency reference. (The data
storage accuracy depends on each frequency reference.)
