4-107
4-2 Function Mode
4
Functions
Digital FM Terminal
•You can monitor the output frequency and current using the FM terminal on the control circuit
terminal block.
•The FM terminal provides pulse output.
FM Selection
•Select a signal to output from the following table.
For "03" (digital output frequency), use the digital frequency counter.
For other output signals, use the analog meter.
*1. This output is enabled only when "SLV", "0-Hz SLV", or "V2" is selected. (Refer to "Control Method (V/f
Characteristics)" (page 4-21).)
*2. Digital current monitor
• When the monitor displays the value set in digital current monitor reference value C030, 1440 Hz is
output.
*3. When "sensor vector control" is selected (A044 = 05), the real frequency (detected frequency) is displayed.

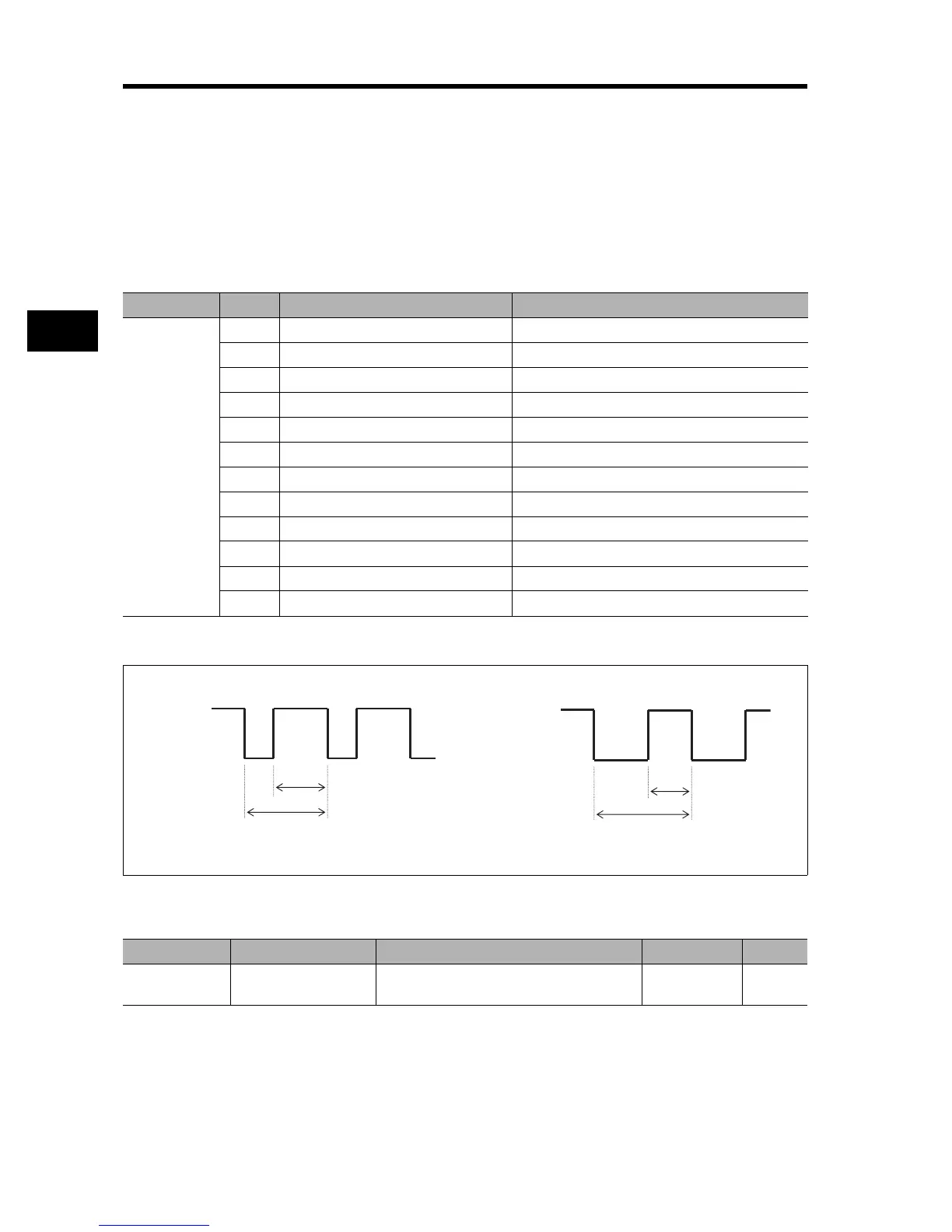

Parameter No. Data Description Full-scale value
C027
00 Output frequency (example 1) 0 to Max. frequency (Hz)
*3
01 Output current (example 1) 0% to 200%
02 Output torque (example 1)
*1
0% to 200%
03 Digital output frequency (example 2) 0 to Max. frequency (Hz)
04 Output voltage (example 1) 0% to 100%
05 Input voltage (example 1) 0% to 200%
06 Thermal load rate (example 1) 0% to 100%
07 LAD frequency (example 1) 0 to Max. frequency (Hz)
08 Digital current monitor
*2
09 Motor temperature 0C to 200C (0C output at 0C or lower)
10 Fin temperature 0C to 200C (0C output at 0C or lower)
12 Not used
(Example 1) Set values: 00, 01, 02, 04, 05, 06, 07, 09, 10, 12 (Example 2) Set values: 03, 08
Cycle T: Constant (6.4 ms)
Duty ratio t/T: Variable
Cycle T: Variable
Duty ratio t/T: Fixed to 1/2
t
T
t
T
Parameter No. Function name Data Default setting Unit
C030
Digital current monitor
reference value
0.2 × Rated current to 2.0 × Rated current:
Set a current value at 1440-Hz output.
Rated current A
