7-3 Options
7
Specifications
Chokes (AX-FER-RE)

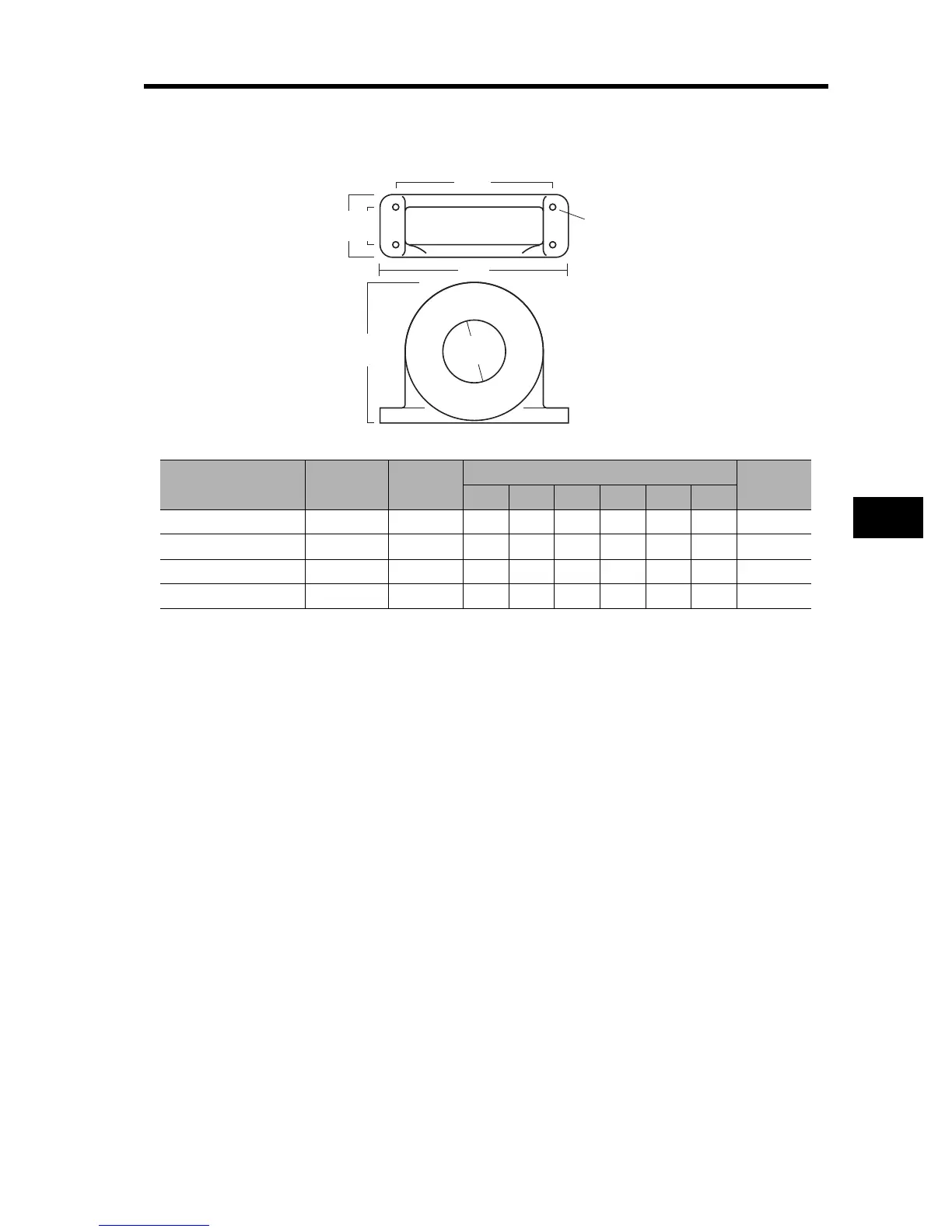

Dimensional Drawing
Reference D
diameter
Motor
KW
Dimensions Weight
Kg
L W H X Y m
AX-FER2102-RE 21 < 2.2 85 22 46 70 - 5 0.1
AX-FER2515-RE 25 < 15 105 25 62 90 - 5 0.2
AX-FER5045-RE 50 < 45 150 50 110 125 30 5 0.7
AX-FER6055-RE 60 < 55 200 65 170 180 45 6 1.7
X
H
YW
Ø m
L
Ø d
