2-17
2-2 Wiring
2
Design
RX-A2450
RX-A4450
RX-A4550
Ro,To: M4
Ground terminal: M8
Others: M8
[EMC filter function switching method]
RX-A2550
Ro,To: M4
Ground terminal: M8
Others: M10
[EMC filter function switching method]

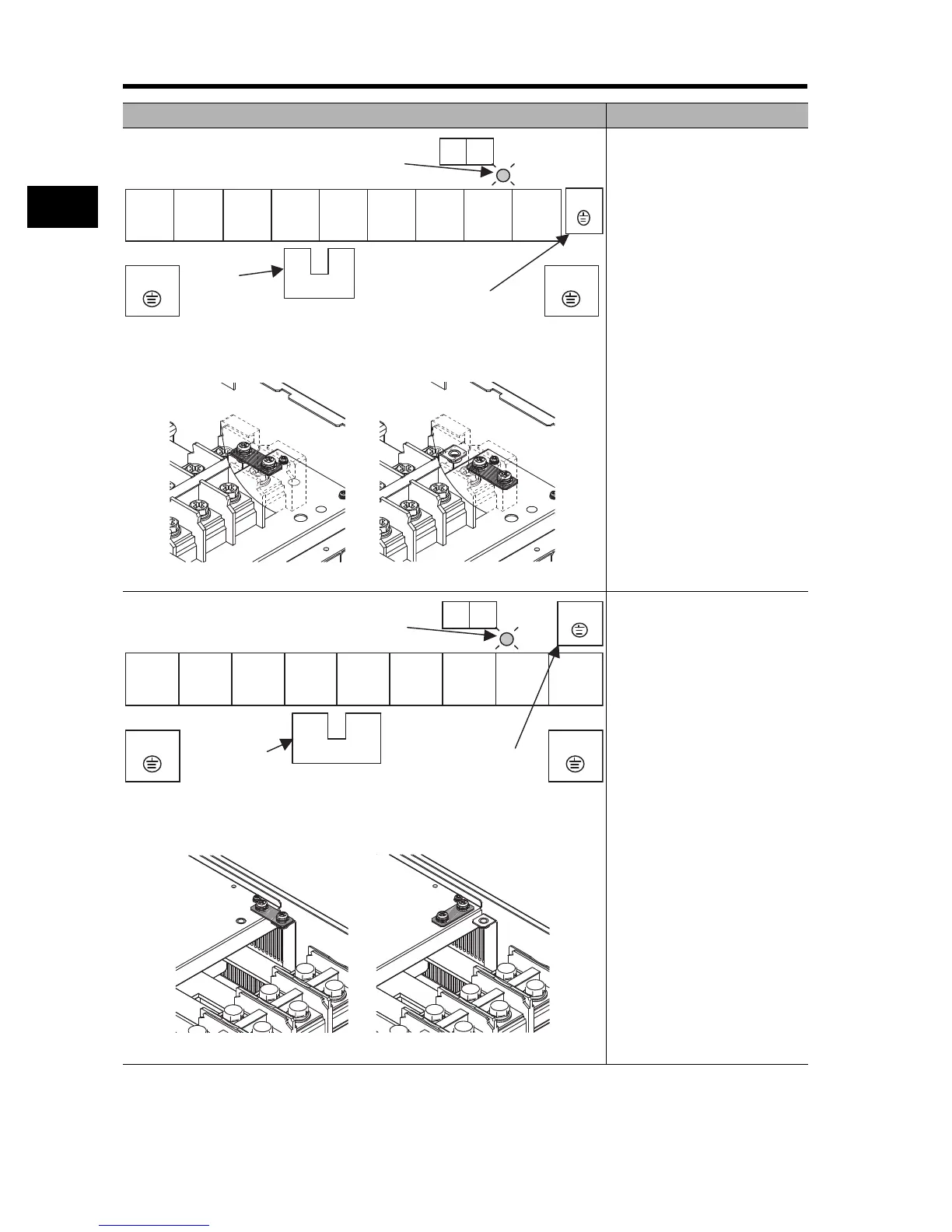

Terminal arrangement Applicable model
Ro To
GG
G
R/L1 S/L2 T/L3 PD/+1
P/+ N/- U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar (shaded area)
for EMC filter function switching
PD/+1-P/+
short-circuit bar
When not using the DC
reactor, keep the PD/+1-P/+
short-circuit bar attached.
CHARGE LED indicator
EMC filter enabled (factory default) EMC filter disabled
Ro To
G
G
G
R/L1 S/L2 T/L3 PD/+1
P/+ N/- U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar
(shaded area) for EMC
filter function switching
PD/+1 - P/+
short-circuit bar
When not using the DC
reactor, keep the PD/+1 - P/+
short-circuit bar attached.
CHARGE LED indicator
EMC filter enabled (factory default) EMC filter disabled
