2-16
2-2 Wiring
2
Design
RX-A2150 to A2185
RX-A4150 to A4220
Ro,To: M4
Ground terminal: M6
Others: M6
[EMC filter function switching method]
RX-A2220
Ro,To: M4
Ground terminal: M6
Others: M8
[EMC filter function switching method]
RX-A2300
Ro, To: M4
Ground terminal: M6
Others: M8
RX-A4300
Ro,To: M4
Ground terminal: M6
Others: M6
RX-A2370
RX-A4370
Ro,To: M4
Ground terminal: M8
Others: M8

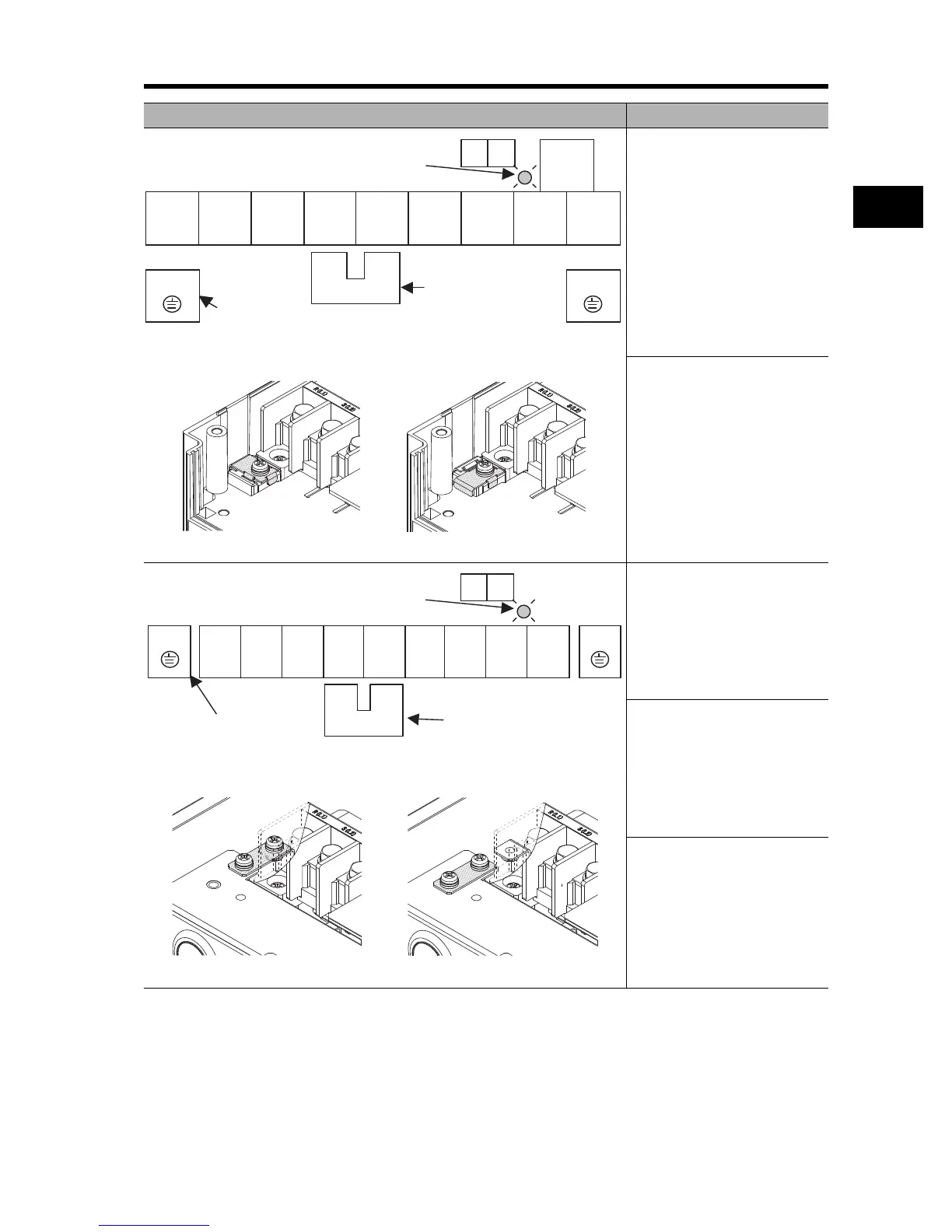

Terminal arrangement Applicable model
Ro To
RB
R/L1 S/L2 T/L3 PD/+1
P/+ N/- U/T1 V/T2 W/T3
G
G
Ground terminal with short-circuit
bar (shaded area) for EMC filter
function switching
PD/+1 - P/+ short-circuit bar
When not using the DC
reactor, keep the PD/+1 - P/+
short-circuit bar attached.
CHARGE LED indicator
EMC filter enabled (factory default) EMC filter disabled
Ro To
R/L1 S/L2 T/L3 PD/+1
P/+ N/- U/T1 V/T2 W/T3
GG
Ground terminal with short-circuit
bar (shaded area) for EMC filter
function switching
When not using the DC reactor,
keep the PD/+1 - P/+
short-circuit bar attached.
CHARGE LED indicator
PD/+1 - P/+ short-circuit bar
EMC filter enabled (factory default) EMC filter disabled
