No. 20S071-01
STC-HD213DV / STC-HD213DV-CS / STC-HD213SDI / STC-HD213SDI-CS /
STC-HD213DVN / STC-HD213DVN-CS / STC-HD213SDIN / STC-HD213SDIN-CS
Product Specifications and User
s Guide
28/94
2-2) SHADOW H T
Sets the height of shadow mask from top of image.
Setting range: 0 (Top) to 1,079 (Bottom)
Default: 0
2-3) SHADOW H B
Sets the height of shadow mask from bottom of image.
Setting range: 0 (Top) to 1,080 (Bottom)
Default: 0
2-4) SHADOW V L
Sets the width of shadow mask from left of image.
Setting range: 0 (Left) to 1,919 (Right)
Default: 0
2-5) SHADOW V R
Sets the width of shadow mask from right of image.
Setting range: 0 (Left) to 1,920 (Right)
Default: 0

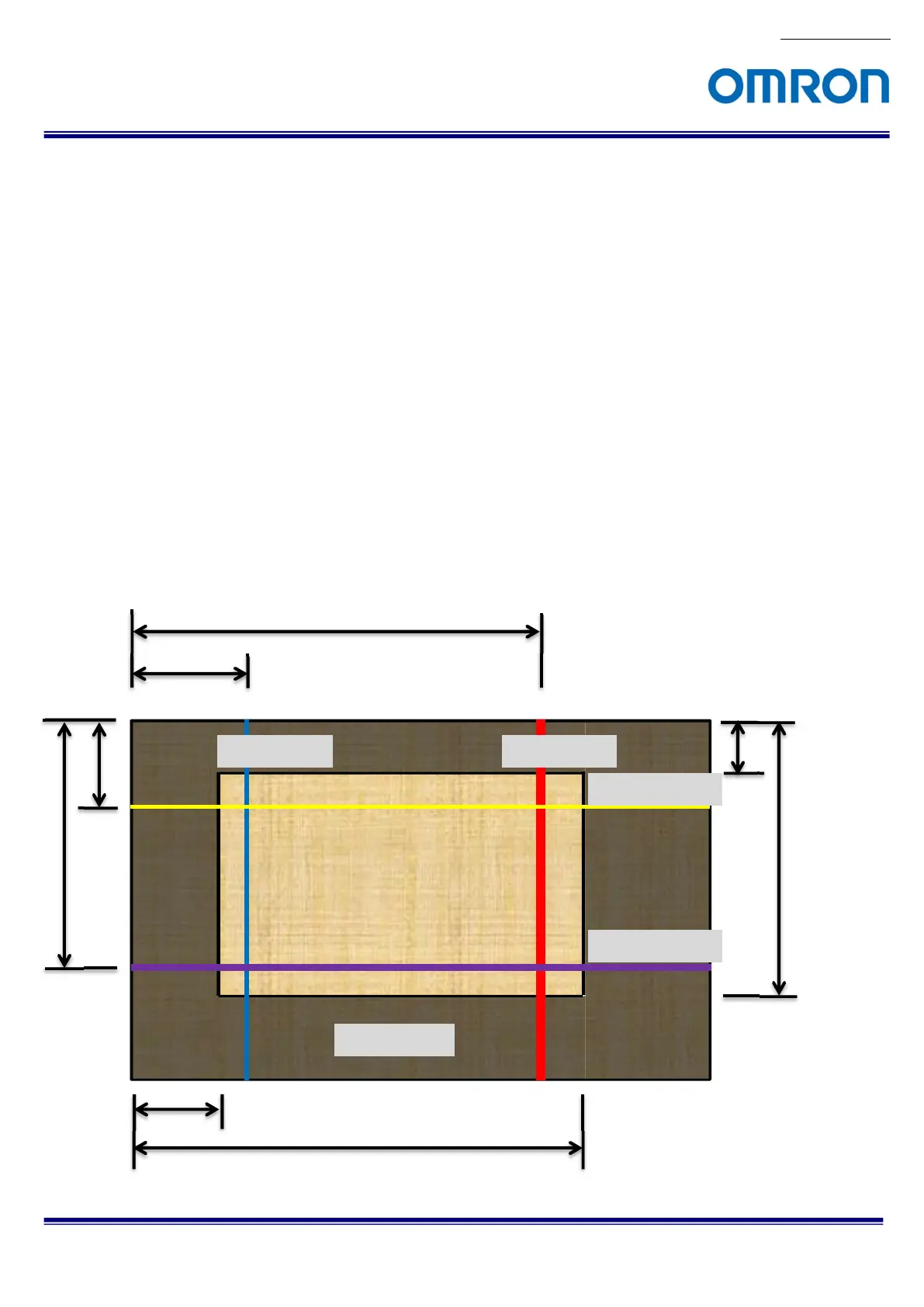

Shadow mask
Vertical line 1
Vertical line 2
Horizontal line 1
Horizontal line 2
LINE1 V POS
LINE2 V POS
LINE1 H POS
LINE2 H POS
SHADOW H T
SHADOW H B
SHADOW V L
SHADOW V R
