Omron SYSDRIVE 3G3MV Setup Manual

Checking Before Unpacking
H Checking the Product
On delivery, always check that the delivered product is the SYSDRIVE 3G3MV Inverter that you
ordered.
Should you find any problems with the product, immediately contact your nearest local sales
representative.

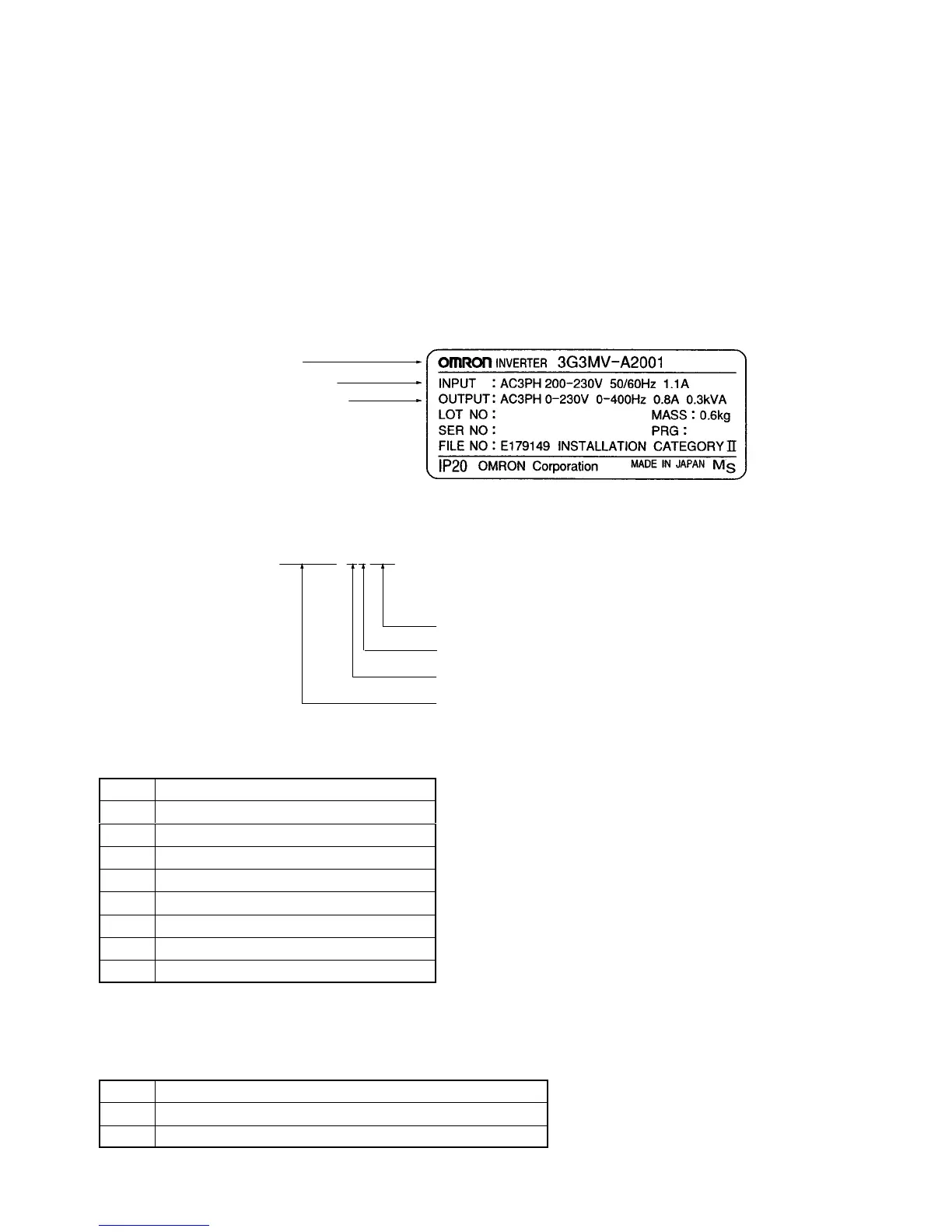

D Checking the Nameplate
Inverter model
Input specifications
Output specifications
D Checking the Model
3G3MV-A4007
Maximum applicable motor capacity
Voltage class
Installation type
Series name: 3G3MV Series
Maximum Applicable Motor Capacity
001 0.1 (0.1) kW
002 0.25/0.37 (0.2) kW
004 0.55 (0.4) kW
007 1.1 (0.75) kW
015 1.5 (1.5) kW
022 2.2 (2.2) kW
037 3.7 (3.7) kW
055 5.5 (5.5) kW
075 7.5 (7.5) kW
Note The figures in parentheses indicate capacities for motors used in Japan.
Voltage Class
2 Three-phase 200-V AC input (200-V class)
B Single-phase 200-V AC input (200-V class)
4 Three-phase 400-V AC input (400-V class)

Omron SYSDRIVE 3G3MV Specifications

General

Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1-400 Hz
Cooling Method	Forced Air Cooling
Communication Interface	RS-485
Model	Omron SYSDRIVE 3G3MV
Protection	Overcurrent, Overvoltage, Overheat
Ambient Temperature	-10 to 50°C
Overload Capacity	150% for 60 seconds
Storage Temperature	-20 to 65°C
Humidity	20 to 90% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	200-230V, 380-460V
