Omron Sysmac NJ-series

7
．
EtherNet/IP Connection Procedure
23
15

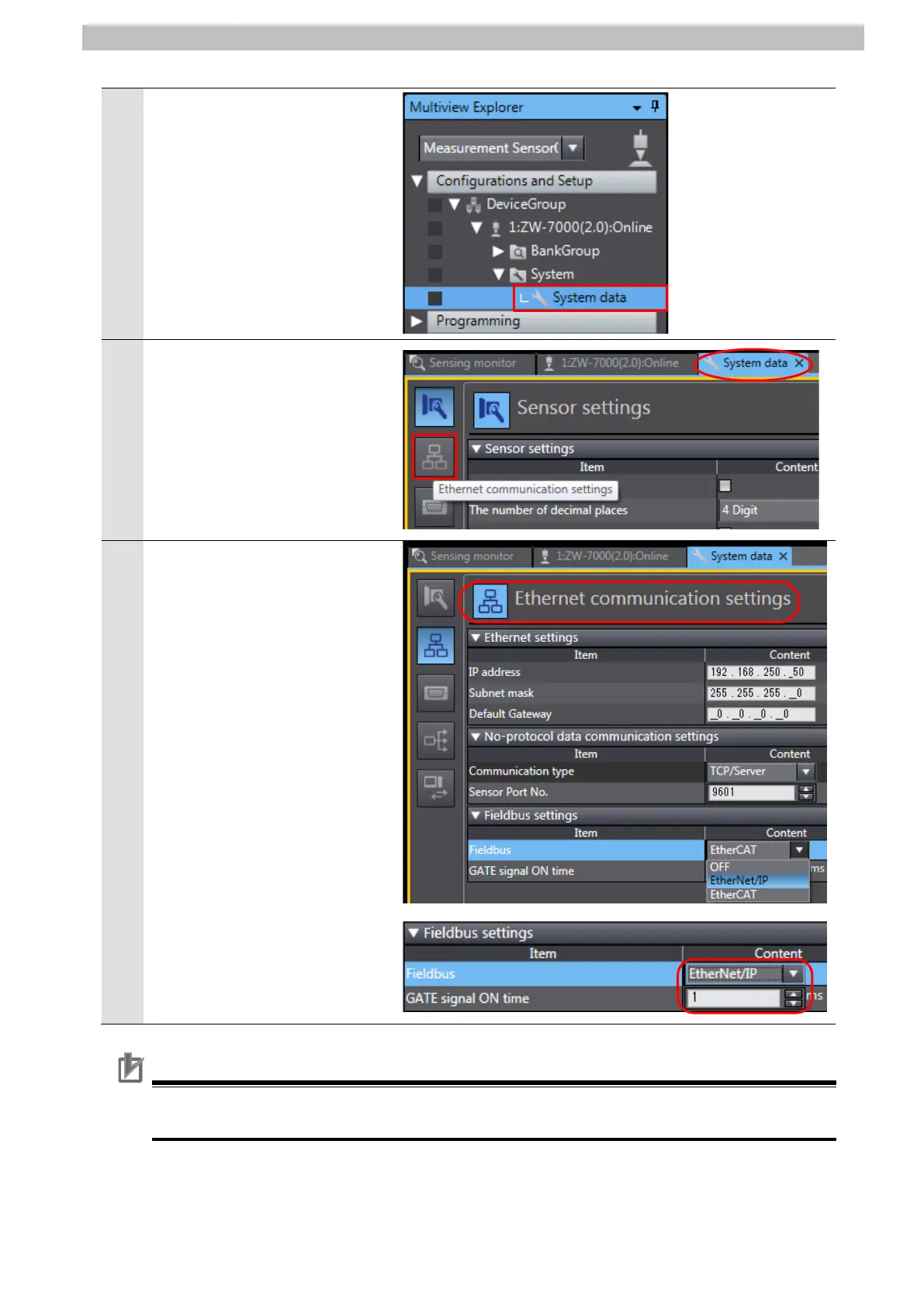

Double-click System data under
Configurations and Setup -
DeviceGroup - 1:ZW-7000(2.0)
:Online - System in the
Multiview Explorer.
16
The System data Tab Page is
displayed.
Click the Ethernet
communication settings
Button.
17
The Ethernet communication
settings view is displayed.
Select EtherNet/IP from the
pull-down list of Fieldbus.
Check that the following fieldbus
settings are made.
Fieldbus: EtherNet/IP
GATE signal ON time:
1 ms (Default)
Precautions for Correct Use
If you use the hold function on Sensor Controller, set the value of GATE signal ON time
greater than RPI.
