EtherNet/IP Connection Procedure
10

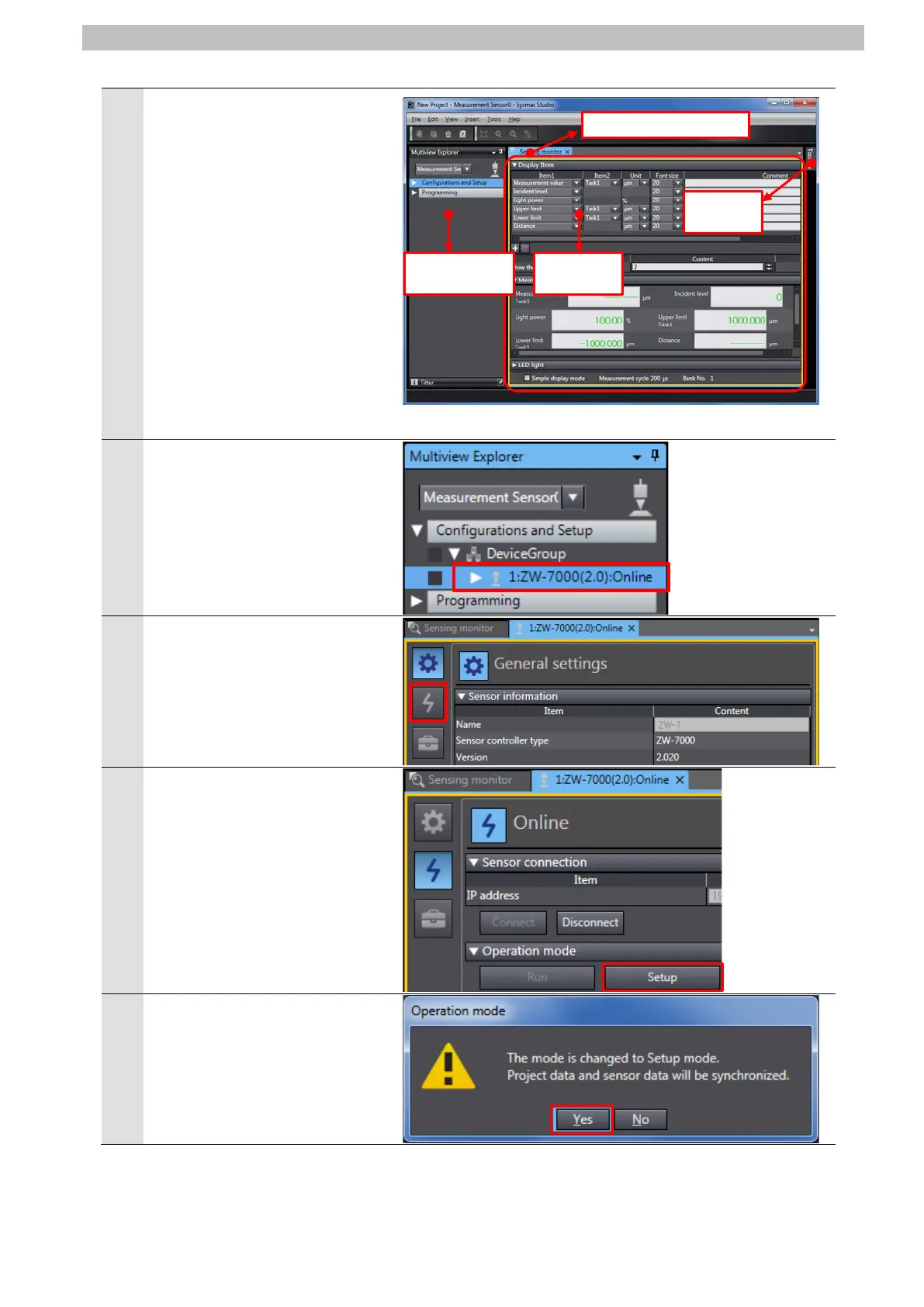

The Sensor Controller project is
displayed online.
When an online connection is
established, the Edit Pane is
surrounded with a yellow frame.
The following panes are
displayed in this window.
Left: Multiview Explorer
Center: Edit Pane
The following tabs are displayed
in the Edit Pane.
Center: Sensing Monitor Pane
Right: Toolbox
Double-click
1:ZW-7000(2.0):Online under
Configurations and Setup -
DeviceGroup in the Multiview
Explorer.
The 1:ZW-7000(2.0):Online Tab
Page is displayed.
Click the Online Button.
The Online is displayed.
Click Setup in the Operation
mode Field.
The Operation mode Dialog Box
is displayed. Confirm that there
is no problem, and click Yes.
Edit Pane
Toolbox
Sensing Monitor Pane
Multiview
Explorer
