EtherNet/IP Connection Procedure
7.3.3. Setting the Global Variables
Set the global variables to use for tag data links.

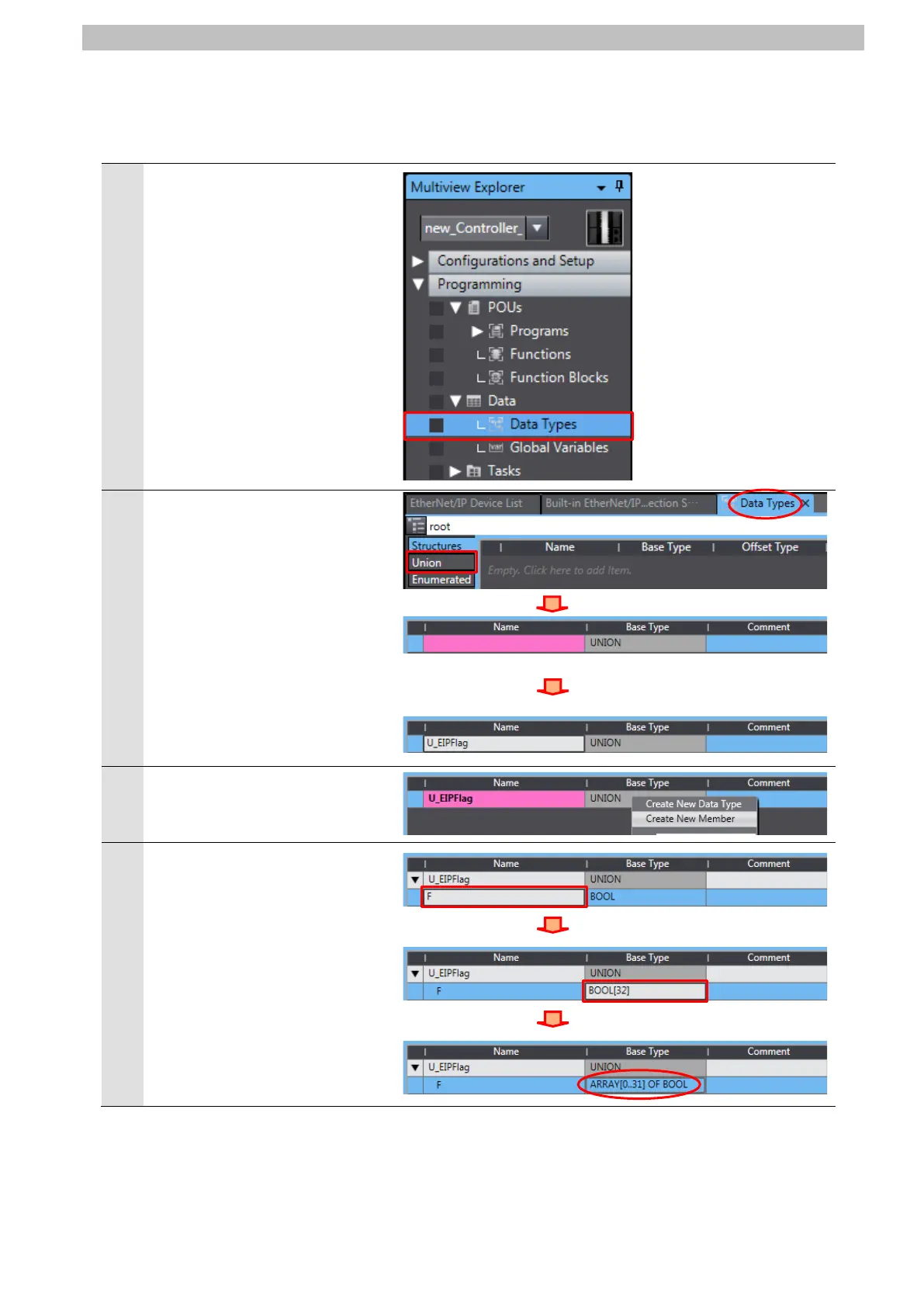

Double-click Data Types under
Programming - Data in the
Multiview Explorer.
2
Click the Union Side Tab.
Click on a space in the Name
Column to enter a new data
type.
Enter U_EIPFlag in the Name
Column.
3
After entering, right-click and
select Create New Member
from the menu.
4
Enter the following data in the
newly added row.
・Name: F
Data type: BOOL[32]
*After entering, the base type
changes to ARRAY[0..31] OF
BOOL as shown on the right.
To Next Page
