Omron Sysmac NJ-series Connection Guide

7
．
EtherNet/IP Connection Procedure
32
10

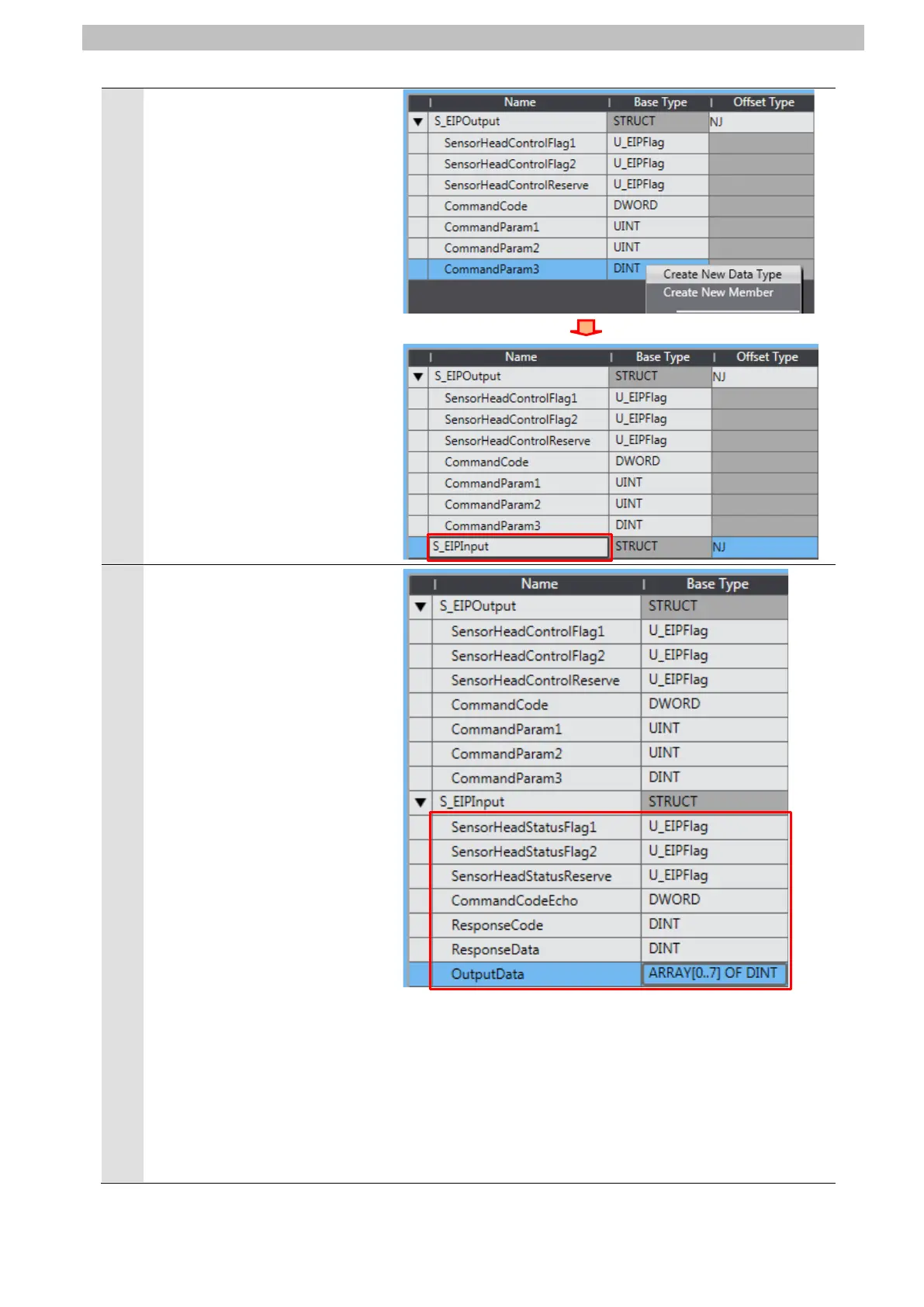

After entering, right-click and
select Create New Data Type
from the menu.
Enter S_EIPInput in the Name
Column.
11
In the same way as steps 7 and
8, enter the following data in the
newly added rows.
・Name:
SensorHeadStatusFlag1
Base type: U_EIPFlag
・Name:
SensorHeadStatusFlag2
Base type: U_EIPFlag
・Name:
SensorHeadStatusReserve
Base type: U_EIPFlag
・Name: CommandCodeEcho
Base type: DWORD
・Name: ResponseCode
Base type: DINT
・Name: ResponseData
Base type: DINT
・Name: OutputData
Base type: DINT[8]
*After entering, the base type
changes to ARRAY[0..7] OF
DINT.
*Enter each member of the data
type in order from the top of the
list described in 6.2. Data
Types to Use for Tag Data
Links.
