Communication protocols
PROGRAMMING MANUAL 228
Revision 1.0
A VR variable can hold a 53-bit number, and it can also hold fragments. The
exchange with the DeviceNet master does not support values outside the
range -32768 to 32767 or fragments.
Configure the DeviceNet network
To configure the OMRON CJ1W/CS1W-DRM21 DeviceNet master to
exchange VR variables with the Trajexia system, do these steps:

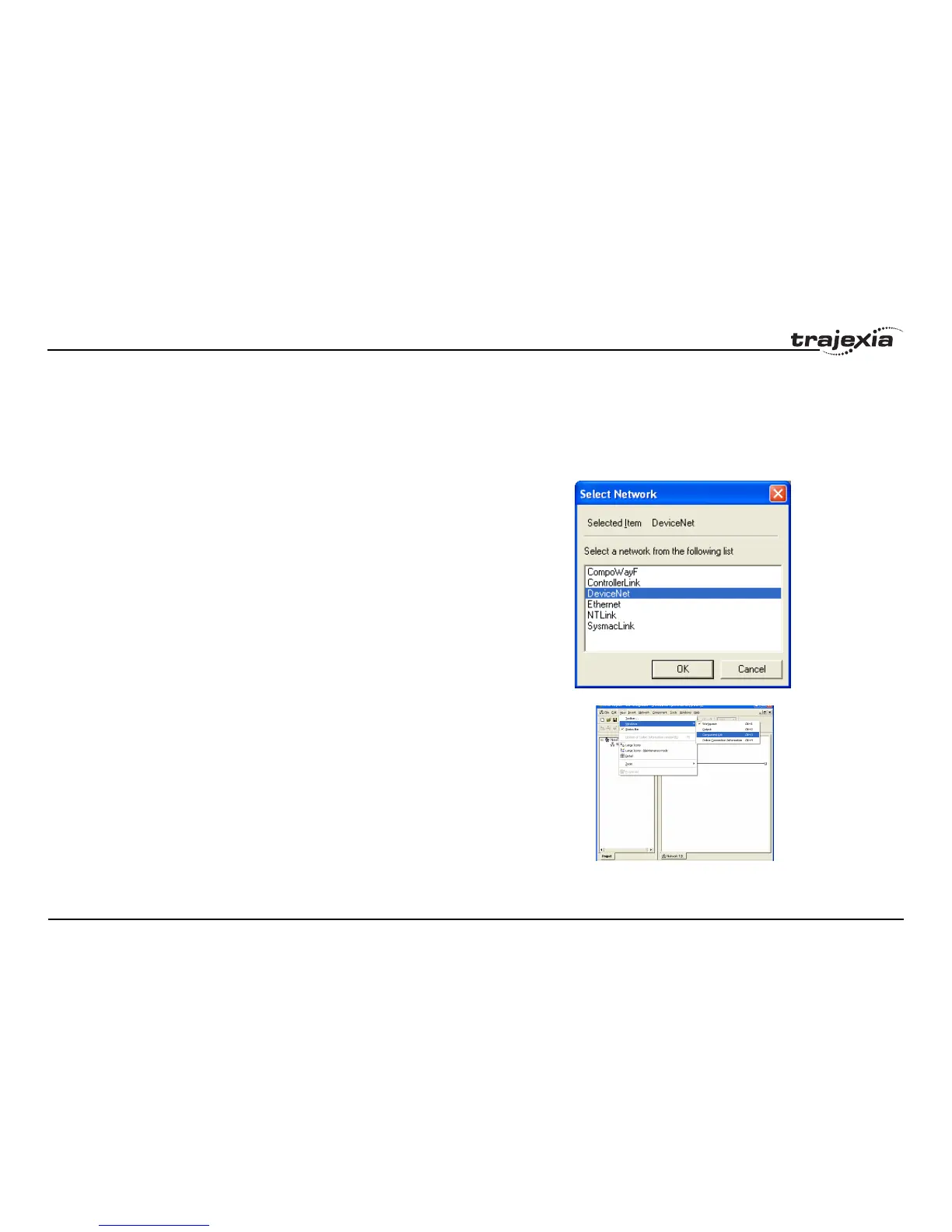

fig. 10
1. Start the CX-Integrater in the CX-ONE software tool.
2. Select Network from the Insert menu.
3. Select DeviceNet from the Select Network screen. The Network view
shows.
fig. 11
4. Select CJ1W-DRM21 from the OMRON Communication adapter list.
