7 Troubleshooting
30 I67E-EN V1000 Quick Start Guide

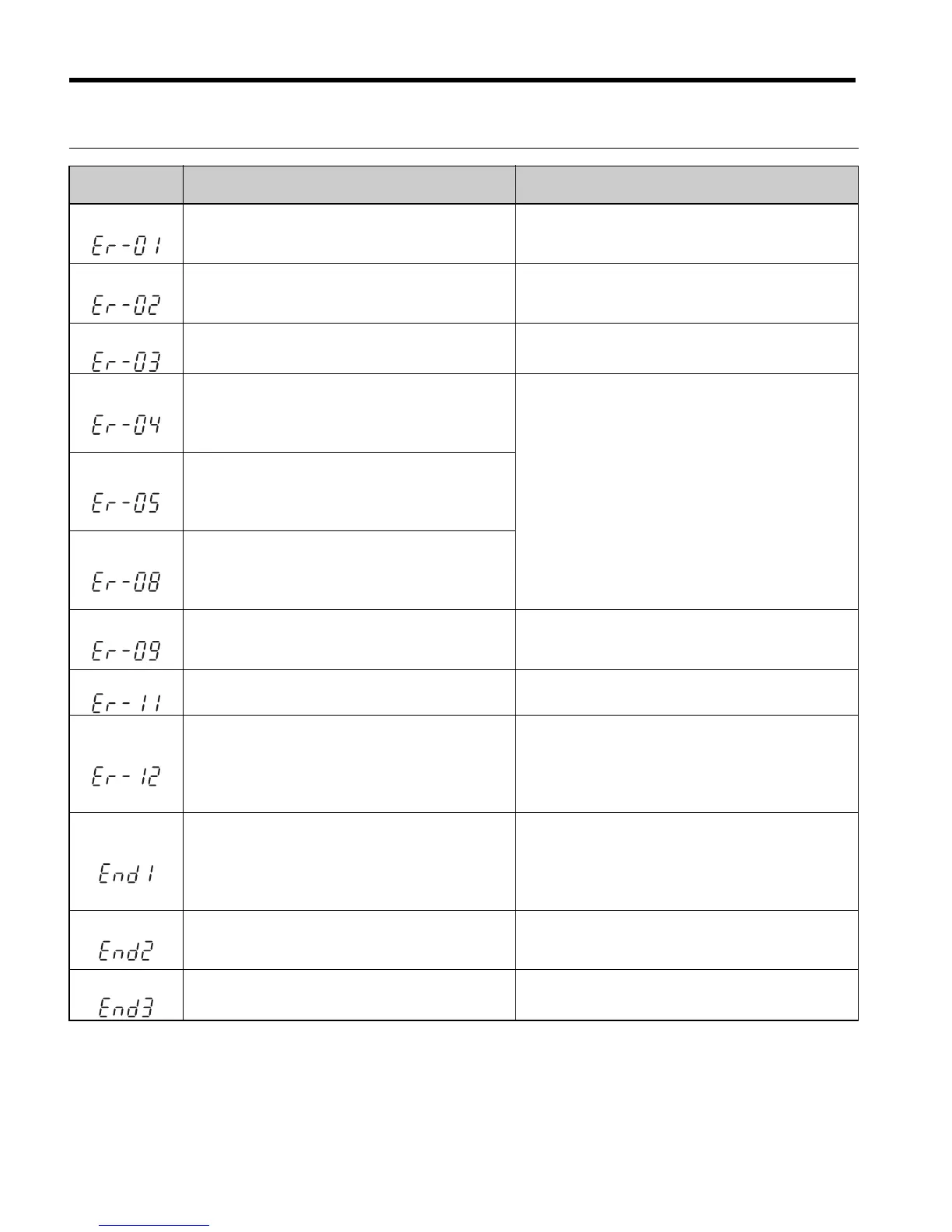

 Auto-Tuning Errors
LED Operator
Display
Cause Corrective Action
Er-01
Motor data fault
The input motor data are not valid (e.g. the base
frequency and base speed do not fit).
Re-enter the data and repeat Auto-Tuning.
Er-02
Minor Fault
• The wiring is faulty.
• The load is too heavy.
• Check the wiring.
• Check the load. Always perform Auto-Tuning
with the load decoupled from the motor.
Er-03
The STOP button was pressed and Auto-Tuning
was canceled.
Repeat the Auto-Tuning.
Er-04
Resistance fault
• Wrong input data.
• Auto tuning exceeded the given time frame.
• Calculated values out of range.
• Check the input data.
• Check the wiring.
• Re-enter the data and repeat the Auto-Tuning.
Er-05
No-Load Current Error
• Incorrect data was entered.
• Auto tuning took too long.
• Calculated values out of range.
Er-08
Rated Slip Error
• Wrong data input.
• Auto tuning exceeded the given time frame.
• Calculated values out of range.
Er-09
Acceleration error
The motor did not accelerate for the specified
acceleration time.
• Increase the acceleration time C1-01.
• Check the torque limits L7-01 and L7-02.
Er-11
Motor speed fault.
The torque reference was too high.
• Increase the acceleration time (C1-01).
• If possible, disconnect the load.
Er-12
Current detection error
• One or all output phases are lost.
• Current is either too low or exceeds the drives
rating.
• The current sensors are faulty.
• Check the wiring.
• Make sure, that the drive rating fits to the motor.
• Check the load. (Auto-Tuning should have been
performed without the load connected).
• Replace the drive.
End1
Rated current alarm
• The torque reference exceeded 20% during
Auto-Tuning.
• The calculated no-load current is above 80%
of the motor rated current.
• Check the V/f pattern setting.
• Perform Auto-Tuning without the load con-
nected.
• Check the input data and repeat Auto-Tuning.
End2
Motor iron-core saturation alarm
• Calculated core saturation values out of range.
• Incorrect data was entered.
• Check the input data.
• Check the motor wiring.
• Perform Auto-Tuning without load connected.
End3
Rated current alarm Check the input data and repeat tuning.

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
