2 Mechanical Installation
8 I67E-EN V1000 Quick Start Guide

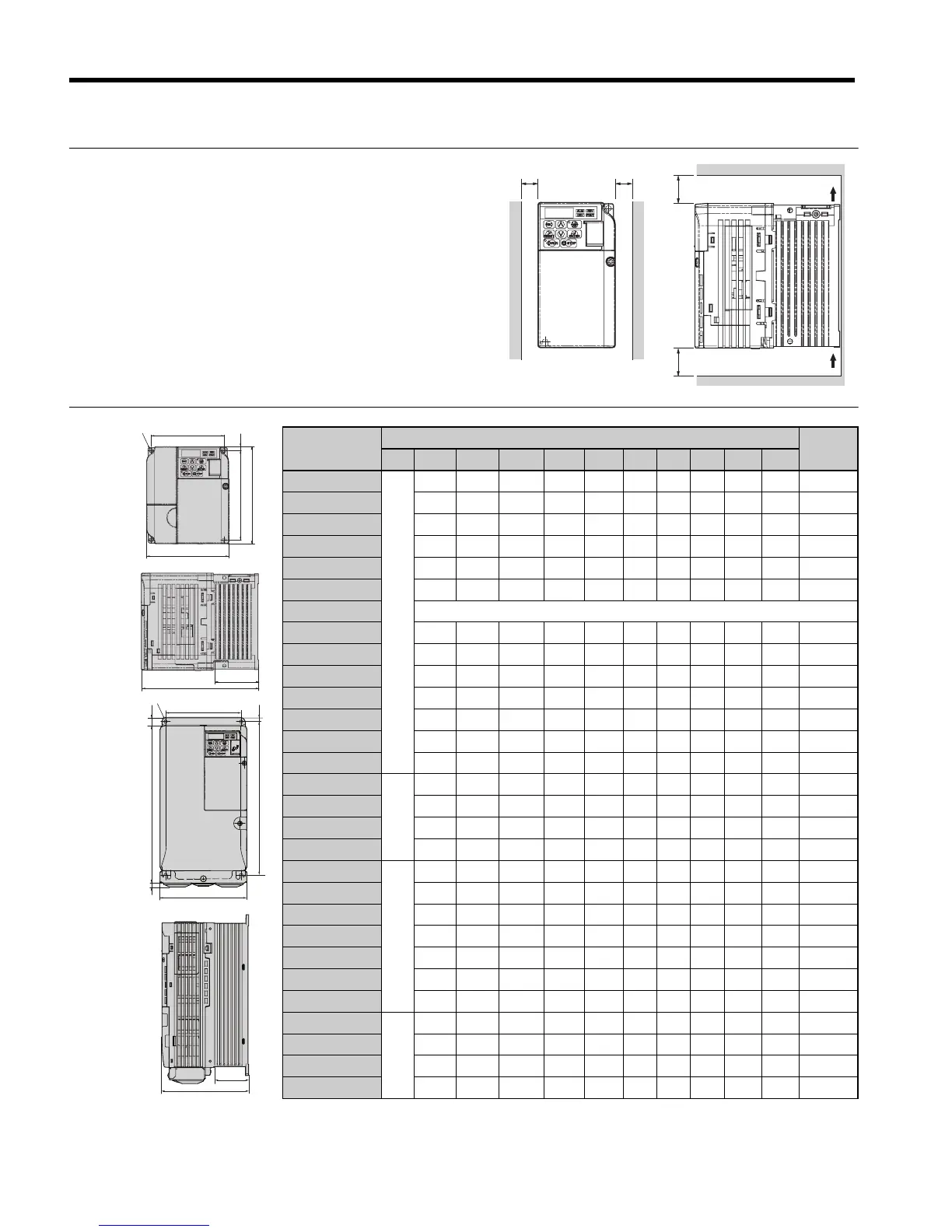

Installation Orientation and Spacing
Always install the drive in an upright position.
Leave space around the unit for proper cooling
as shown in the figure on the right.
Note: Several units can be installed closer
together than shown in the figure by
using “Side-by-Side” mounting. For
details please refer to the instruction
manual.
Dimensions
Model
VZA*
Dimensions (mm)
Weight
(kg)
Fig. W H D W1 H1 H2 H3 H4 D1 d
B0P1
A
68 128 76 56 118 5 - - 6.5 M4 0.6
B0P2 68 128 76 56 118 5 - - 6.5 M4 0.7
B0P4 68 128 118 56 118 5 - - 38.5 M4 1.0
B0P7 108 128 137.5 96 118 5 - - 58 M4 1.5
B1P5 108 128 154 96 118 5 - - 58 M4 1.5
B2P2 140 128 163 128 118 5 - - 65 M4 2.1
B4P0 under development
20P1 68 128 76 56 118 5 - - 6.5 M4 0.6
20P2 68 128 76 56 118 5 - - 6.5 M4 0.6
20P4 68 128 108 56 118 5 - - 38.5 M4 0.9
20P7 68 128 128 56 118 5 - - 38.5 M4 1.1
21P5 108 128 129 96 118 5 - - 58 M4 1.3
22P2 108 128 137.5 96 118 5 - - 58 M4 1.4
24P0 140 128 143 128 118 5 - - 65 M4 2.1
25P5
B
140 254 140 122 248 6 13 6.2 55 M5 3.8
27P5 140 254 140 122 248 6 13 6.2 55 M5 3.8
2011 180 290 163 160 284 8 15 6.2 75 M5 5.5
2015 220 358 187 192 336 7 15 7.2 78 M5 9.2
40P2
A
108 128 81 96 118 5 - - 10 M4 0.8
40P4 108 128 99 96 118 5 - - 28 M4 1.0
40P7 108 128 137.5 96 118 5 - - 58 M4 1.4
41P5 108 128 154 96 118 5 - - 58 M4 1.5
42P2 108 128 154 96 118 5 - - 58 M4 1.5
43P0 108 128 154 96 118 5 - - 58 M4 1.5
44P0 140 128 143 128 118 5 - - 65 M4 2.1
45P5
B
140 254 140 122 248 6 13 6 55 M5 3.8
47P5 140 254 140 122 248 6 13 6.2 55 M5 3.8
4011 180 290 143 160 284 8 15 6 55 M5 5.2
4015 180 290 163 160 284 8 15 6 75 M5 5.5
30mm 30mm
100mm
100mm
Air
Air
B
IP20 / Nema
Type
1
A
IP20 / Open
Chassis
D
D1
d
H
W1
W
H1
H2
D
D1
W
W1
H
H3
H4
H2
d
H1
