Omron V600 Series Operation Manual

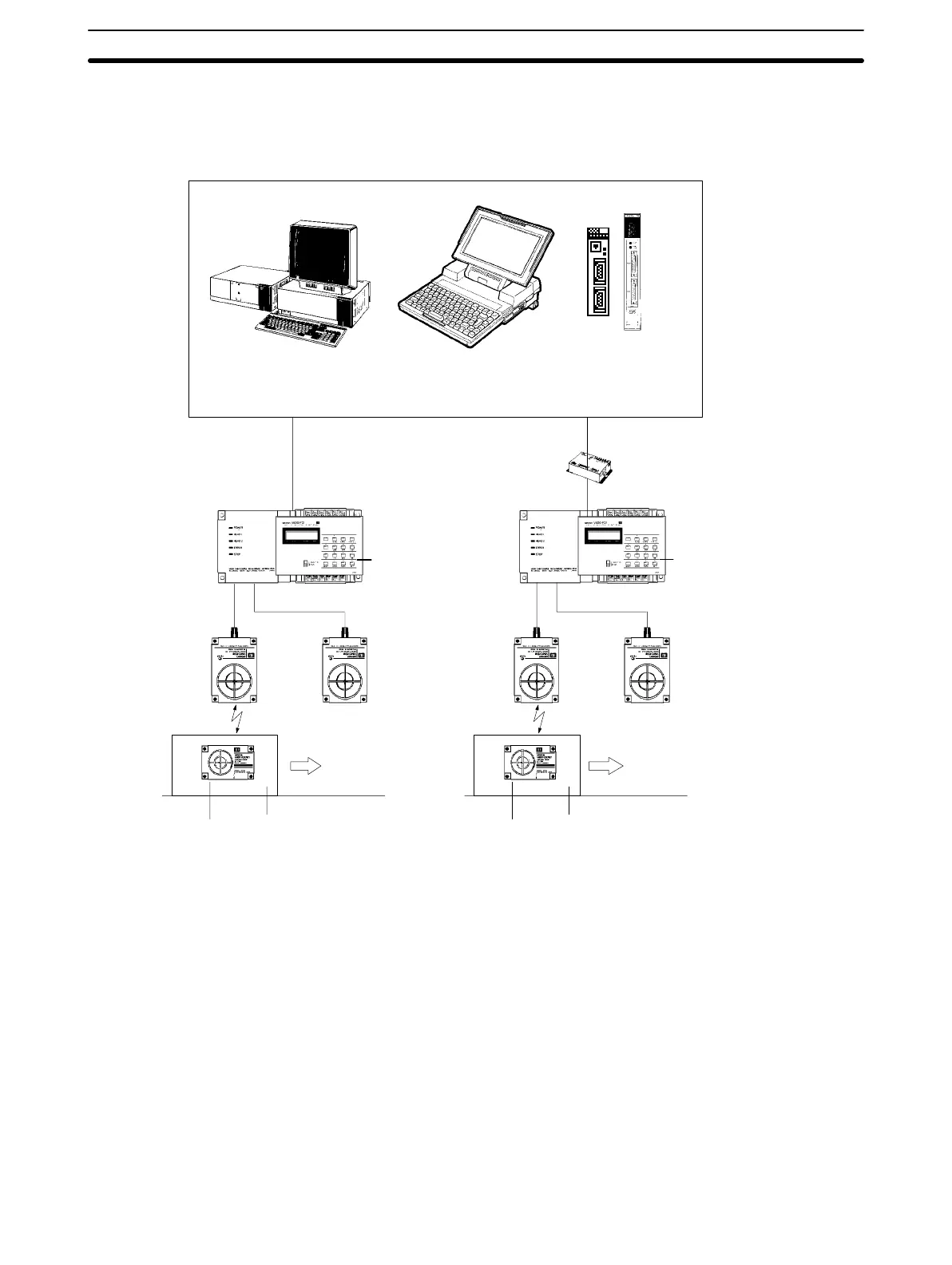

1-2SectionSystem Configuration
3
All communications processing is controlled in the operational mode of the host
computer’s command language (IBM PC/AT or compatible).
Factory Computer
RS-232C
RS-232C
Pallet, etc. Data Carrier
V600-CA2A-Vj
ID Controller
Read/W rite Head
Pallet, etc. Data Carrier
(when V600-CA1A-V j is used) (when V600-CA2A-V j is used)
V600-P01
Monitor Unit
V600-CA1A-Vj
ID Controller
Read/W rite Head
V600-P01;
Monitor Unit
B500-AL004(-P)
RS-422 Link
Adaptor
Personal Computer
C200H-ASC02 or
C500-ASC04
ASCII Unit
Read/Write Head (R/W Head) The R/W Head enables contactless communications with a Data Carrier (DC)
mounted on a stationary or moving pallet or other means of conveyance. The
epoxy resin mold makes it highly durable, maintenance free, and ensures stable
operation.
Data Carrier (DC) The Data Carrier can record data such as production indicators, and data can be
read or written at any time using the Read/Write Head. The DC is molded with
epoxy resin to withstand severe operating conditions and is suf ficiently compact
to be attached anywhere.
Monitor Unit This convenient monitoring tool enables the user to communicate with DCs with -
out connecting to a host computer, as well as allowing readout of error condi-
tions. Refer to
Section 4 Monitor Unit Operation .

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
