path to the host computer is cleared and the host computer can then send com -
mands to the ID Controller’s other R/W Head.
(Host Computer)
Polling auto
command
Sub-
command
Response
DC
Response
Head 1
(ID Controller) (DC)
Not close
Not close
(Head 1)
(Head 2)
(Head 1)
Polling auto
command
(Inquiry to head 1)
Sub-
command
(Inquiry to head 1)
Response
(Head 2)
(Not close
to head 1)
Head 1
processing
completed
Read/W
rite
Processing
Response
Passes on
Not close
Sub-
command
(Inquiry to head 2)
Response
Not close
(Not close
to head 2)

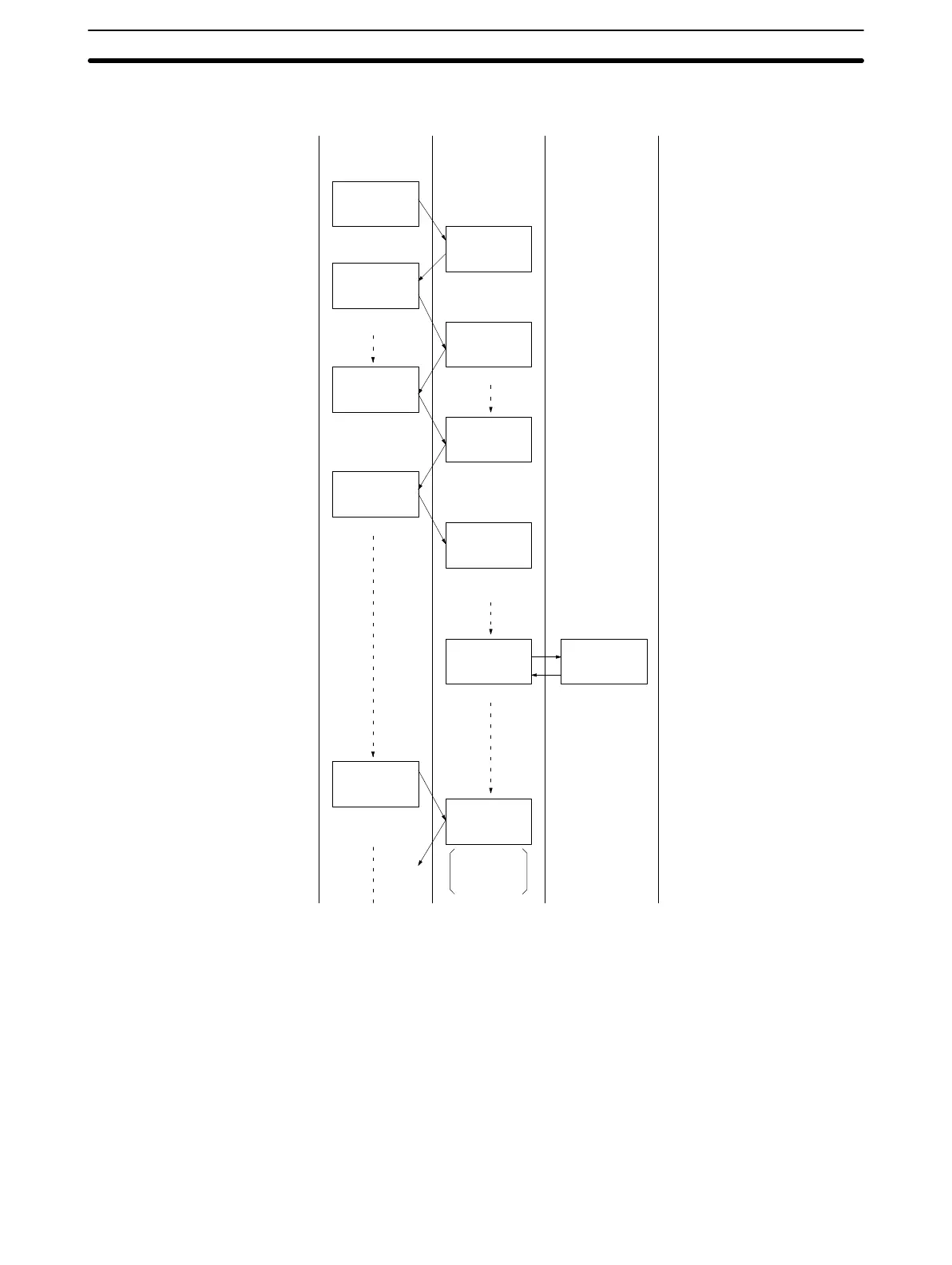

1, 2, 3... 1. A polling auto command is sent to Head 1.
2. The ID Controller receives the command and returns a response indicating
that it has received the command.
3. A polling auto command is sent to Head 2.
4. The
ID Controller receives the command and returns a response indicating
that it has received the command.
5. The
host computer can query the status of processing using subcommands
or suspend polling auto processing.
6. When
the DC is not close to the specified R/W Head, a “not close” response
is returned in response to a query subcommand.
7. When
the DC passes in front of a R/W Head, write or read processing is per -
formed.

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
