Omron V600 Series Operation Manual

2-2SectionMonitor Unit
12

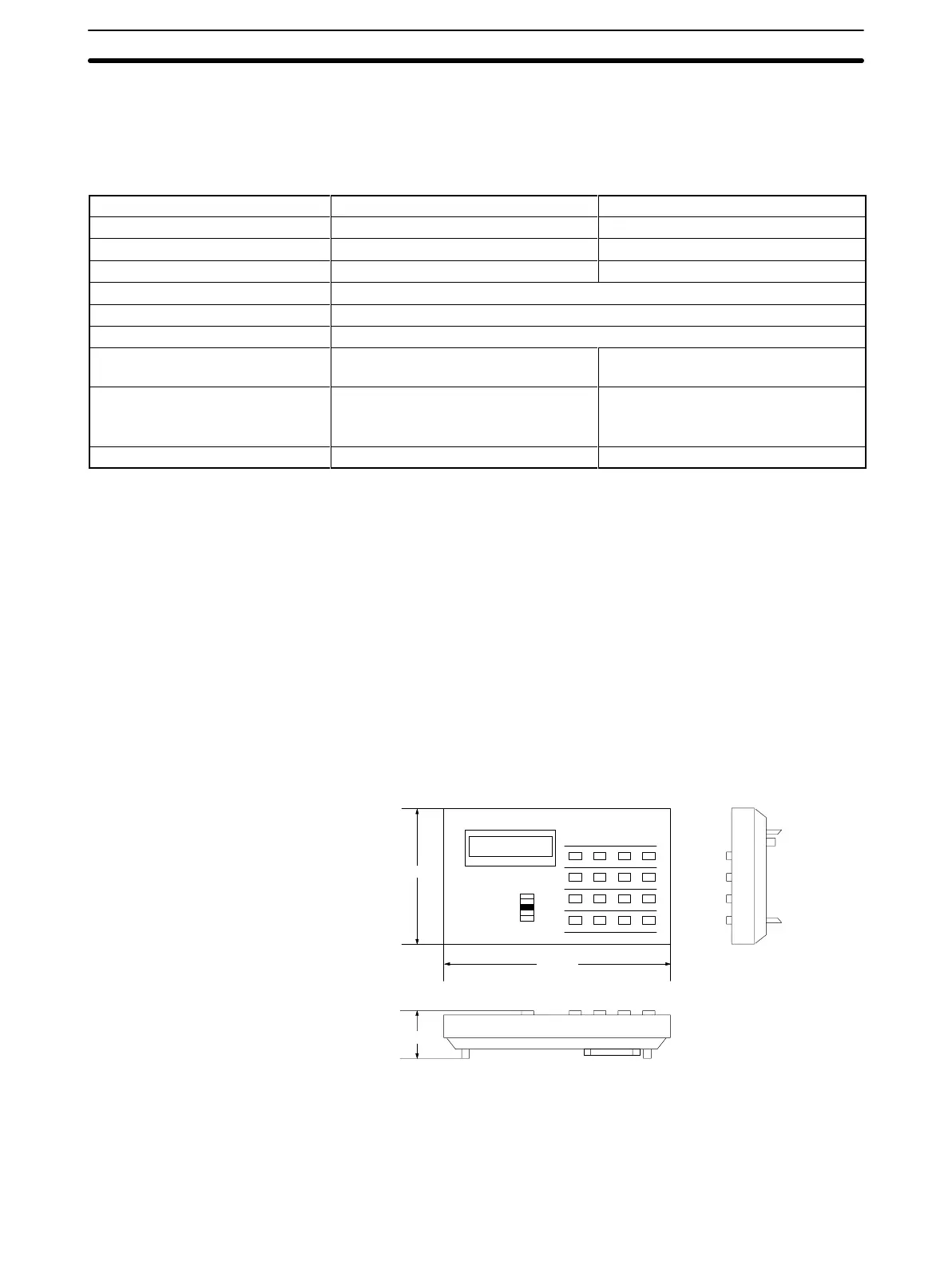

2-1-5 Host Computer Communications Specifications
Any general-purpose factory computer or personal computer conforming to the
RS-232C Interface or RS-422 Interface can be connected. The communications
protocol conforms to SYSMAC WAY Host Link System.
Model V600-CA1A-Vj V600-CA2A-Vj
Standard RS-232C RS-422
Transmission path connection 1 to 1 1 to N (16 Units max.)
Communications format 2 lines, half duplex 4 lines, half duplex
Sync format Start-stop sync, stop bit: 1 or 2 (see note)
Transmission specification 1,200, 2,400, 4,800, 9,600 bps or 19.2k bps (see note)
Transmission code ASCII (7 bits) or JIS (8 bits) (see note)
Communications control
procedure
1 to 1 procedure 1 to 1 procedure or 1 to N procedure
Error detection Vertical parity: odd/even/none (see
note)
Vertical parity: odd/even/none (see
note)
Horizontal parity: 1 to N procedure
Path length 15 m max. T otal length: 500 m
Note These items are set with internal DIP switches. Refer to page 83.
2-2 Monitor Unit
2-2-1 General Specifications
General specifications are the same as those for the ID Controller . Note that the
operating ambient temperature must be in the range 0°C to 40°C.
2-2-2 Dimensions
80.6
22.6
120.6
Refer to Section 4 Monitor Unit Operation for information on the functions and
operating procedures of the Monitor Unit.
Note Remove the Monitor Unit before starting system operation.

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
