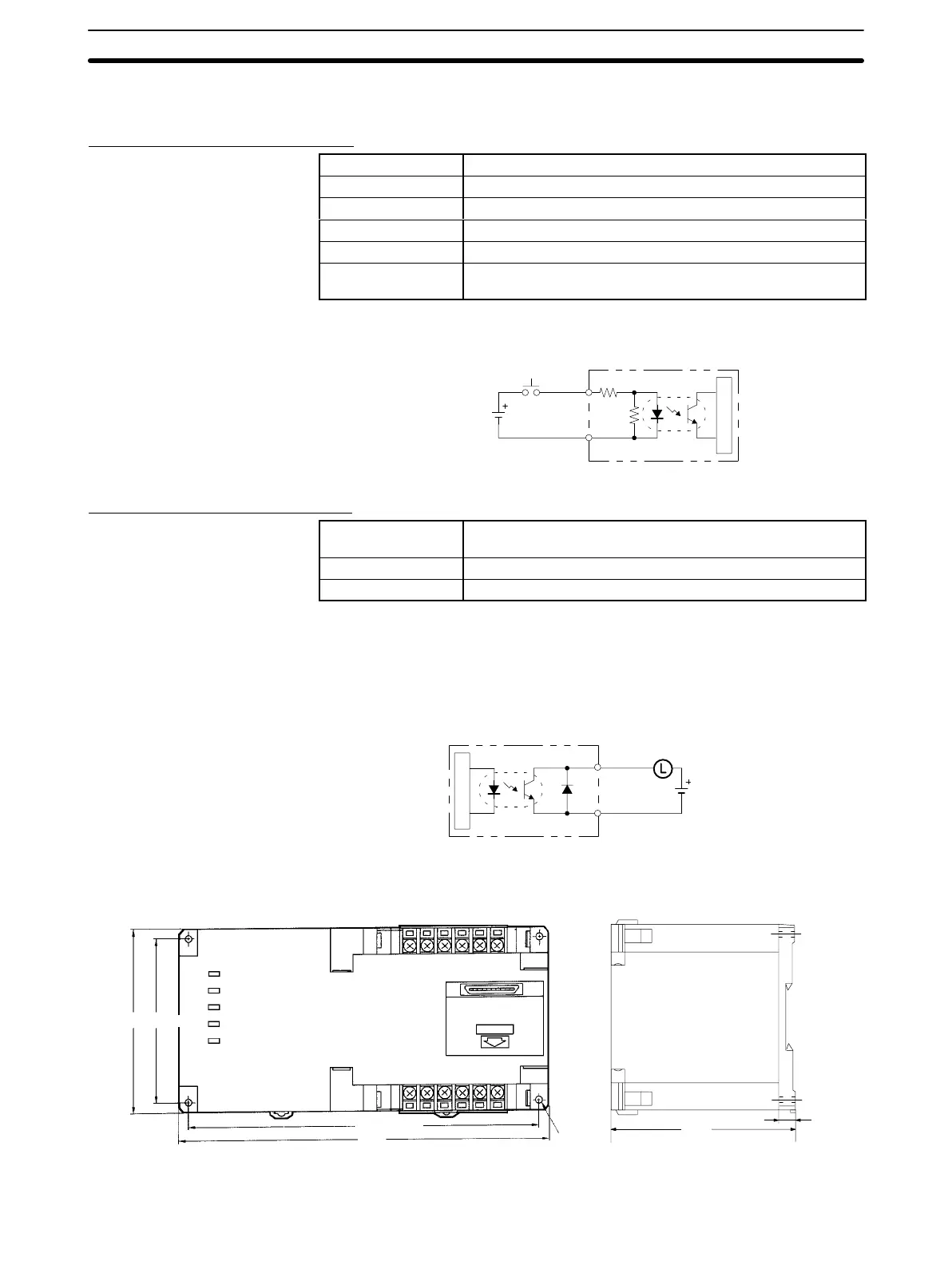

2-1SectionV600-CAjA-Vj ID Controller
11
2-1-3 External Input/Output Specifications
Input Specifications (RESET)
Input voltage 24 VDC: +10% (including ripple component), –15%
Input impedance 2.2 k
Input current 10 mA typ. (24 VDC)
On voltage 19 V min.
Off voltage 5 V max.
Input response
time
70 ms max.
Circuit Diagram
RESET
terminal
COM(0V)
ID
Controller
2.2k
330k24VDC
Intemal circuitry
Output Specifications (Error)
Maximum
switching capacity
24 VDC: +10% (including ripple component) 100 mA, –15%
Leak current
100
µA max.
Residual voltage 1.5 V Max.
Note 1. When
RESET input is ON, the CPU stops operation, and the ST
OP indicator
lights. At this time the ERROR output is reset.
2. If short-circuited without load, the internal transistor may be damaged.
Circuit Diagram
ID
Controller
ERROR
Relay,etc.
0V
24VDC
Intemal circuitry
2-1-4 Dimensions
200
100
Four
, 4.3-dia.
mounting holes
100
9.3
90±0.2
190±0.2
