Omron V600 Series Operation Manual

4-1SectionUsing Monitor Unit (V600-P01)
55

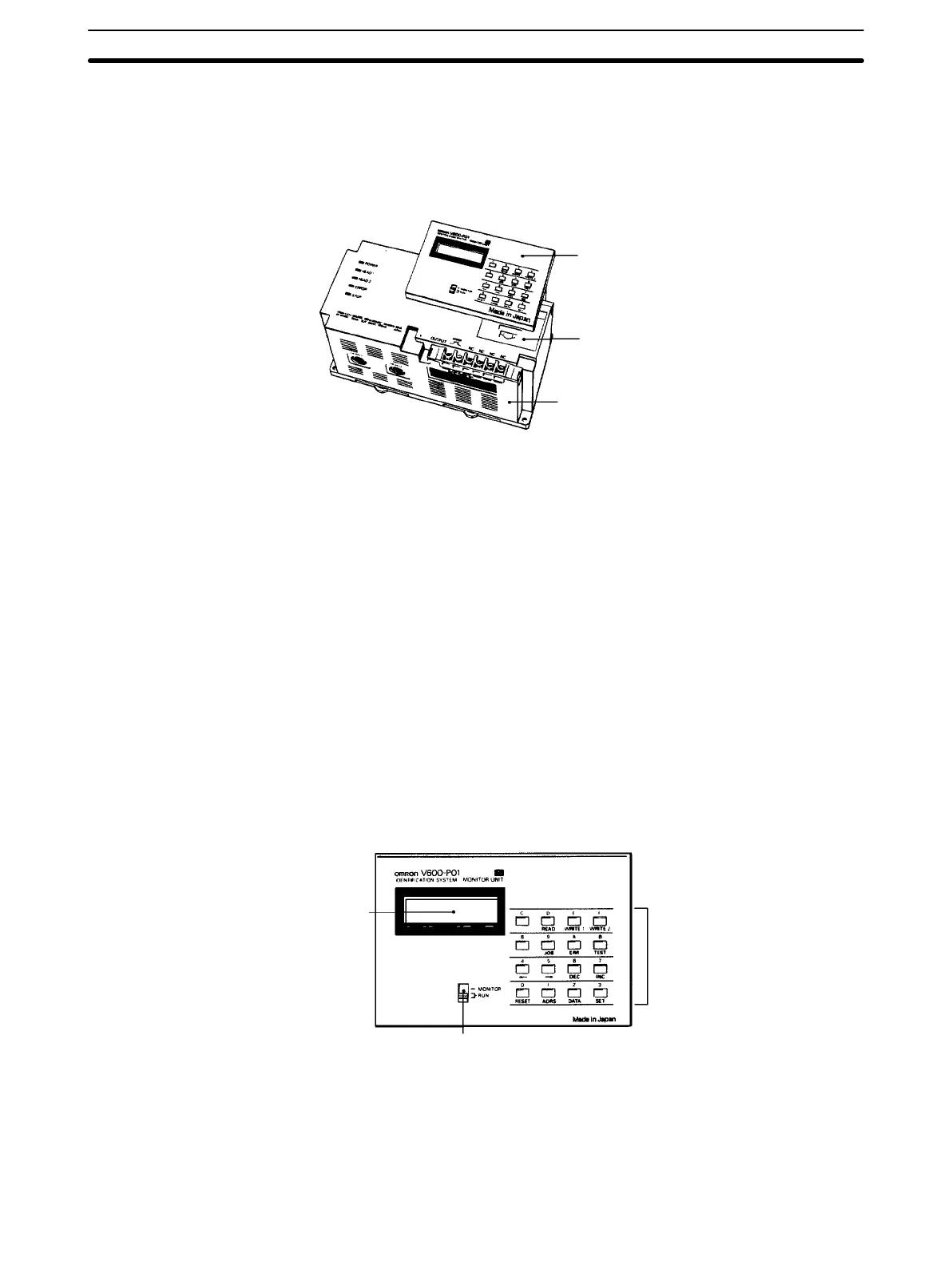

4-1-2 Mounting the Monitor Unit
The Monitor Unit is attached by sliding the ID Controller connector cover in the
direction of the arrow on the cover . Press the four tabs on the back of the Monitor
Unit down until they lock to make sure that it is mounted properly and securely .
Monitor Unit
Connector cover
ID Controller
Note 1. The Monitor Unit can be mounted while power is applied to the ID Controller .
Note, however, that the ID Controller mode when the Monitor Unit is not
mounted is the RUN Mode. This means that when the Monitor Unit mode
switch
is set to MONIT OR Mode when the Monitor Unit is mounted on the ID
Controller, the ID Controller ’ s mode will change from the RUN Mode to the
MONITOR Mode. Special care must be exercised at this point.
2. If power is applied to the ID Controller with the Monitor Unit attached,
information showing that power is being applied is displayed on the Monitor
Unit display, but this operation has no effect on operation of the device.
3. There
are three positions on the mode switch, two of which specify the RUN
Mode. It does not matter which setting is used.
4. When the Monitor Unit is removed, the ID Controller reverts to the RUN
Mode, regardless of which mode it was set in.
4-1-3 Nomenclature
Display
Mode switch
Operation
Keys
Display All data is displayed here in the MONIT OR Mode. In the RUN Mode, only “RUN”
is displayed.
Mode Switch This is used to switch the operation mode of the ID Controller.

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
