Omron V680-CA5D01-V2

35
RFID System
User’s Manual
SECTION 2
Connection and Wiring
SECTION 2
Installation, Connections, and Wiring

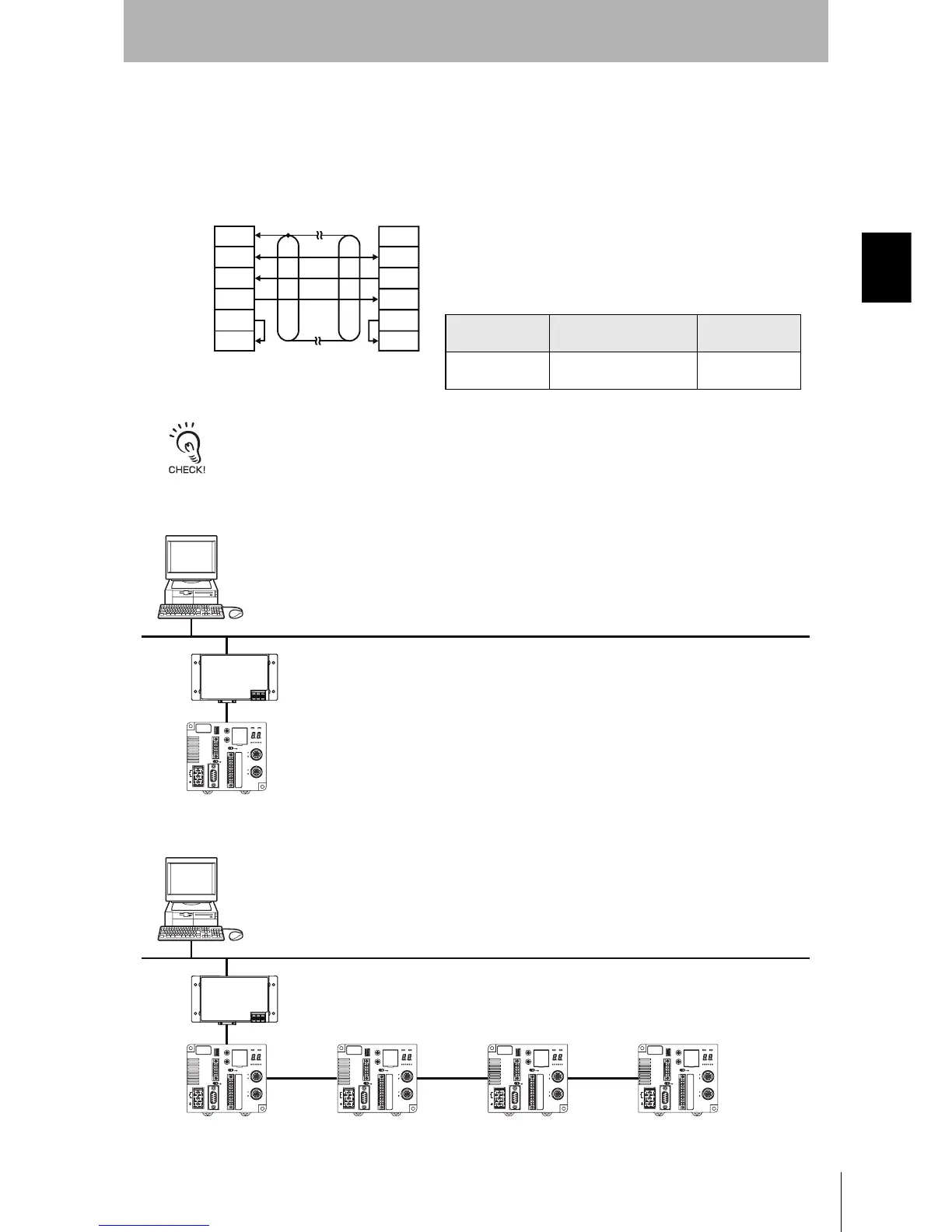

 Connecting to Ethernet
The ID Controller can be connected to the host device through an OMRON ITNC-SGB01 Serial Gate
Box to enable Ethernet TCP/IP communications. An ID Controller connected through a Serial Gate Box
can be communicated with in exactly the same way as when the ID Controller is connected through the
serial interface.
Refer to the ITNC-SGB01 Serial Gate Box manual for details on the Serial Gate Box.
1:1 Connection
1:N Connections
Model
Rated power supply volt-
age
Power consump-
tion
ITNC-SGB01
DC24V +10%
−15%
3 W max.
ID ControllerSerial Gate Box
(Shield)
GR
SG
SD
RD
RS
CS
GR
SG
RD
SD
RS
CS
10Base-T/100Base-TX
Serial Gate Box
ITNC-SGB01
ID Controller
RS-232C
Personal computer
10Base-T/100Base-TX
Serial Gate Box
ITNC-SGB01
ID Controller
RS-232C
ID ControllerID Controller ID Controller
RS-422/RS-485 RS-422/RS-485 RS-422/RS-485
Personal computer
