SECTION 2
Connection and Wiring
SECTION 2
Installation, Connections, and Wiring
Connecting and Disconnecting the Connector

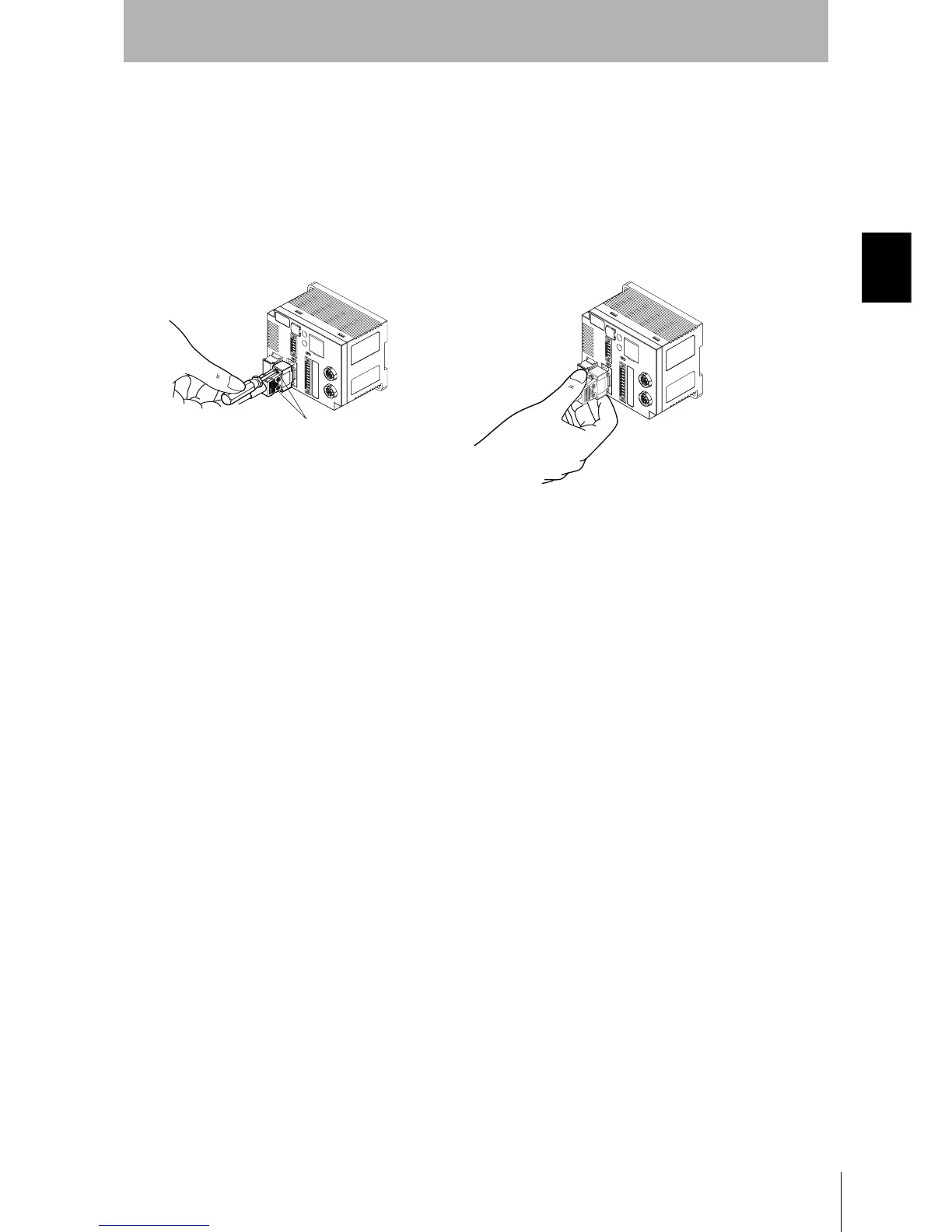

• When connecting the connector, be sure to hold the connector by hand and fully insert the connector.
Secure the connector by tightening the two lock screws with a Phillips screwdriver.
Recommended tightening torque: 0.3 N·m
• When disconnecting the connector, completely loosen the two lock screws. Hold the protruding part
of the connector hood by hand and pull the connector straight out. If the connector is difficult to dis-
connect, hold the ID Controller with your hand while pulling on the connector.
Lock screws
