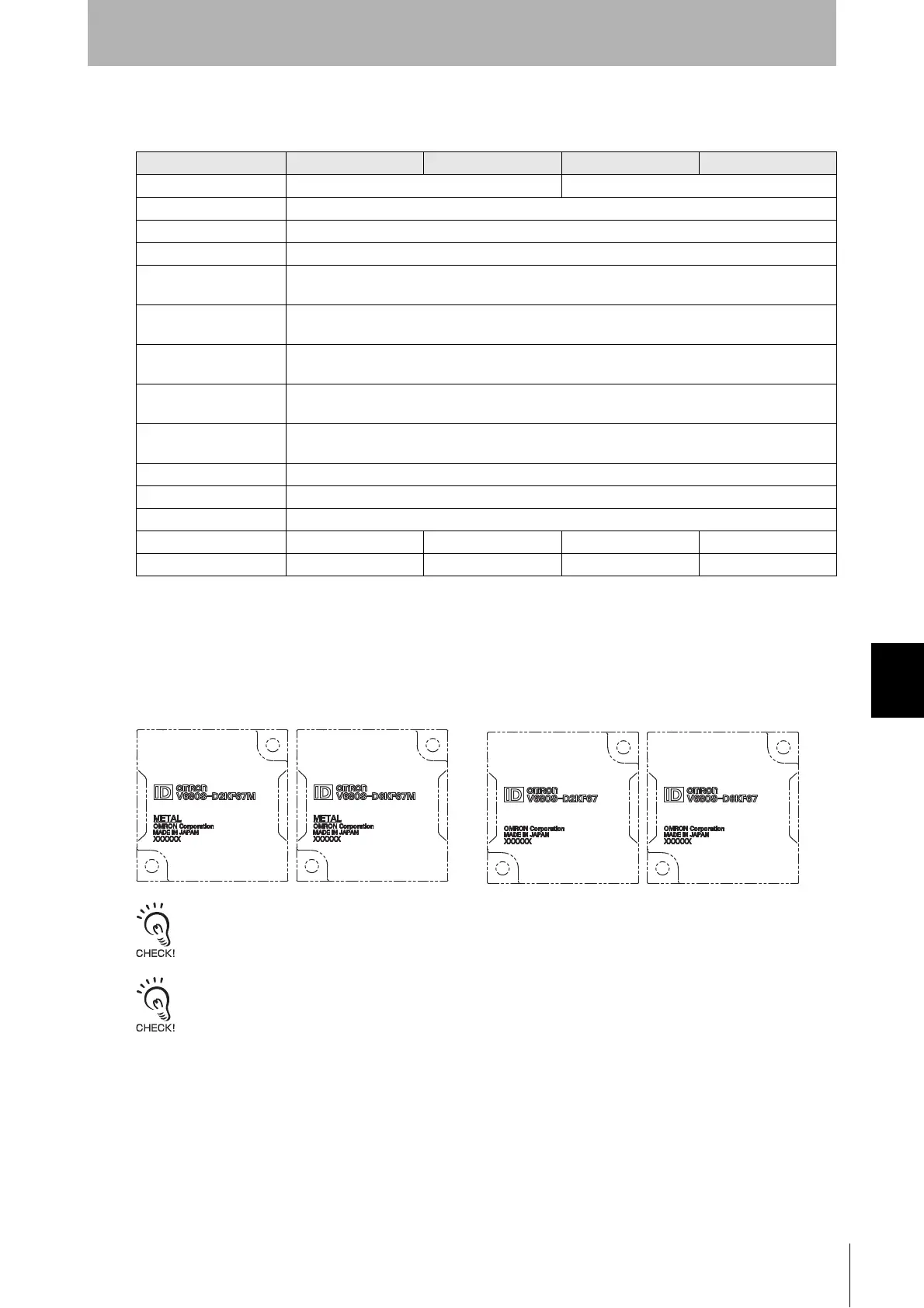

V680S-D2KF67/-D2KF67M/-D8KF67/-D8KF67M
General Specifications
The V680S-D2KF67M/-D8KF67M is designed to be mounted directly to metal. The V680S-D2KF67/-
D2KF67M/-D8KF67 and V680S-D8KF67M markings are shown in the following diagrams.
The side with the markings is the communications surface. Mount the RF Tag with this side facing the Antenna.
When using a V680S-D8KF67/-D8KF67M, to use the FL Remote ID production after October 2014.
Item Model V680S-D2KF67 V680S-D2KF67M V680S-D8KF67 V680S-D8KF67M
Memory capacity 2,000 bytes (user area) 8,192 bytes (user area)
Memory type FRAM
Data Retention 10 years after writing (85C or less)
Write Endurance One trillion times per block (85C or less). Access frequency
See Note 1.
: One trillion times
Ambient operating
temperature
20 to 85C (with no icing)
Ambient storage
temperature
40 to 125C (with no icing)
Ambient operating
humidity
35% to 85%
Degree of protection IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
See Note 2.
IPX9K (DIN 40 050)
Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s
2
,10 sweeps each in X, Y, and Z
directions for 15 minutes each
Shock resistance 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 40 40 5 mm
Materials Case: PPS resin
Weight Approx. 11.5 g Approx. 12 g Approx. 11.5 g Approx. 12 g
Metal countermeasures None Yes None Yes
Note 1. The number of accesses is the total number of reads and writes.
2. Oil resistance has been tested using a specific oil as defined in the OMRON test method.
V680S-D2KF67M/-D8KF67M
V680S-D2KF67-D8KF67
