Omron V680-HS63 - Installing RF Tags

35
RFID System
User's Manual
SECTION 2
Installing RF Tags
SECTION 2
Installation, Connections, and Wiring
Installing RF Tags
V680-D1KP52MT
 RF Tag Installation

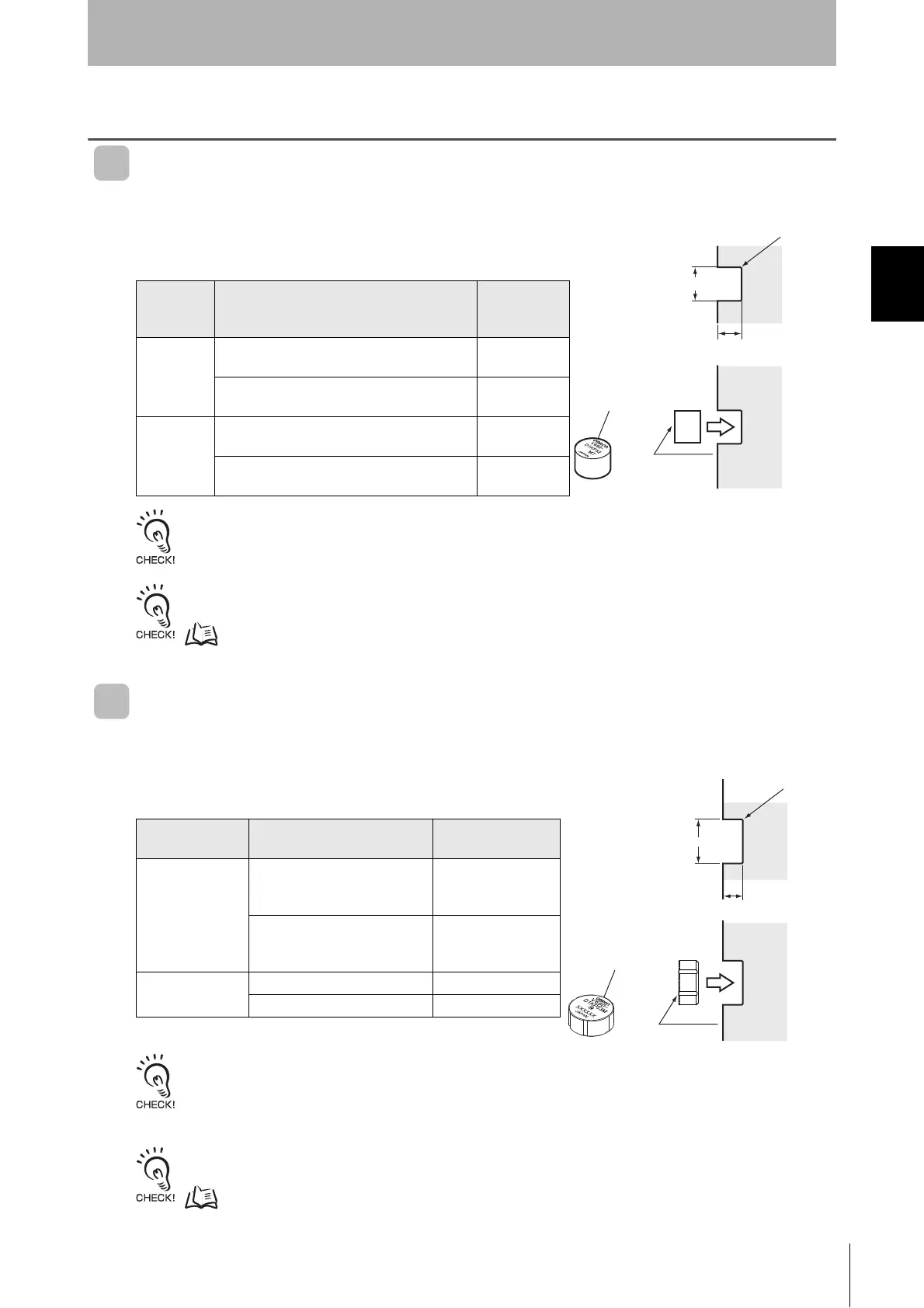

Mount RF Tags as shown in the diagram on the right. The
epoxy adhesives listed in the following table are recommended
for the given temperature ranges.
When embedding the V680-D1KP52MT into a metal surface, use the V680-HS51/-HS52 Antenna.
Communications will not be possible if the V680-HS63 Antenna is used.
Refer to Differences in Surrounding Metals(Reference) in Section 7 Appendices for information on the effect of metal
behind the V680-D1KP52MT.
p.143
V680-D1KP53M
 RF Tag Installation Direction
Mount the RF Tags as shown in the diagram on the right. The
epoxy adhesives listed in the following table are
recommended for the given temperature ranges.
When embedding the V680-D1KP53M into a metal surface, use the V680-HS51/-HS52 Antenna.
Communications will not be possible if the V680-HS63 Antenna is used.
Refer to Differences in Surrounding Metals(Reference) in Section 7 Appendices for information on the effect of metal
behind the V680-D1KP53M.
p.145
Ambient
operating
temperature
Product name Manufacturer
40 to 70C
Two-part Epoxy-compound Resin:
TB2001 (main agent)/TB2105C (curing agent)
Three Bond
Co., Ltd.
One-part Moisture-curing Elastic Adhesive
TB1530
Three Bond
Co., Ltd.
40 to
150C
One-part Epoxy Resin: TB2285 Three Bond
Co., Ltd.
Two-part Epoxy Resin: TB2087 Three Bond
Co., Ltd.
Ambient operating
temperature
Product name Manufacturer
40 to 70C
Two-part Epoxy-compound
Resin: TB2001 (main agent)/
TB2105C (curing agent)
Three Bond Co., Ltd.
One-part Moisture-curing
Elastic Adhesive
TB1530
Three Bond Co., Ltd.
40 to 150C
One-part Epoxy Resin: TB2285 Three Bond Co., Ltd.
Two-part Epoxy Resin: TB2087 Three Bond Co., Ltd.
R0.2 max.
Marked side
Marked side
8.1
+0.1
0
dia.
5
+0.1
0
R0.5 max.
V680D1KP53M
Marked side
Marked side
10
+0.09
dia.
0
4.6
+0.2
0
