34
SECTION 2
Installing Antennas
RFID System
User's Manual
SECTION 2
Installation, Connections, and Wiring
V680-HS65
Securely tighten screws to a torque of 0.7 to 1.2 N·m.

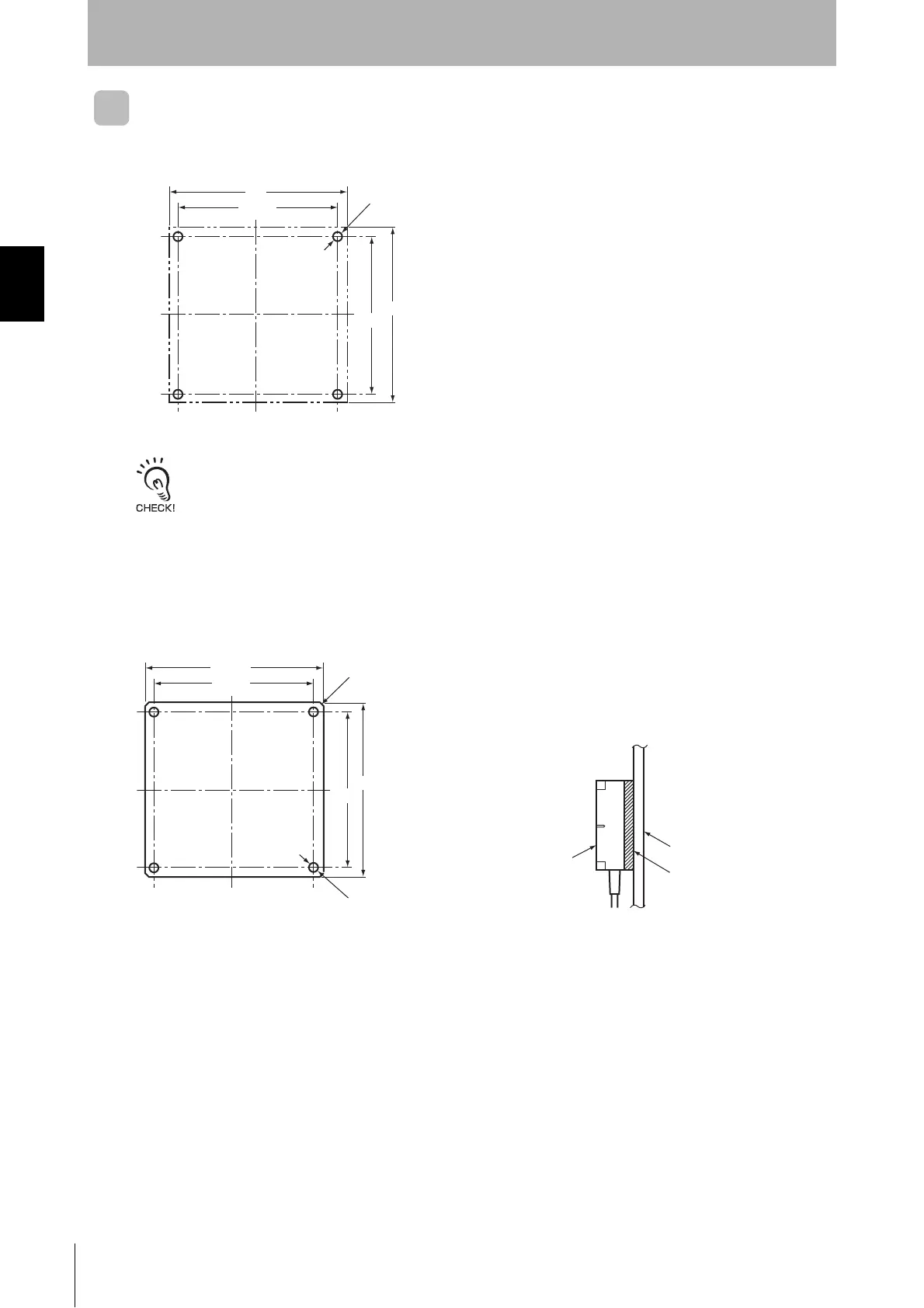

Mounting Bracket Dimensions (Provided Only with the V680-HS65)
Use M4 screws and spring washers (in four places) for
Antenna installation.
Note: When installing the Antenna, mount it on the
enclosed Mounting Bracket. The Mounting Bracket
is not necessary, however, if the Antenna is
mounted on a metal base that is larger than the
Antenna (100 100 mm).
Four, M4
90
±0.2
90±0.2
100
100
Four, C1
90
±0.1
100±0.2
100±0.2
90±0.1
Four, 4.5
+0.3
0
dia.
V680-HS65
Mounting base
Mounting Bracket
(provided)
To Next Page
