RFID System
User's Manual
SECTION 2
Installing Antennas
SECTION 2
Installation, Connections, and Wiring
V680-HS63-SP

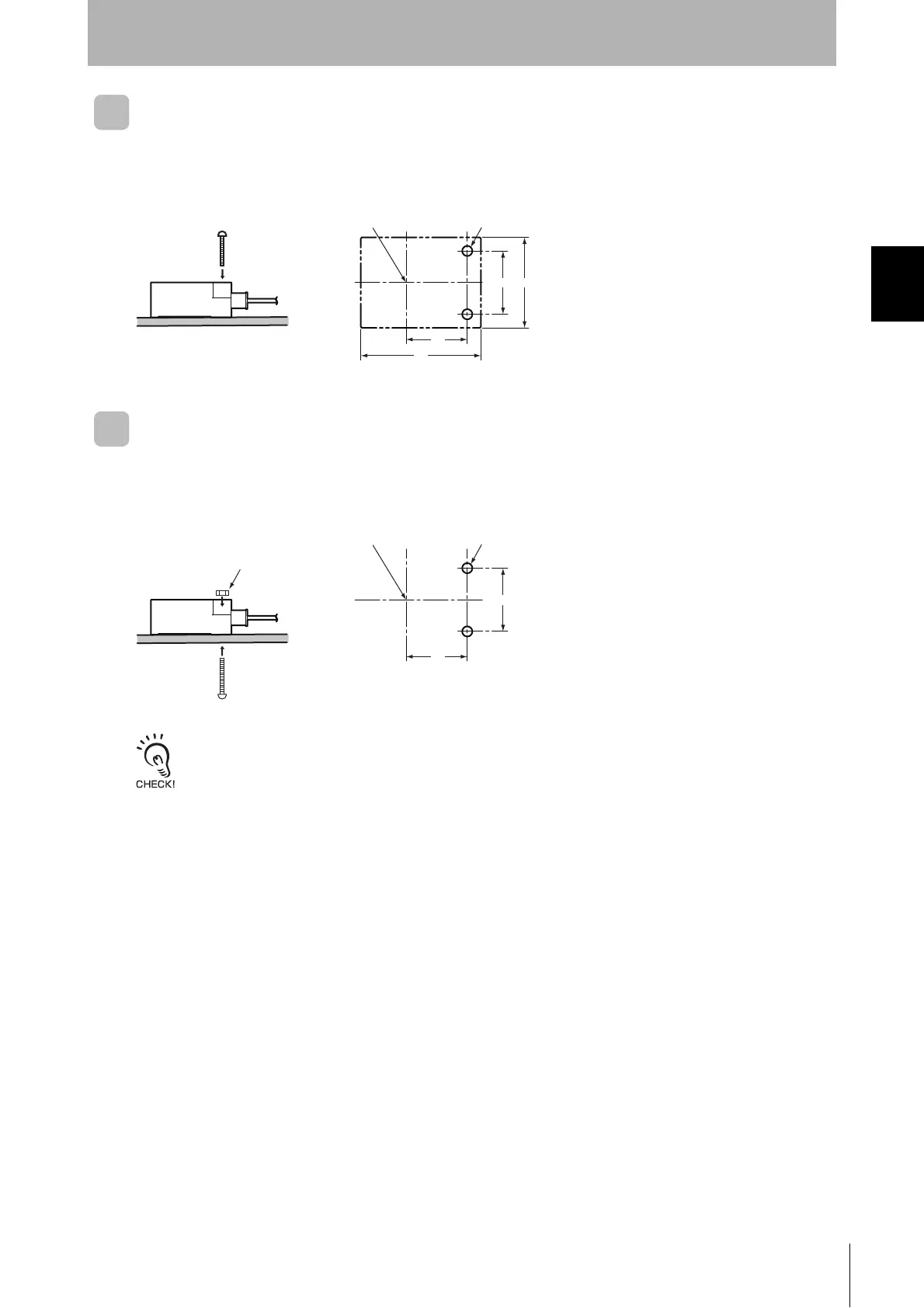

Installation from the Front
Secure the Unit with M4 screws and washers.
Installation from the Back
Installation from the Back
Secure the Unit with M4 screws and washers.
Securely tighten screws to a maximum torque of 1.2 N·m.
Two, M4 holesCoil center
53
27
28±0.2 40
Two, 4.5 dia. holesCoil center
27
28±0.2
Nut
To Next Page
