SECTION 4

Communications Specifications

RFID System

User's Manual

SECTION 4

Functions

Communications Specifications

With the FL Remote ID, communications with the RF Tags is determined by the operating mode set on the

mode switch, the command selected, and the options selected to execute the command.

Operating mode

There are four operating modes.

For the mode settings, refer to Part Names and Functions in Section 1.

p.13

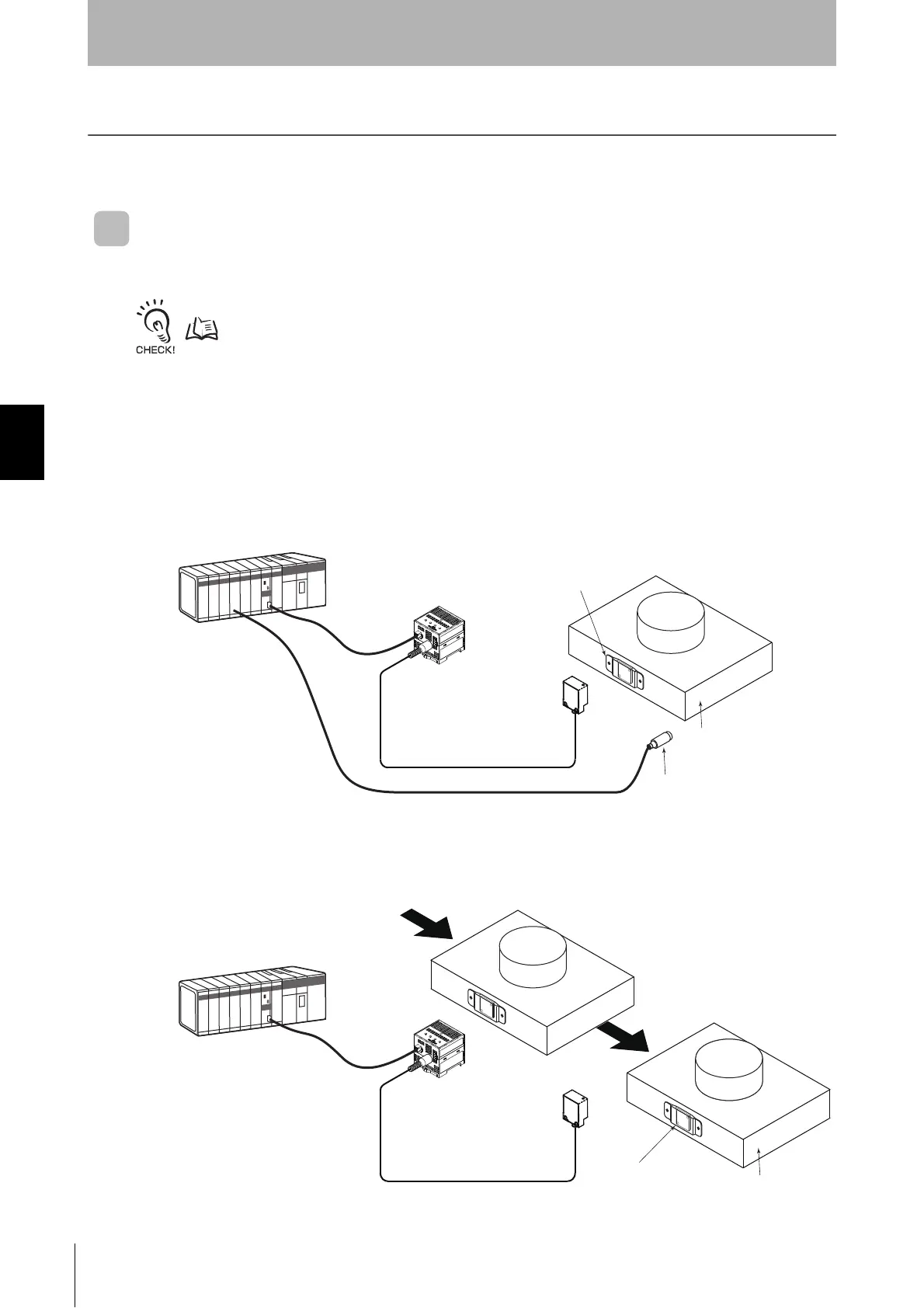

■ Trigger Mode

When the RF Tag on a workpiece or palette moves within the communications range of the Antenna, it

is detected by a sensor or a switch. A control signal (trigger signal) is output from the PLC to the FL

Remote ID, which triggers the FL Remote ID to begin communications with the RF Tag. The FL

Remote ID reads the RF Tag data and outputs the results to the PLC.

■ Auto Mode

When the RF Tag of a workpiece or palette is within the communications range of the Antenna, the

Remote ID automatically begins communications with the RF Tag and outputs the result to the PLC.

Antenna

V680-HS63-SP

Sensor or Switch

Palette, etc.

FL Remote

Master Unit

FL Remote ID

V680-HAM42-FRT

RF Tag

V680-D1KP66T-SP
