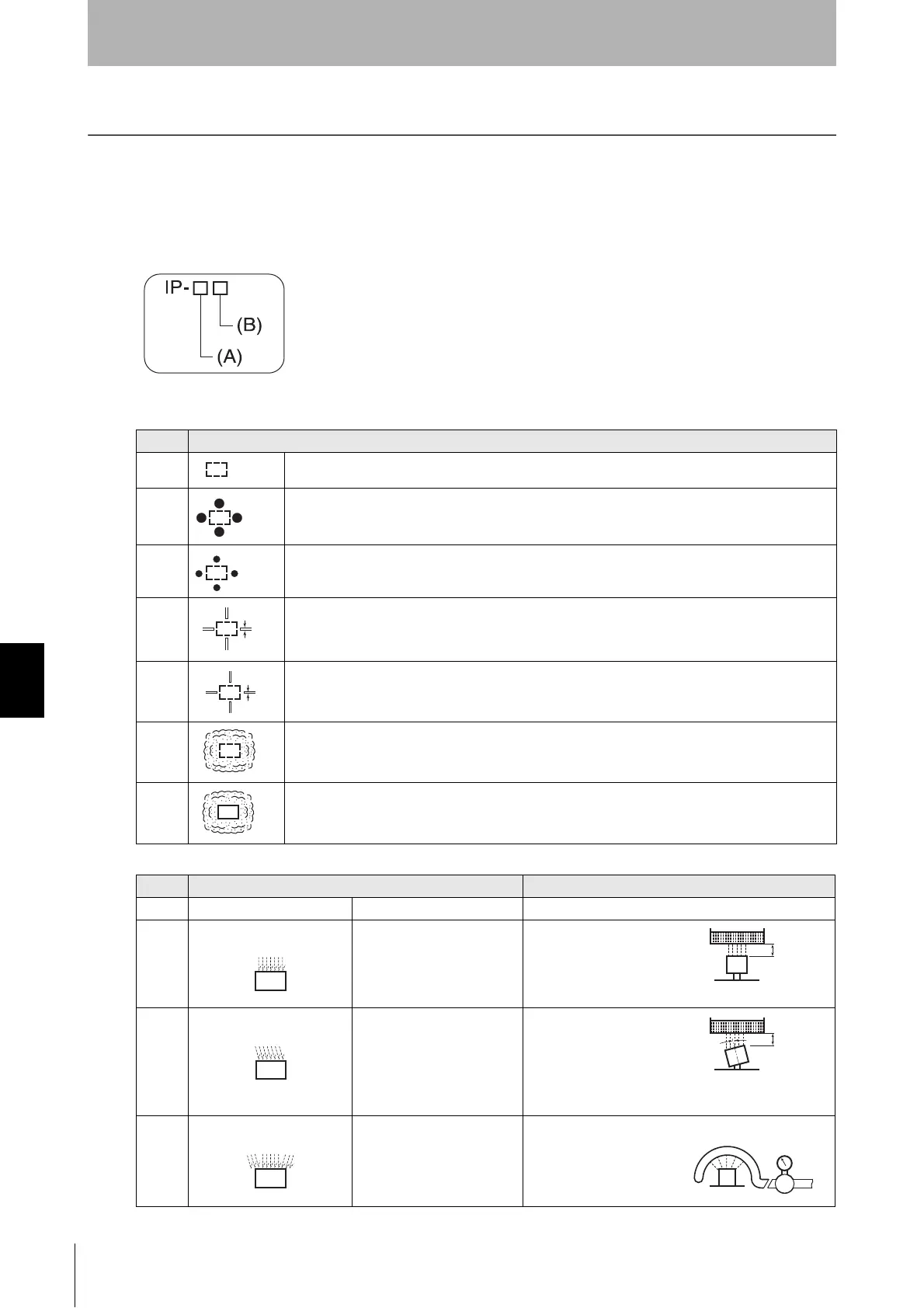

Ingress protection degrees (IP-@@) are determined by the following tests. Be sure to check the sealing
capability under the actual operating environment and conditions before actual use.
■ IEC (International Electrotechnical Commission) Standards
IEC 60529: 2001
(A) First Digit: Degree of Protection from Solid Materials
(B) Second Digit: Degree of Protection Against Water
Degree Protection
0
No protection
1
Protects against penetration of any solid object such as a hand that is 50 mm or more in diameter.
2
Protects against penetration of any solid object, such as a finger, that is 12.5 mm or more in diame-
ter. Even if finger or other object 12 mm in diameter penetrates, it will not reach a hazardous part.
3
Protects against penetration of any solid object, such as a wire, that is 2.5 mm or more in diameter.
4
Protects against penetration of any solid object, such as a wire, that is 1 mm or more in diameter.
5
Protects against penetration of dust of a quantity that may cause malfunction or obstruct the safe
operation of the product.
6
Protects against penetration of all dust.
Degree Protection Test method (with pure water)
0 No protection Not protected against water. No test
1 Protection against water
drops
Protects against vertical
drops of water towards the
product.
Water is dropped vertically
towards the product from
the test machine for 10
min.
2 Protection against water
drop
Protects against drops of
water approaching at a maxi-
mum angle of 15 to the left,
right, back, and front from
vertical towards the product.
Water is dropped for 2.5
min each (i.e., 10 min in
total) towards the product
inclined 15 to the left,
right, back, and front from
the test machine.
3 Protection against sprin-
kled water
Protects against sprinkled
water approaching at a maxi-
mum angle of 60 from verti-
cal towards the product.
Water is sprinkled for 10
min at a maximum angle of
60 to the left and right
from vertical from the test
machine.
Water rate is 0.07
liter/min per hole.
