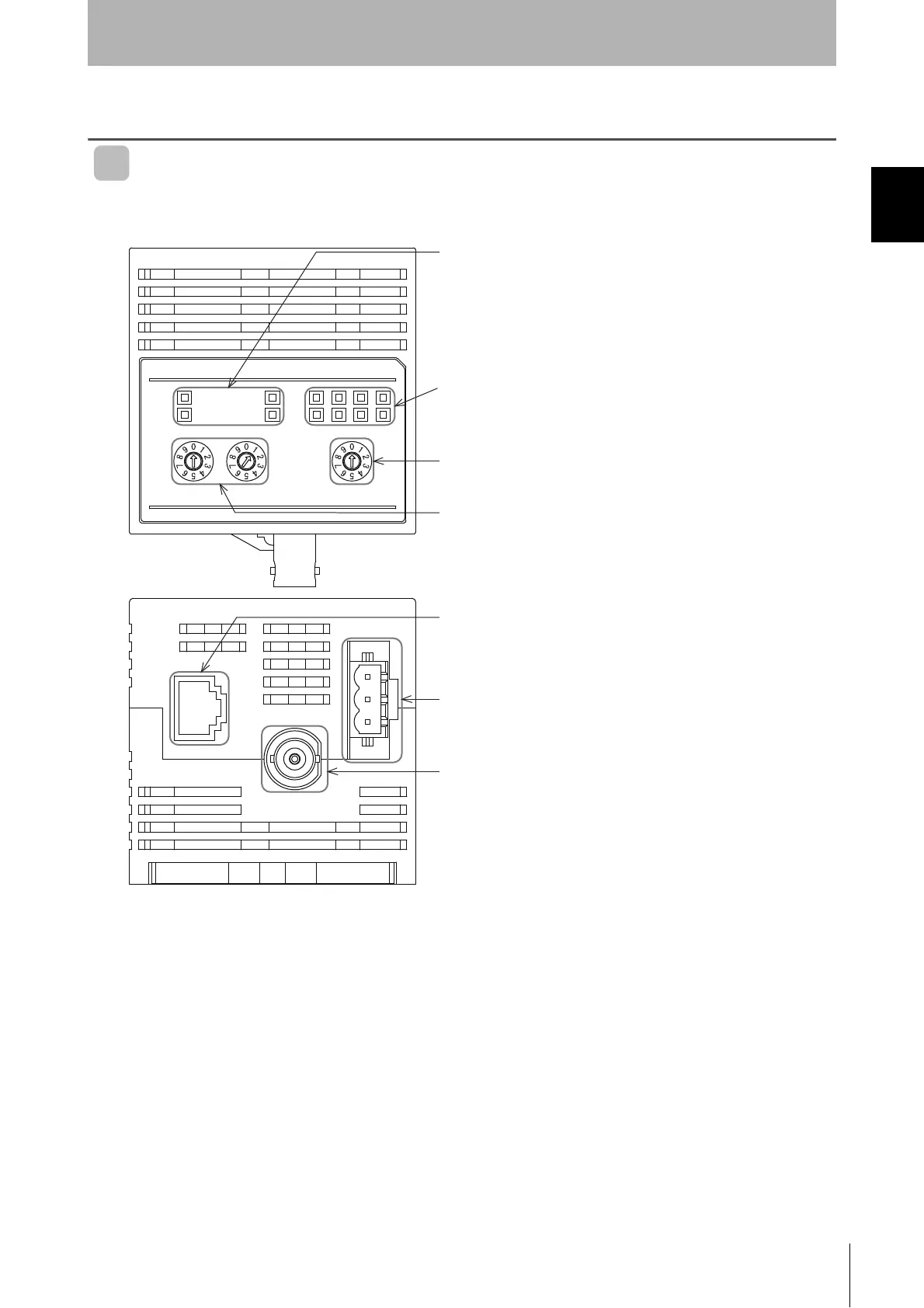

■ Operation Indicators
DEV: Unit status (green/red)
RMT: FL Remote network status (green/red)
T/R: RF Tag communications status (yellow)
NORMAL/ERROR: FL Remote ID operation result
(green/red)
■ Data Display
Data display (green)
Error code display (red)
■ Mode Switch
FL Remote ID operation mode setting switch
■ Node Address Switch
Node Address Switches (01 to 64)
■ FL Remote Connector
Connects to FL Remote Master Unit
■ Antenna Connector
Connects to V680 Series Antenna
■ Power Supply Terminals
Connect to 24-VDC power.
Recommended Power Supply: S8VS-03024 (OMRON)
