31
RFID System
User's Manual
SECTION 2
Installing Antennas
SECTION 2
Installation, Connections, and Wiring

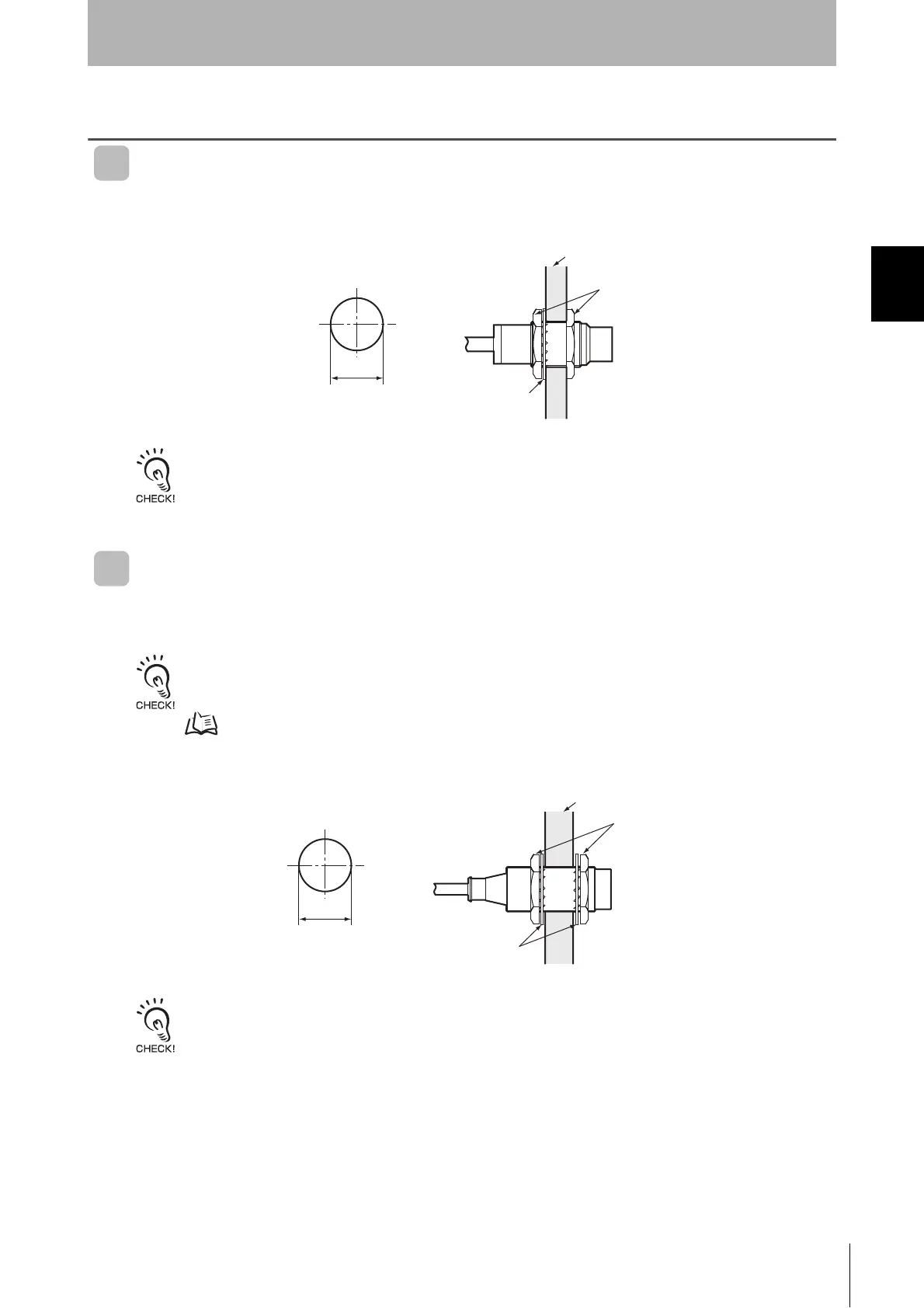

Installing Antennas
V680-HS51
Install the Antenna using the nuts and toothed washer that are provided on both sides of the mounting
material, as shown in the diagram below.
Securely tighten the screws to a torque of 6 N·m.
V680-HS52
Install the Antenna using the nuts and toothed washer that are provided on both sides of the mounting
material, as shown in the diagram below.
When the Antenna is mounted to a metallic material, the communications range will be reduced by approximately 10%
compared with mounting to a non-metallic material. For details on the effect of metal surrounding the Antenna, refer to
Effect of Surrounding Metals on the Antenna (Reference).
p.139
Securely tighten the screws to a torque of 40 N·m.
12 dia.
+0.5
0
Metallic material
Mounting Hole
Dimensions
Nuts
Toothed washer
Antenna
22 dia.
+0.5
0
Non-metallic material
Nuts
Toothed washers
Antenna
Mounting Hole
Dimensions
To Next Page
