SECTION 2
Installation, Connections, and Wiring
V680-HS63

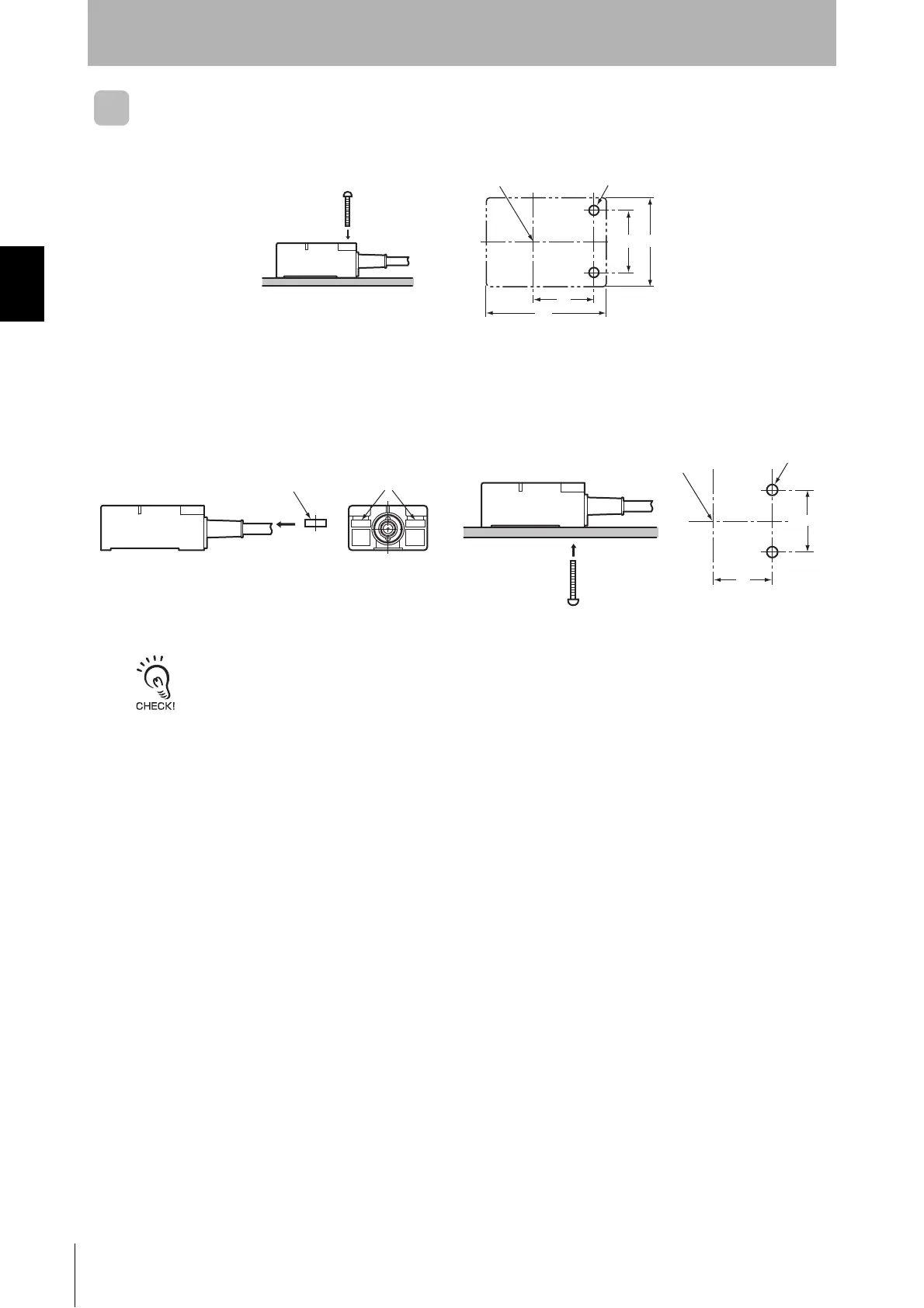

Installation from the Front
Installation from the Back
Insert the nuts that come with the Antenna into sections A.
Securely tighten screws to a torque of 1.2 N·m.
Coil center
Two, M4
40
27
53
28
±0.2
Coil center
Two,
4.5 dia.
40
27
28
±0.2
Nut
A
