SECTION 1
Antennas
RFID System
User's Manual
SECTION 1

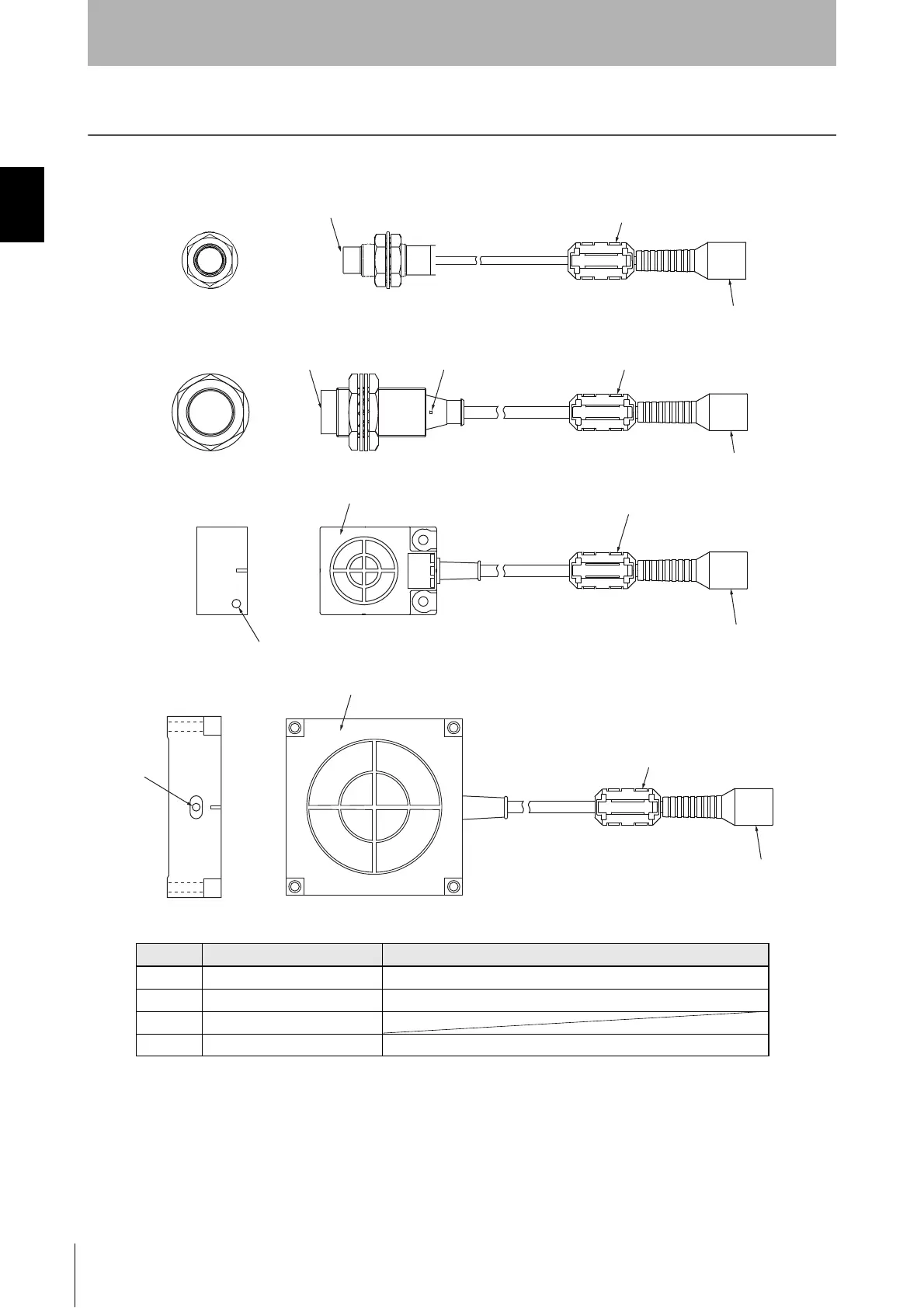

Product Overview
Antennas
(2) Communications
sufrace
(2) Communications surface
(2) Communications surface
(3) Ferrite core
(3) Ferrite core
(3) Ferrite core
(3) Ferrite core
(1) Operation indicator
(1) Operation indicator
(1) Operation
indicator
(4) Connector
(4) Connector
(4) Connector
(4) Connector
(2) Communications surface
 V680-HS51
 V680-HS52
 V680-HS63
 V680-HS65
No. Name Description
1 Operation indicator Lights when a signal is transmitted.
2 Communications surface Mounted facing the RF Tags.
3 Ferrite core
4 Connector Connects to the FL Remote ID.
