17
RFID System
User's Manual
SECTION 1
Part Names and Functions
SECTION 1
Product Overview

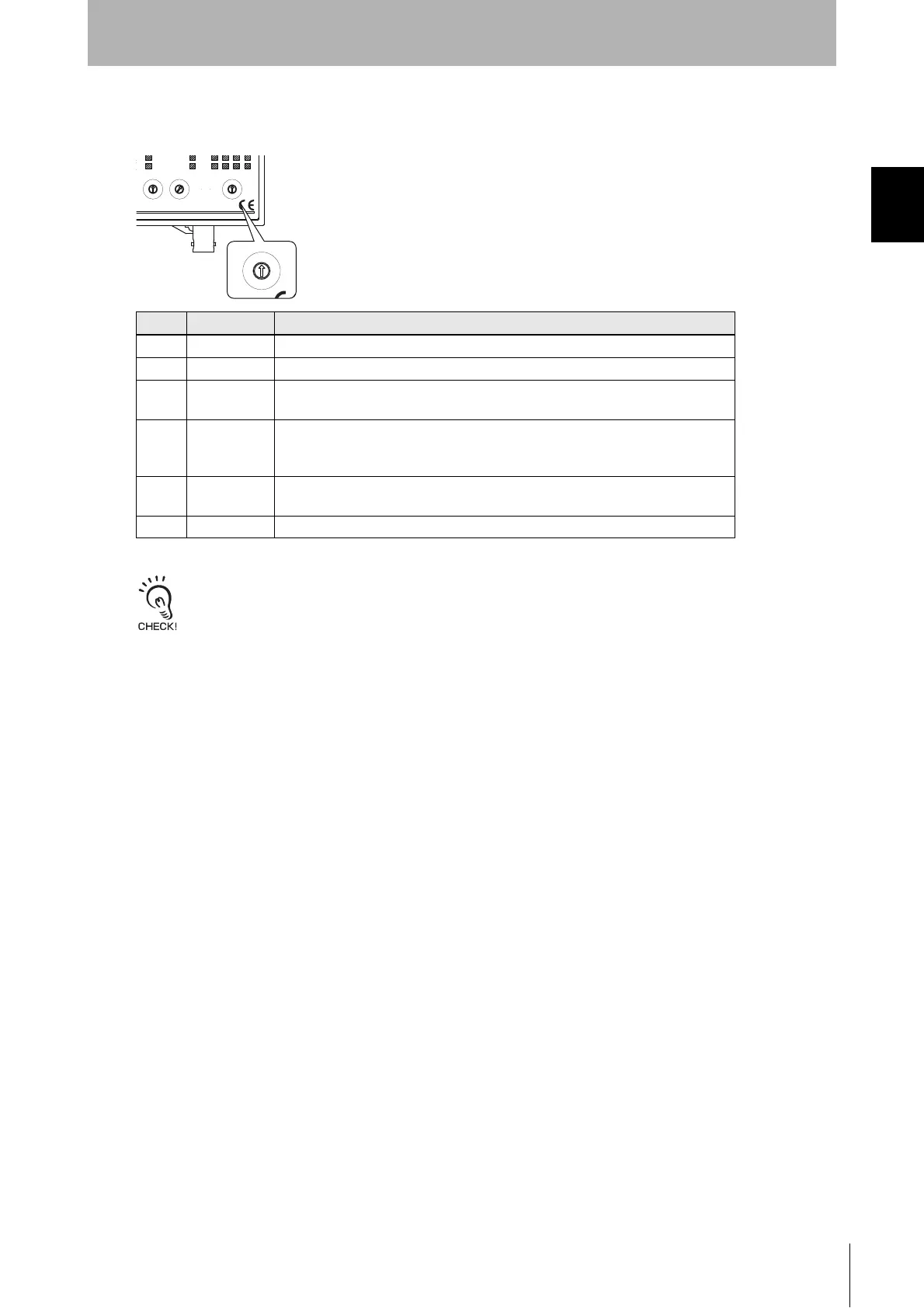

■ Mode Switch
The mode switch sets the FL Remote ID operation mode.
Turn the power OFF before setting the mode switch. The mode that is set when the power is turned ON will be valid.
No. Item Description
0 Trigger The input signal triggers communications and outputs the result.
1 Auto mode Communications are repeatedly executed and the results are output.
2 Test mode Operation can be checked while disconnected from the Master Unit by reading 4
bytes from address 00.
3 Noise level
measure-
ment mode
The noise conditions around the Antenna can be measured without connecting to
the Master Unit.
4 E-paper label
mode
For e-paper label developed by TOPPAN FORMS co.,ltd. the data can be read
from and written to displayed information can be rewritten.
Other - (A mode setting error will occur if any other settings are made.)
OFF
FSM RFID
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
MRON Corporation
OURCE : 24VDC 0.3A
MADE IN JAPAN
X10
1
X10
0
RMT NORM/ERR 3 2 1 0
NODE No. MODE
To Next Page
